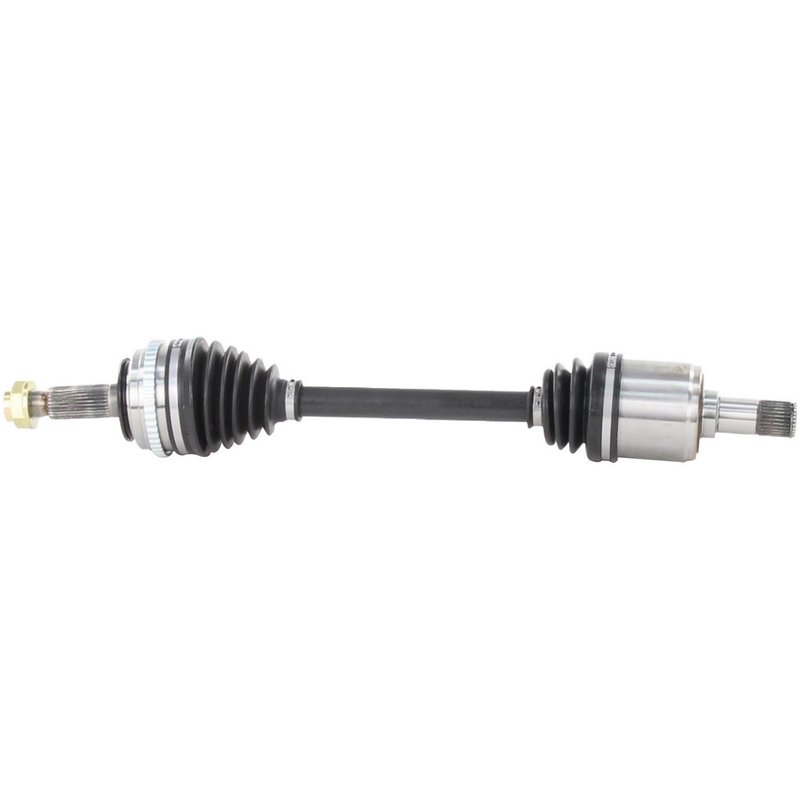

TrakMotive HO-8065 CV Axle Shaft - Front Left

TrakMotive CV Axle Shaft HO-8065 Overview

The TrakMotive CV Axle Shaft HO-8065 is engineered to provide reliable driveline performance for vehicles requiring precise fitment and durability. Designed with key features such as a neoprene boot and a 50-tooth ABS ring, this axle shaft supports smooth power transfer and ABS functionality.

• Includes a 50-tooth ABS ring with a toothed design for accurate wheel speed sensing
• Comes with a neoprene boot for enhanced durability and protection against contaminants
• Equipped with a hex head axle nut (M24*1.5 thread size) with stake locking for secure installation
• Features male inboard joint and conventional outboard joint types for compatibility with specific driveline setups
• Overall compressed length of 25.2 inches (640 mm) for precise fitment

Detailed Features of the TrakMotive CV Axle Shaft

The TrakMotive CV Axle Shaft HO-8065 is part of the CV Axle Shaft product line, which focuses on delivering dependable constant velocity joints and shafts designed to maintain smooth torque transfer and vehicle stability. This axle shaft includes a 50-tooth ABS tone ring, which is essential for vehicles equipped with ABS systems, ensuring accurate wheel speed data. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The axle nut included is a hex type with a 35.6 mm hex size and a stake locking mechanism, providing a secure and vibration-resistant fit. The inboard joint uses a male connection style with 29 splines, while the outboard joint is conventional with 28 splines, matching specific vehicle driveline configurations.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts causing vibration or noise during acceleration
• Restores proper ABS sensor function with the included 50-tooth ABS tone ring
• Eliminates grease leaks and joint contamination with durable neoprene boot
• Resolves axle nut loosening issues with stake locking axle nut design
• Ensures correct driveline alignment and torque transfer with precise spline counts and shaft length

Installation Notes and Tips

• Verify vehicle compatibility by matching spline counts and overall compressed length (25.2 inches)
• Use proper torque specifications for the M24*1.5 axle nut and ensure stake locking is properly engaged
• Inspect surrounding components such as wheel bearings and suspension parts during installation
• Handle the neoprene boot carefully to avoid damage during installation
• Confirm ABS sensor alignment with the toothed ABS ring for accurate system operation

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HO-8065 is manufactured to meet OEM standards for fit, form, and function. Each unit is new and includes all necessary components such as the axle nut and ABS tone ring. While specific warranty details should be confirmed with the supplier, TrakMotive products typically come with a limited warranty covering defects in materials and workmanship to ensure reliability and customer confidence.
