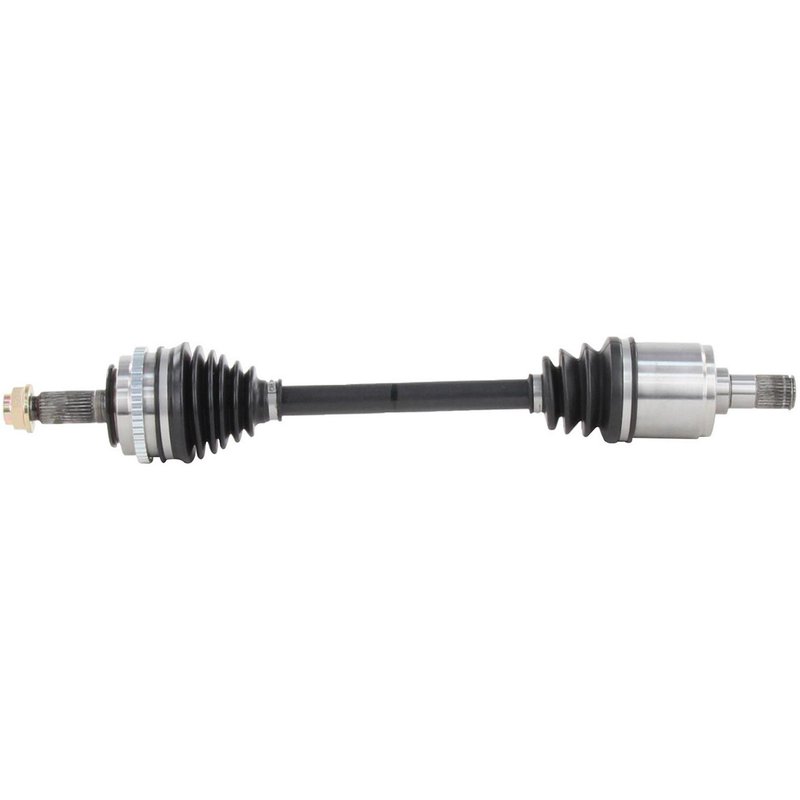

TrakMotive HO-8067 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive CV Axle Shaft HO-8067 for Acura Legend

The TrakMotive CV Axle Shaft HO-8067 is designed specifically for Acura Legend models, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Acura Legend vehicles
• Includes ABS tone ring with 50 toothed abs ring teeth
• Neoprene boot material for enhanced durability and protection
• Hex head axle nut included with stake locking type
• Overall compressed length of 25.37 inches (644.5 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity axle components engineered for precise fit and function. This line emphasizes OEM-style specifications, including ABS tone rings and durable neoprene boots, to maintain vehicle safety and driveline integrity. The HO-8067 model exemplifies these standards with its detailed design features tailored for Acura Legend applications.

Technical Specifications and Features

The HO-8067 CV axle shaft includes a 50-tooth ABS ring with a toothed design, ensuring accurate wheel speed sensor readings. The axle nut is a hex head type, measuring 1 2/5 inches (35.6 mm) across flats, with a height of 1 inch (23 mm) and a length of 1 1/2 inches (37.53 mm). It uses a stake locking mechanism and has an M24x1.5 thread size for secure installation. The neoprene boot material offers resistance to wear and environmental factors, while the inboard joint features a male connection style with 29 splines, and the outboard joint is conventional with 28 splines. The overall compressed length of 25.37 inches (644.5 mm) ensures proper fitment within the Acura Legend driveline system.

Applications and Problem Solving

• Replaces worn or damaged CV axle shafts on Acura Legend models
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boots
• Ensures secure wheel attachment with included hex axle nut

Installation Notes and Tips

When installing the TrakMotive HO-8067 CV axle shaft, verify compatibility with your Acura Legend model year and drivetrain configuration. Use the included hex axle nut with the specified M24x1.5 thread size and stake locking method to secure the axle properly. Inspect the neoprene boots for any damage during installation and ensure the ABS tone ring is correctly positioned for accurate sensor readings. Proper torque specifications should be followed to maintain driveline safety and performance.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HO-8067 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes an ABS tone ring and a stake locking axle nut to maintain vehicle safety systems. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and fitment for Acura Legend vehicles.
