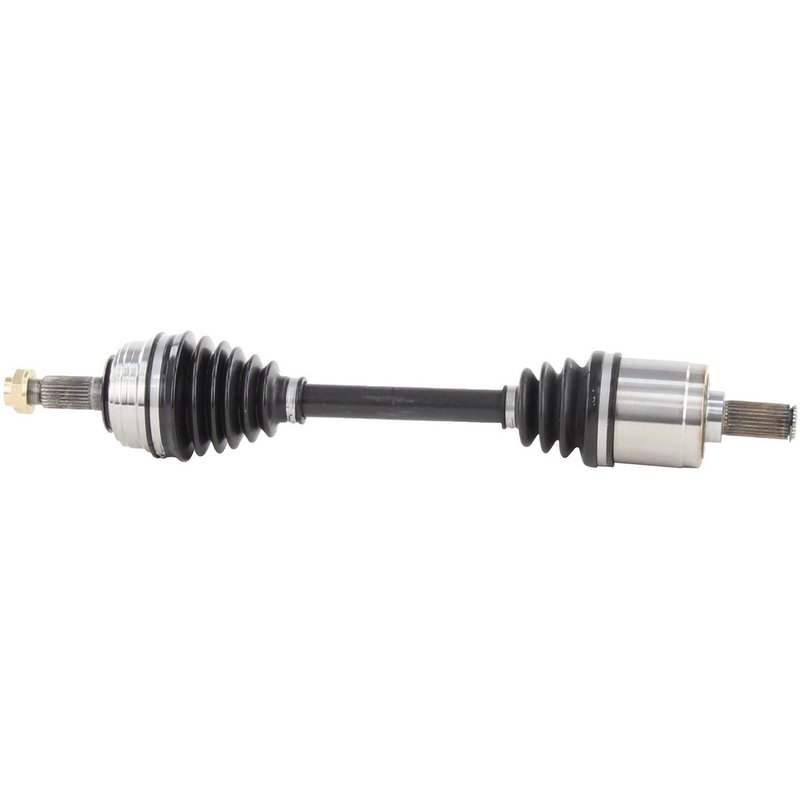

TrakMotive HO-8068 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8068 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.07 |
| Overall Compressed Length (mm) | 586 |
| Product line | CV Axle Shaft |
| Fits | Acura · 4 vehicles |
New replacement shaft. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot. Durable boot material helps protect the joint from wear and contamination.
Axle nut included. Comes with the axle nut needed for installation.
Cross-references Cardone New 66-4025, Cardone Reman 60-4025 and FEL-PRO 1601 for the same application. See all 20.
TrakMotive HO-8068 CV Axle Shaft for Acura Integra
The TrakMotive HO-8068 is a new CV axle shaft for front left applications on select 1986-1989 Acura Integra models. Built as a direct driveline replacement, it is specified with a 23.07-inch compressed length, 27 inboard splines, and 26 outboard splines for accurate fitment.
Key Features
- Fits 1986-1989 Acura Integra, front left
- TrakMotive CV Axle Shaft, part number HO-8068
- New axle assembly with neoprene boot material
- Male inboard shaft connection style
- Conventional outboard joint and shaft connection style
- Axle nut included with M22 x 1.5 thread, 31.8 mm hex size, and stake locking type
- No ABS tone ring included
- Overall compressed length: 23.07 in. (586 mm)
Product Details
TrakMotive HO-8068 is part of the CV Axle Shaft line, a driveline and axle component category focused on replacement half shafts for front-wheel-drive service. This axle is built for the front left position on 1986-1989 Acura Integra models and uses the listed spline counts, joint styles, and compressed length to match the application. The included axle nut and specified thread and hex dimensions help support correct service replacement on the Acura Integra platform. This part cross-references Cardone New 66-4025 and Cardone Reman 60-4025 for the same application.
Common Repair Uses
- Replacing a worn or noisy front left CV axle on an Acura Integra
- Addressing clicking or popping during turns caused by joint wear
- Restoring driveline engagement after axle shaft damage
- Correcting vibration from a failing half shaft assembly
- Repairing torn boot-related contamination and grease loss
Installation Notes
Verify front left fitment against the vehicle’s year and configuration before installation. Confirm spline counts, axle nut thread size, and compressed length against the removed part to ensure proper match. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive lists this axle as a new component and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing. The HO-8068 also carries a limited lifetime warranty from the manufacturer.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1989 | Acura | Integra | Front Left | CV Axle Shaft |
| 1988 | Acura | Integra | Front Left | CV Axle Shaft |
| 1987 | Acura | Integra | Front Left | CV Axle Shaft |
| 1986 | Acura | Integra | Front Left | CV Axle Shaft |
