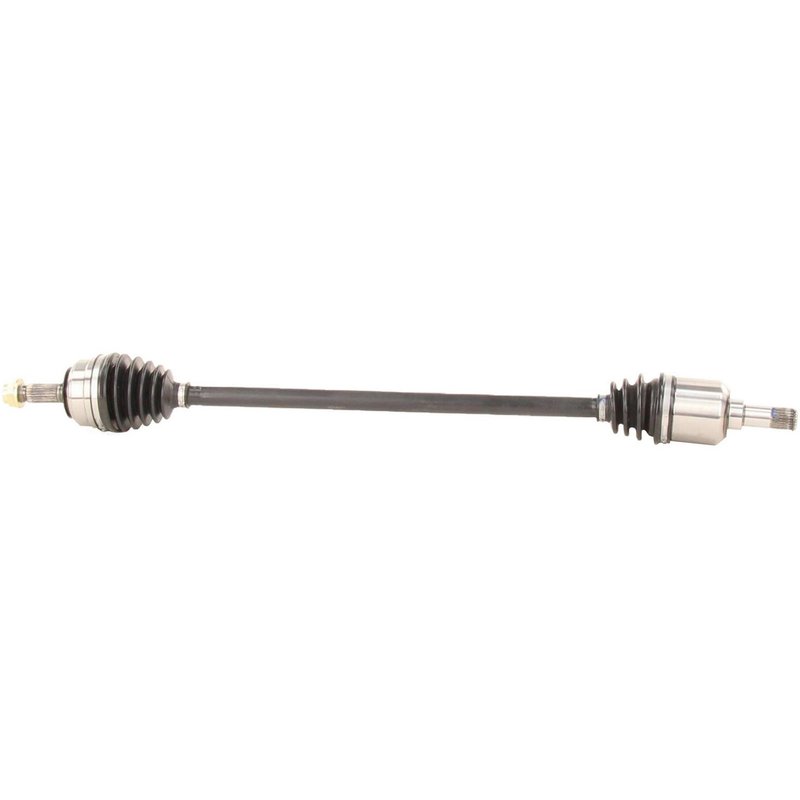

TrakMotive HO-8071 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8071 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 23 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 35.63 |
| Overall Compressed Length (mm) | 905 |
| Product line | CV Axle Shaft |
| Fits | Honda · 4 vehicles |
New axle shaft. Built as a direct replacement for driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Conveniently supplied with a stake-locking hex nut.
Cross-references Cardone New 66-4009, Cardone Reman 60-4009 and Carlson 7037 for the same application. See all 20.
Honda CRX Front Left CV Axle Shaft
TrakMotive HO-8071 is a new CV axle shaft for the front left position on 1988-1991 Honda CRX HF applications. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the specified vehicle fitment.
The TrakMotive CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, with application-specific fitment and OE-style connection details. HO-8071 includes the axle nut and uses a hex-head, stake-locking M22 x 1.5 nut specification for the listed Honda CRX application.
Key Features
- Fits 1988-1991 Honda CRX, front left
- TrakMotive part number HO-8071
- New CV axle shaft for driveline repair
- Neoprene boot material for joint protection
- Male inboard shaft connection style
- Conventional outboard joint type
- Axle nut included with M22 x 1.5 thread size
- No ABS tone ring included
- Overall compressed length: 35.63 in. (905 mm)
- Inboard splines: 25; outboard splines: 23
Product Details
HO-8071 is a direct replacement CV axle shaft for the front left side of the 1988-1991 Honda CRX HF. It is engineered as a new assembly with a 35.63-inch compressed length, 25 inboard splines, and 23 outboard splines to match the listed application. The axle uses a male inboard shaft connection and a conventional outboard shaft connection, and it does not include an ABS tone ring.
This part cross-references Cardone New 66-4009 and Carlson 7037 for the same application. If you are searching for a Honda CRX front left CV axle shaft, Honda CRX HF axle replacement, or TrakMotive HO-8071, this part matches the confirmed fitment shown here.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Torn boot conditions that expose the joint to contamination
- Axle play caused by spline or joint wear
- Driveline noise after axle failure on the front left side
Installation Notes
Verify the vehicle is a 1988-1991 Honda CRX HF with front left application before installation. Confirm spline count, axle length, and axle nut thread size against the removed part. Use the included axle nut with the specified M22 x 1.5 thread and stake-locking design, and inspect surrounding suspension and hub components for wear before completing the repair.
Quality Assurance
TrakMotive lists HO-8071 as a new CV axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. The manufacturer also backs this part with a limited lifetime warranty.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 1991 | Honda | CRX | HF | Front Left | HF; CV Axle Shaft |
| 1990 | Honda | CRX | HF | Front Left | HF; CV Axle Shaft |
| 1989 | Honda | CRX | HF | Front Left | HF; CV Axle Shaft |
| 1988 | Honda | CRX | HF | Front Left | HF; CV Axle Shaft |
| No rows match your filter. | |||||
