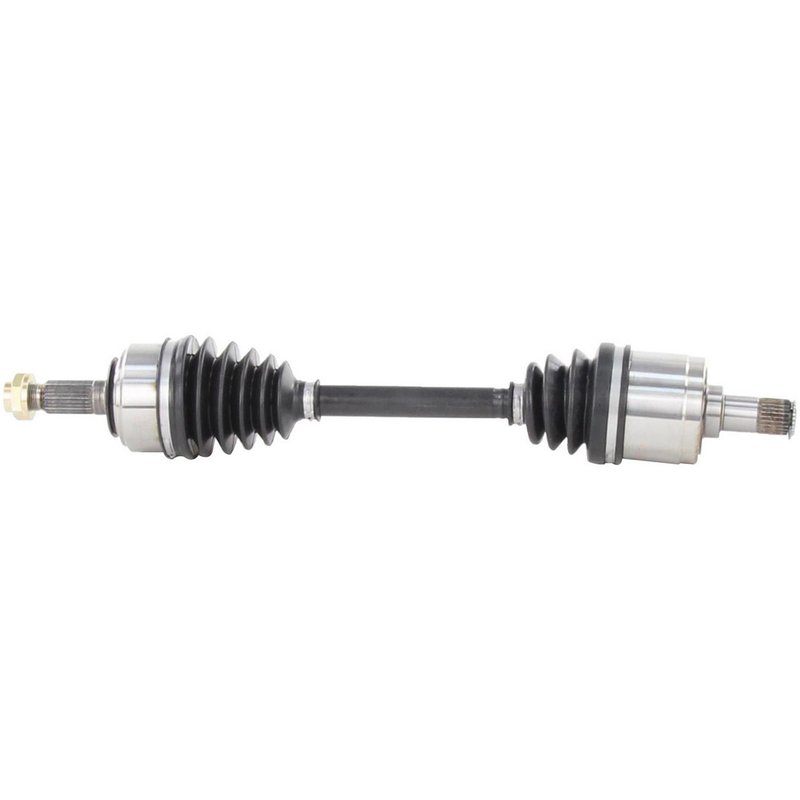

TrakMotive HO-8074 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8074 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.68 |
| Overall Compressed Length (mm) | 576 |
| Product line | CV Axle Shaft |
| Fits | Honda · 3 vehicles |
New unit. Built as a fresh CV axle shaft for dependable driveline replacement.
Neoprene boot. Helps resist wear while keeping the joint protected and flexible.
Includes axle nut. Comes with the hardware needed for a cleaner installation.
Cross-references Cardone Reman 60-4055, Carlson 7062 and TrakMotive HO-8074 for the same application. See all 12.
Honda Civic Front Right CV Axle Shaft
TrakMotive HO-8074 is a new CV axle shaft for the front right position on 1985-1987 Honda Civic models. It is built for direct driveline replacement on the specified application and includes the axle nut for service convenience.
Key Features
- Fits 1985-1987 Honda Civic, front right
- TrakMotive CV Axle Shaft, part number HO-8074
- New replacement axle for driveline service
- Neoprene boot material for joint protection
- Male inboard shaft connection style
- Conventional outboard joint type
- 27 inboard splines and 26 outboard splines
- Axle nut included; M22 x 1.5 thread, stake-lock type
- Overall compressed length: 22.68 in. (576 mm)
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft HO-8074 is specified for the front right side of 1985-1987 Honda Civic vehicles. The axle is a new unit with a neoprene boot, male inboard connection, and conventional outboard joint design. It measures 22.68 inches compressed length and uses a 27-spline inboard / 26-spline outboard configuration. TrakMotive identifies this part as an OE-style driveline replacement for the listed Honda Civic fitment, and the included axle nut is sized M22 x 1.5 with a 31.8 mm hex.
This part cross-references Cardone Reman 60-4055 and Carlson 7062 for the same application. HO-8074 is also referenced under interchange numbers used in the aftermarket for this Honda Civic front right axle application.
Common Repair Symptoms
- Clicking or popping during turns from a worn outer CV joint
- Vibration under acceleration from a damaged axle shaft
- Grease leakage from a torn CV boot
- Clunking or looseness in the driveline
- Loss of smooth power transfer to the front right wheel
Installation Notes
Verify spline count, compressed length, and axle nut thread size before installation. Inspect the hub, seals, and surrounding suspension components for wear before fitting the new axle. Because this axle does not include an ABS tone ring, confirm the vehicle uses the correct non-ABS configuration or that the application notes match your vehicle setup. Use the included axle nut and follow the manufacturer service procedure for torque and staking requirements.
Quality Assurance
TrakMotive states that this CV axle shaft is produced by an ISO 9001:1007 and TS 16949:2009 certified company. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1987 | Honda | Civic | Base | Wagon | 4WD | Front Right | CV Axle Shaft |
| 1986 | Honda | Civic | Base | Wagon | 4WD | Front Right | CV Axle Shaft |
| 1985 | Honda | Civic | Base | Wagon | 4WD | Front Right | CV Axle Shaft |
