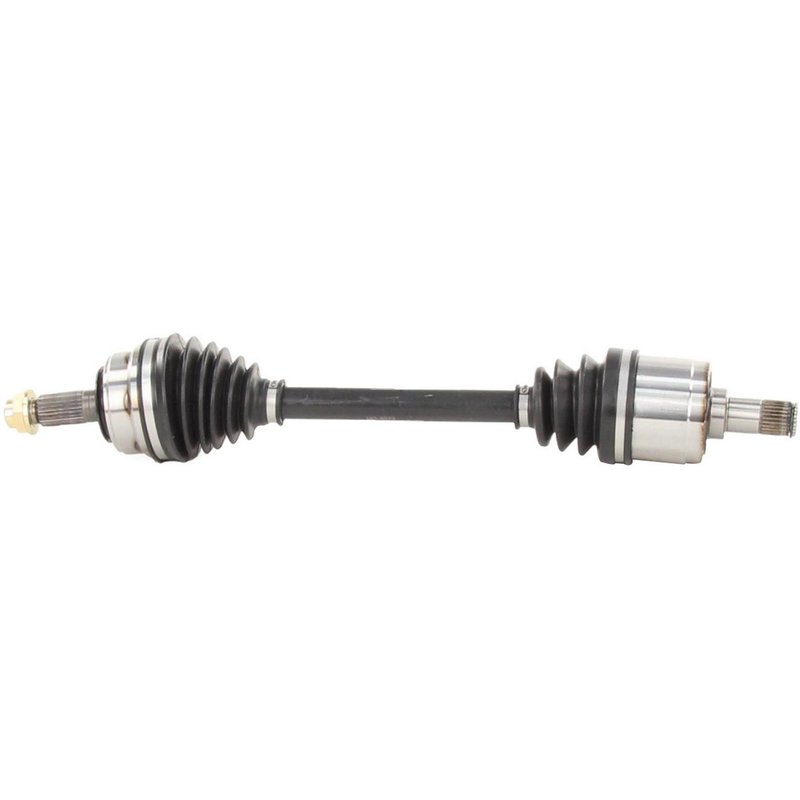

TrakMotive HO-8079 CV Axle Shaft - Front Right

CV Axle Shaft for Honda Prelude Front Right

TrakMotive HO-8079 is a new CV axle shaft for the front right position on 1985-1987 Honda Prelude models. It is built for direct replacement service with the correct spline counts, axle nut specification, and overall compressed length for the listed application.

Key Features

• Fits 1985-1987 Honda Prelude, front right
• New CV axle shaft for driveline and axle service
• Male inboard shaft connection with conventional outboard joint
• 27 inboard splines and 26 outboard splines
• Neoprene boot material for joint protection
• Includes axle nut with M22 x 1.5 thread, stake locking type
• Overall compressed length: 24.53 in. (623 mm)
• No ABS tone ring included

Product Details

TrakMotive HO-8079 is a CV axle shaft from the TrakMotive CV Axle Shaft line, built for front right fitment on the 1985, 1986, and 1987 Honda Prelude. The shaft uses a male inboard joint and a conventional outboard joint, with a neoprene boot and the specified spline counts to match the original driveline layout. The included axle nut is a hex-style, stake-lock design with M22 x 1.5 threads and a 31.8 mm hex size. This part cross-references Cardone New 66-4027 for the same application.

What This Part Helps Address

• Clicking or popping during turns from worn CV joints
• Vibration or shudder during acceleration
• Grease leakage from a damaged axle boot
• Excessive play or noise in the front axle assembly
• Driveline wear on a 1985-1987 Honda Prelude front right axle

Installation Notes and Tips

Verify front right placement, spline count, and axle nut thread size before installation. Confirm whether the vehicle is equipped for ABS-related components, since this axle does not include an ABS tone ring. Always torque the axle nut to the vehicle specification and stake the nut as required after final tightening. Check hub, bearing, and suspension condition during axle replacement to avoid repeat noise or vibration.

Quality Assurance

TrakMotive states that this axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company.
