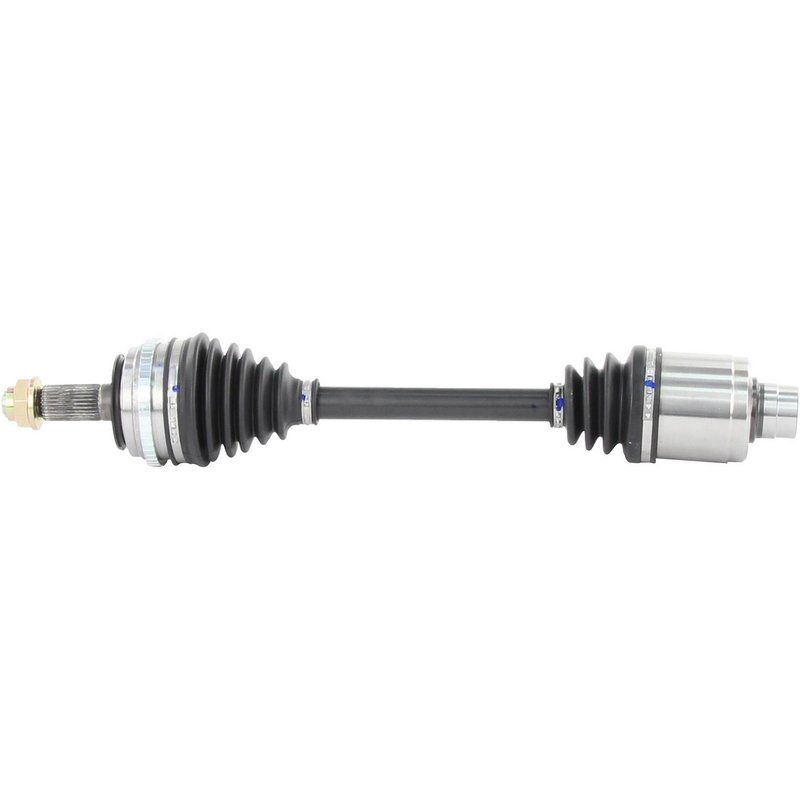

TrakMotive HO-8087 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8087 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27-2T |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.87 |
| Overall Compressed Length (mm) | 581 |
| Product line | CV Axle Shaft |
| Fits | Honda · 10 vehicles |
New axle shaft. Built as a fresh replacement, not remanufactured.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Ready for applications that use a toothed sensor ring.
Cross-references Cardone New 66-4162, TrakMotive HO-8087 and 40-18075S for the same application. See all 29.
TrakMotive HO-8087 CV Axle Shaft
TrakMotive HO-8087 is a new CV axle shaft for the front left position on select Honda Prelude models. It is built for 1997-2001 Honda Prelude applications and includes the axle nut and ABS tone ring details needed for the listed fitment.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8087
- Fits 1997-2001 Honda Prelude, front left
- New axle shaft construction
- Neoprene boot material
- Female inboard joint and conventional outboard joint
- ABS tone ring included with 50-tooth toothed ring
- Axle nut included with M24 x 1.5 thread size and stake locking type
- Overall compressed length: 22.87 in. (581 mm)
Product Details
This TrakMotive CV axle shaft is built for the front left side of the Honda Prelude and is specified for 1997-2001 model years. The HO-8087 uses a female inboard shaft connection, a conventional outboard connection, and a neoprene boot to support driveline service in the listed application. It also includes a toothed ABS tone ring with 50 teeth, making it relevant for vehicles equipped with ABS where noted by the fitment data. TrakMotive HO-8087 is a direct replacement-style driveline component for Honda Prelude front axle service.
This part cross-references Cardone New 66-4162 for the same application.
Common Repair Uses
- Restores driveline function when the original front left axle is worn or damaged
- Addresses clicking or popping during turns caused by CV joint wear
- Helps correct vibration from a failing axle shaft assembly
- Replaces a torn boot or contaminated joint assembly on the Honda Prelude
- Supports ABS-equipped front axle service where the tone ring is required
Installation Notes
Verify spline count, axle nut thread size, and ABS ring details against the vehicle before installation. This axle uses 27-2T inboard splines and 28 outboard splines, with a hex axle nut and stake-style locking design. Confirm the front left position and the listed compressed length match the original part before assembly on the Honda Prelude.
Quality Assurance
TrakMotive states this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production standards for the HO-8087.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2001 | Honda | Prelude | Type SH | Front Left | CV Axle Shaft |
| 2001 | Honda | Prelude | Base | Front Left | CV Axle Shaft |
| 2000 | Honda | Prelude | Type SH | Front Left | CV Axle Shaft |
| 2000 | Honda | Prelude | Base | Front Left | CV Axle Shaft |
| 1999 | Honda | Prelude | Type SH | Front Left | CV Axle Shaft |
| 1999 | Honda | Prelude | Base | Front Left | CV Axle Shaft |
| 1998 | Honda | Prelude | Type SH | Front Left | CV Axle Shaft |
| 1998 | Honda | Prelude | Base | Front Left | CV Axle Shaft |
| 1997 | Honda | Prelude | Type SH | Front Left | CV Axle Shaft |
| 1997 | Honda | Prelude | Base | Front Left | CV Axle Shaft |
