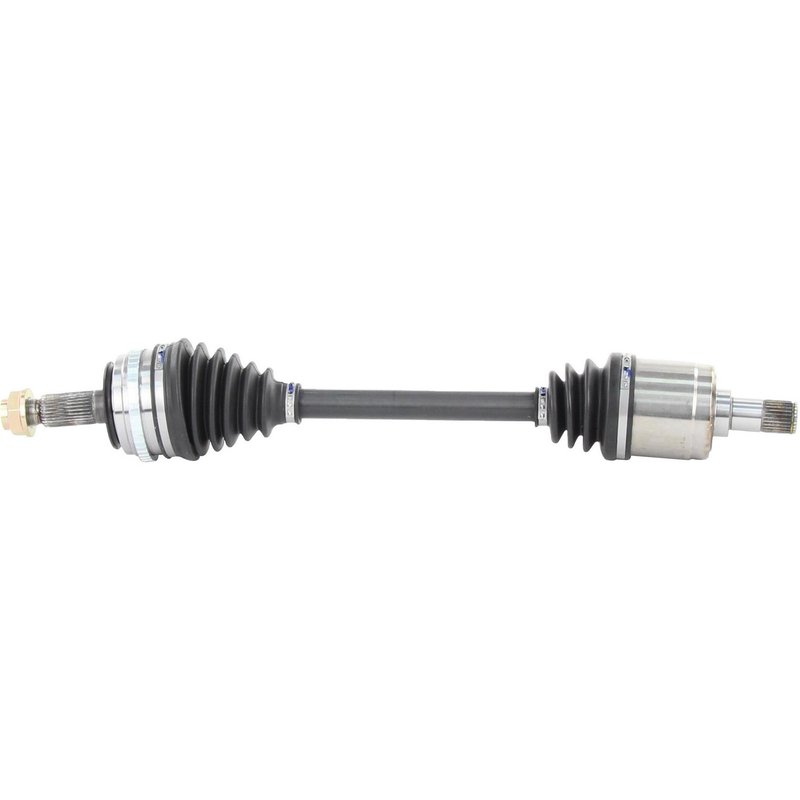

TrakMotive HO-8089 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8089 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.16 |
| Overall Compressed Length (mm) | 639 |
| Product line | CV Axle Shaft |
| Fits | Honda · 5 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for durable sealing.
ABS tone ring included. Built with a toothed ring and 50 teeth for ABS applications.
Axle nut included. Comes with a hex, stake-lock nut for easier installation.
Cross-references Cardone New 66-4173, Cardone Reman 60-4172 and Cardone Reman 60-4173 for the same application. See all 28.
Honda CR-V Front Right CV Axle Shaft
TrakMotive HO-8089 is a new CV axle shaft for the front right position on 1997-2001 Honda CR-V models. It is built for direct replacement service with the correct spline counts, ABS tone ring, and axle nut specifications for the listed application.
Key Features
- Fits 1997-2001 Honda CR-V, front right
- TrakMotive CV Axle Shaft, part number HO-8089
- New axle assembly with neoprene boot material
- Inboard male shaft connection with 27 splines
- Conventional outboard joint with 28 splines
- ABS tone ring included with 50-tooth toothed ring
- Axle nut included with M24 x 1.5 thread size, 35.6 mm hex size, and stake locking type
- Overall compressed length: 25.16 in. (639 mm)
Product Details
This TrakMotive CV axle shaft is specified for the front right side of the Honda CR-V across the 1997, 1998, 1999, 2000, and 2001 model years. HO-8089 uses a male inboard shaft connection, a conventional outboard joint, and the listed spline counts to match the original driveline configuration for the application. The included ABS tone ring and axle nut support proper replacement on vehicles equipped for this setup, while the neoprene boot material helps protect the joint assembly during normal operation.
TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. HO-8089 is a new replacement axle built for the Honda CR-V front right application and is backed by the brand’s manufacturing standards, including ISO 9001:1007 and TS 16949:2009 certification.
This part cross-references Cardone New 66-4173 for the same application.
Common Problems This Part Addresses
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration caused by axle wear
- Torn or deteriorated axle boot condition
- Excessive driveline play from a damaged front right axle shaft
- ABS-related fitment concerns when the correct tone ring is required
Installation Notes and Tips
Verify the vehicle’s front right axle configuration, spline count, and axle nut thread size before installation. Confirm ABS tone ring requirements against the original axle, since ABS axles fit non-ABS applications unless otherwise noted. Inspect the hub, seals, and surrounding suspension components during replacement to help ensure a proper repair on the Honda CR-V.
Quality Assurance
TrakMotive lists this CV axle shaft under a limited lifetime warranty and manufactures to ISO 9001:1007 and TS 16949:2009 certified standards.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2001 | Honda | CR-V | Automatic | Front Right | CV Axle Shaft |
| 2000 | Honda | CR-V | Automatic | Front Right | CV Axle Shaft |
| 1999 | Honda | CR-V | Automatic | Front Right | CV Axle Shaft |
| 1998 | Honda | CR-V | Automatic | Front Right | CV Axle Shaft |
| 1997 | Honda | CR-V | Automatic | Front Right | CV Axle Shaft |
