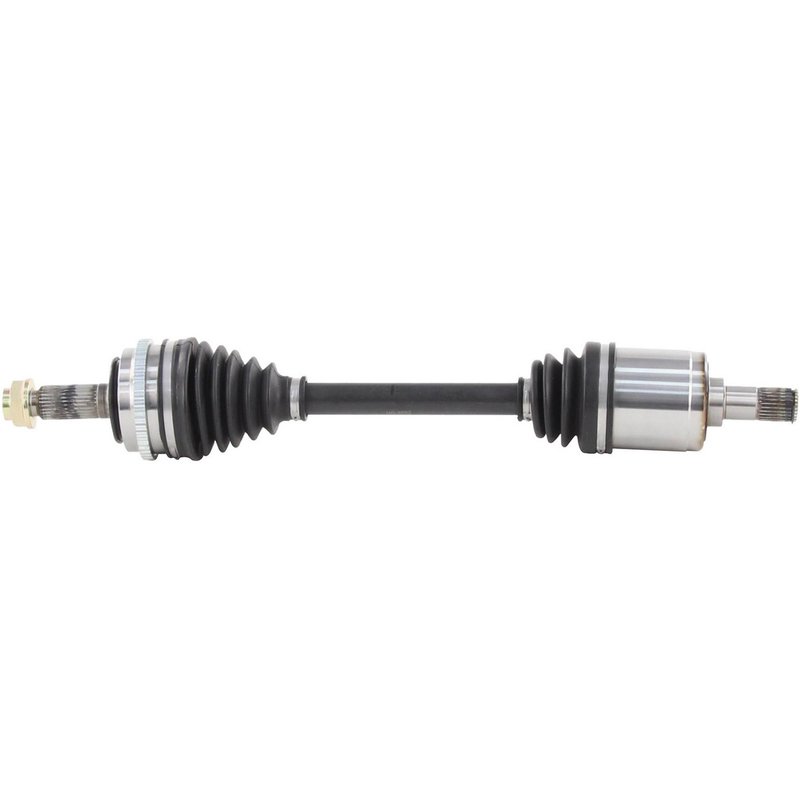

TrakMotive HO-8092 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HO-8092

The TrakMotive CV Axle Shaft HO-8092 is engineered for reliable driveline performance in select Acura and Honda vehicles. Designed specifically for models such as the Accord, CL, and Prelude, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Acura and Honda Accord, CL, and Prelude models
• Includes a neoprene boot for enhanced protection against contaminants
• Equipped with a 50-tooth ABS ring and included tone ring for accurate wheel speed sensor readings
• Features a hex head axle nut with stake locking for secure installation
• Overall compressed length of 24.45 inches (621 mm) for exact fitment

Detailed Product Features and Specifications

This TrakMotive CV Axle Shaft from the CV Axle Shaft product line is a new, direct replacement part designed to meet OEM specifications. It features a male inboard joint type with 27 splines and a conventional outboard joint with 28 splines, ensuring compatibility with the drivetrain components of Acura and Honda vehicles. The neoprene boot material provides resistance to wear and environmental damage, extending the service life of the axle shaft.

The included ABS ring is a toothed type with 50 teeth, and the tone ring is included to maintain proper ABS sensor function. The axle nut is a hex head type measuring 1 2/5 inches (35.6 mm) across the flats, with a height of 1 inch (23 mm) and a length of 1 1/2 inches (37.53 mm). It uses an M24 x 1.5 thread size and features a stake locking mechanism to prevent loosening during operation.

Applications and Common Repair Uses

• Replacement of worn or damaged CV axle shafts on Acura Accord, CL, and Prelude models
• Restoring proper ABS sensor function by replacing the ABS tone ring and ring assembly
• Addressing axle shaft joint wear or boot damage to prevent grease leakage and contamination
• Resolving driveline vibrations or clicking noises caused by failing CV joints
• Repairing axle nut thread or locking issues to ensure secure wheel attachment

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HO-8092, ensure the axle nut is torqued to manufacturer specifications and properly staked to secure the locking mechanism. Inspect the neoprene boot for any damage during installation and verify the ABS tone ring is correctly positioned to maintain sensor accuracy. Use appropriate tools for the hex head axle nut, sized at 1 2/5 inches (35.6 mm), to avoid rounding off the nut during tightening or removal.

Quality Assurance and Warranty Information

TrakMotive CV Axle Shafts are manufactured to meet or exceed OEM standards for fit, form, and function. This part is new and includes all necessary components such as the axle nut and ABS tone ring. While specific warranty details are not provided here, TrakMotive products typically come with a limited warranty against defects in materials and workmanship. Verify warranty terms with the supplier or manufacturer upon purchase.
