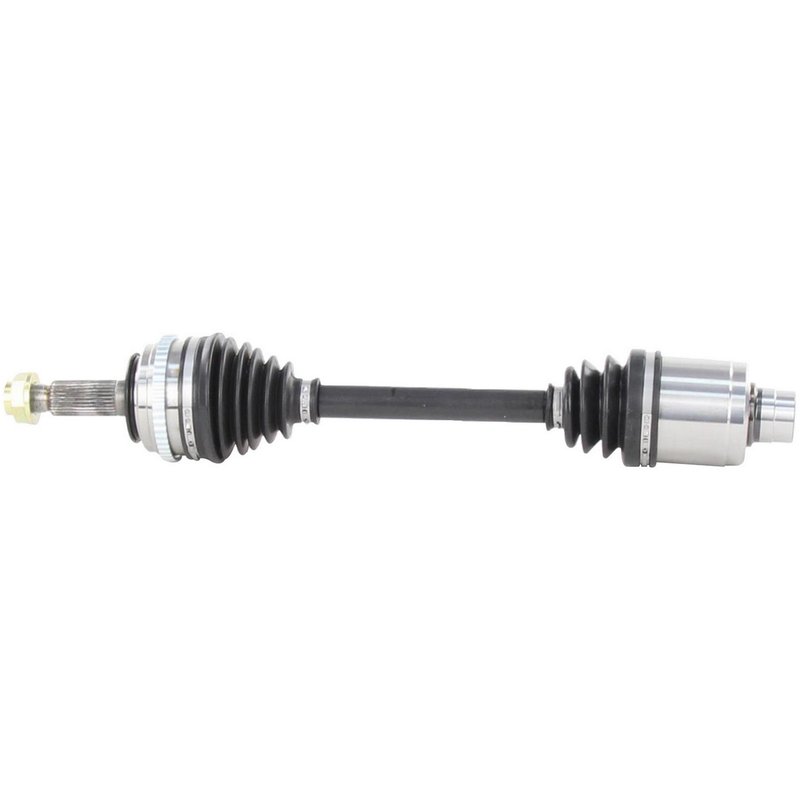

TrakMotive HO-8098 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HO-8098 for Honda Prelude

The TrakMotive CV Axle Shaft HO-8098 is designed specifically for Honda Prelude models, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Honda Prelude vehicles
• Includes a 50-tooth ABS ring with a toothed design
• Comes with a neoprene boot for enhanced protection
• Equipped with a hex head axle nut (M24*1.5 thread size)
• Overall compressed length of 22.68 inches (576 mm)
• Inboard joint type: Female with 27-2t splines
• Outboard joint type: Conventional with 28 splines
• Axle nut locking type: Stake for secure fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for various vehicle applications. This line emphasizes quality materials such as neoprene boots and includes essential hardware like axle nuts to provide a complete replacement solution. The HO-8098 part number is part of this line, ensuring it meets the specific requirements of Honda Prelude drivetrains.

Technical Specifications and Features

The HO-8098 CV axle shaft features a 50-tooth ABS ring with a toothed design, which is included to maintain proper ABS sensor function. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The axle nut included is a hex head type with a 1 2/5 inch (35.6 mm) hex size and a length of 1 1/2 inches (37.53 mm), secured with a stake locking mechanism to prevent loosening during operation. The inboard joint uses a female connection style with 27-2t splines, while the outboard joint is conventional with 28 splines, ensuring proper engagement and torque transfer. The overall compressed length of 22.68 inches (576 mm) fits the Honda Prelude's driveline specifications.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Honda Prelude models
• Restoring ABS sensor functionality with the included toothed ABS ring
• Eliminating axle vibration or clicking noises caused by joint wear
• Addressing grease leaks or boot damage with durable neoprene material
• Ensuring secure axle nut fitment to prevent loosening or failure

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HO-8098 on a Honda Prelude, ensure the axle nut is torqued to manufacturer specifications and the stake locking is properly engaged to secure the nut. Inspect the ABS tone ring alignment to maintain sensor accuracy. Use appropriate tools for the hex head axle nut (35.6 mm) and verify the neoprene boot is seated correctly to prevent contamination. It is recommended to check spline engagement on both inboard and outboard joints for a proper fit.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. TrakMotive provides quality assurance through rigorous manufacturing controls. While specific warranty details are not provided here, the product is designed to offer reliable service life when installed according to guidelines.
