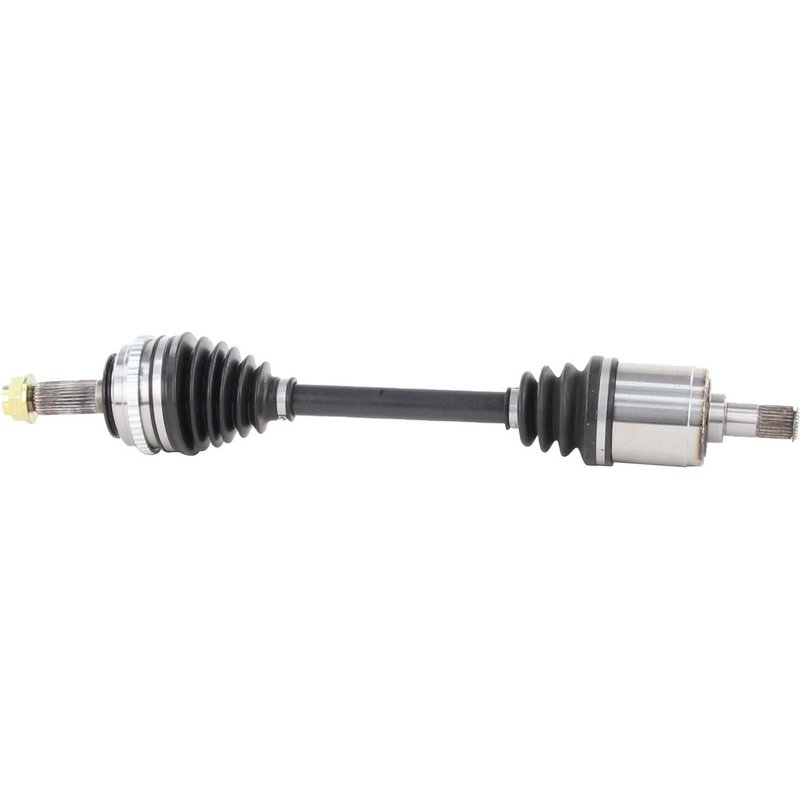

TrakMotive HO-8099 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HO-8099 for Honda Prelude

The TrakMotive CV Axle Shaft HO-8099 is engineered specifically for Honda Prelude models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Honda Prelude vehicles
• Includes a neoprene boot for durability and protection
• Equipped with a 50-tooth ABS ring and included tone ring
• Features a hex head axle nut with stake locking type
• Overall compressed length of 24.76 inches (629 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line includes shafts with precise spline counts and connection styles to match specific vehicle requirements. The HO-8099 model features a male inboard joint and conventional outboard joint, ensuring compatibility with the Honda Prelude’s driveline system.

Technical Specifications and Features

This CV axle shaft includes a 50-tooth toothed ABS ring with the tone ring included, which supports accurate wheel speed sensor readings. The axle nut is a hex type measuring 1 2/5 inches (35.6 mm) across the flats, with a height of 1 inch (23 mm) and a length of 1 1/2 inches (37.53 mm). It uses an M24x1.5 thread size and a stake locking mechanism to secure the nut firmly in place. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The inboard shaft connection is male with 27 splines, while the outboard shaft connection is conventional with 28 splines, matching the Honda Prelude’s driveline configuration.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Honda Prelude
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures axle nut with stake locking to avoid loosening

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HO-8099, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned for accurate sensor readings. Inspect the neoprene boot for any damage during installation to maintain joint protection. This part is designed for direct replacement on compatible Honda Prelude models, requiring no modifications.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HO-8099 is a new, remanufactured-quality component built to meet or exceed OEM standards. It undergoes rigorous quality control to ensure durability and fitment accuracy. Warranty coverage details should be confirmed with the distributor or manufacturer to ensure protection against defects.
