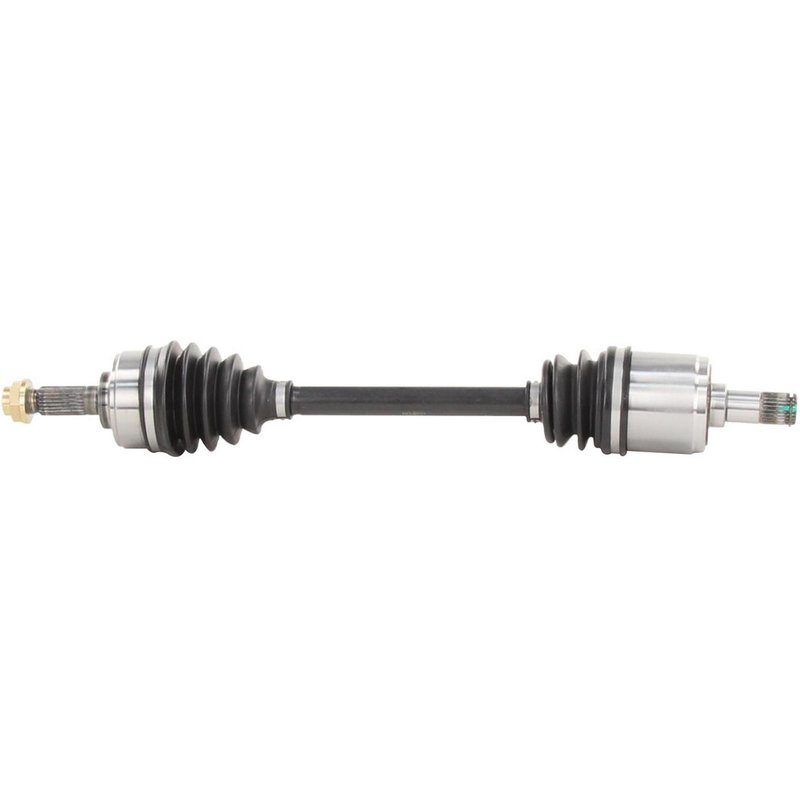

TrakMotive HO-8101 CV Axle Shaft - Front Right

Honda Prelude Front Right CV Axle Shaft

TrakMotive HO-8101 is a new CV axle shaft for the front right position on 1983-1987 Honda Prelude models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the specified application.

Key Features

• Fits 1983-1987 Honda Prelude, front right
• TrakMotive CV Axle Shaft, part number HO-8101
• New replacement axle for driveline and axle service
• Neoprene boot material for joint protection
• Male inboard shaft connection with conventional outboard joint
• Includes axle nut with M22 x 1.5 thread, stake locking type
• 31.8 mm axle nut hex size and 24.57 in overall compressed length
• 24 inboard splines and 25 outboard splines
• ABS tone ring not included

Detailed Description

TrakMotive HO-8101 is a CV axle shaft for the front right side of the 1983-1987 Honda Prelude. This axle is a new unit with a 24.57-inch compressed length, a male inboard shaft connection, and a conventional outboard joint style. The neoprene boot helps protect the CV joint area, while the included axle nut uses an M22 x 1.5 thread with a stake-style locking design. TrakMotive HO-8101 also cross-references Cardone Reman 60-4019 and 60-4049 for the same application.

What It Helps Address

• Clicking or popping noises during turns from a worn outer CV joint
• Vibration or shudder during acceleration caused by axle wear
• Grease leakage from a damaged CV boot
• Driveline play from worn splines or joint components
• Front right axle replacement on 1983-1987 Honda Prelude models

Installation Notes and Tips

Confirm front right fitment before installation and verify spline count, axle nut thread size, and compressed length against the original part. Inspect the hub, seals, and surrounding suspension components during service, and follow the vehicle service manual for torque and staking procedures. ABS axles fit non-ABS applications unless otherwise noted; this axle does not include an ABS tone ring.

Quality Assurance

TrakMotive identifies this axle as a new replacement part and backs it with a limited lifetime warranty. The manufacturer states ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for driveline components.
