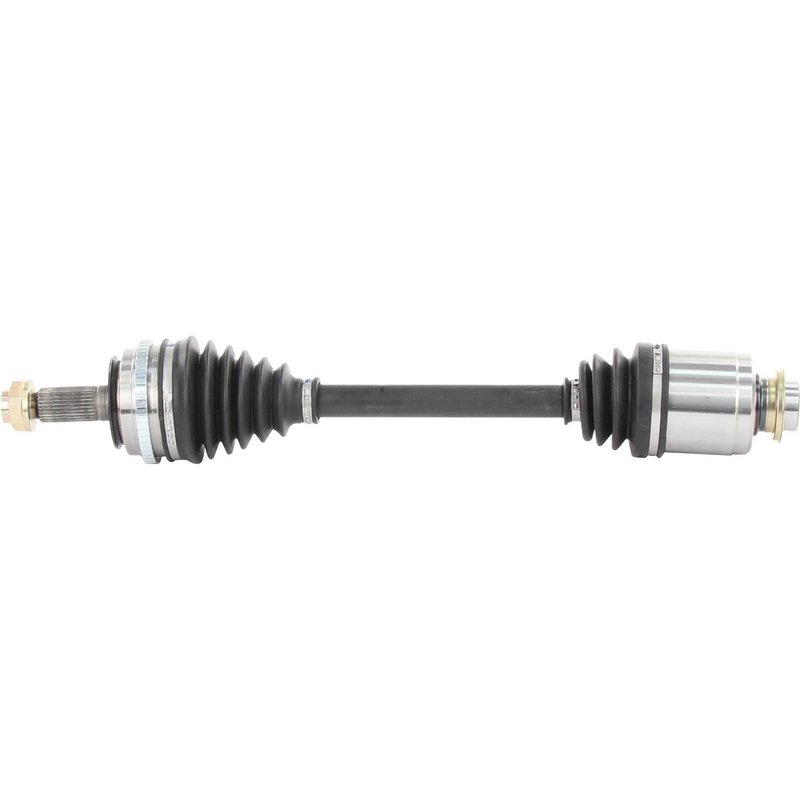

TrakMotive HO-8103 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HO-8103 for Honda CR-V

The TrakMotive CV Axle Shaft HO-8103 is designed specifically for Honda CR-V models, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Honda CR-V vehicles
• Includes a neoprene boot for enhanced protection
• Equipped with a 50-tooth ABS ring and included tone ring
• Axle nut with hex head, 1.5 inches length, and stake locking type
• Overall compressed length of 23.86 inches (606 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components engineered for precise fit and function. This line includes shafts with both inboard and outboard joint types designed to meet OEM specifications. The HO-8103 model features a female inboard joint and a conventional outboard joint, ensuring smooth power transfer and reliable operation for Honda CR-V drivetrains.

Technical Specifications and Features

This CV axle shaft is built with a neoprene boot material that offers resistance to wear and environmental factors. The ABS ring is a toothed type with 50 teeth, and the tone ring is included to maintain proper ABS sensor function. The axle nut is a hex head type with a 35.6 mm (1 2/5 inch) hex size, 1 inch (23 mm) height, and 1.5 inch (37.53 mm) length, featuring a stake locking mechanism for secure installation. The shaft has 27 inboard splines and 28 outboard splines, with an overall compressed length of 23.86 inches (606 mm), ensuring a precise fit for the Honda CR-V.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Honda CR-V
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included stake-lock axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HO-8103, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain sensor accuracy. Inspect the neoprene boot for any damage during installation to avoid premature failure. This part is designed for direct replacement on compatible Honda CR-V models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HO-8103 is a new, not remanufactured, component built to meet OEM standards. It includes all necessary hardware such as the axle nut for a complete replacement solution. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance and durability.
