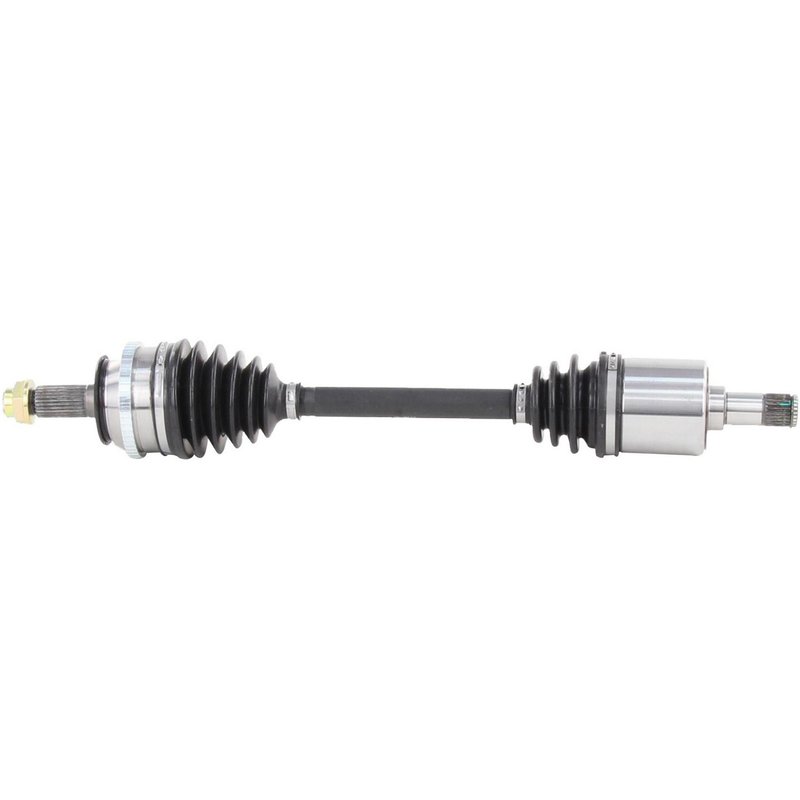

TrakMotive HO-8110 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8110 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.88 |
| Overall Compressed Length (mm) | 606.5 |
| Product line | CV Axle Shaft |
| Fits | Acura and Honda · 25 vehicles |
New axle shaft. Built with a neoprene boot for durable CV joint protection.
ABS-ready design. Includes a toothed tone ring with 50 teeth for accurate signal pickup.
Hardware included. Comes with the axle nut for a complete installation.
Cross-references Cardone New 66-4189, Cardone Reman 60-4188 and Cardone Reman 60-4189 for the same application. See all 36.
TrakMotive HO-8110 CV Axle Shaft
TrakMotive HO-8110 is a new CV axle shaft for front right applications on select Honda Civic and Acura EL models. It is built with a neoprene boot, a toothed ABS tone ring, and the correct spline and nut specifications for direct replacement service.
The TrakMotive CV Axle Shaft line focuses on application-specific driveline replacement parts. HO-8110 follows that approach with OE-style dimensions and hardware details that matter for a proper front right axle replacement on 2001-2005 Honda Civic and 2001-2005 Acura EL vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8110
- New axle shaft assembly
- Front right position
- Neoprene boot material
- ABS tone ring included with 50-tooth toothed ring
- Axle nut included with M22 x 1.5 thread, 31.8 mm hex size, and stake locking type
- Inboard shaft connection style: male
- Outboard shaft connection style: conventional
- Overall compressed length: 23.88 in. (606.5 mm)
Detailed Description
HO-8110 is a CV axle shaft for front right driveline service on 2001-2005 Honda Civic and 2001-2005 Acura EL applications. It uses a male inboard joint, a conventional outboard joint, 25 inboard splines, and 26 outboard splines to match the listed fitment. The included ABS tone ring and toothed ring design support vehicles equipped for ABS-related wheel speed sensing.
This part cross-references Cardone New 66-4189 for the same application. It is also listed among interchange references for related OE and aftermarket numbers, including HO-8026A.
What This Part Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- ABS warning concerns related to a damaged tone ring or incorrect axle specification
- Driveline noise from excessive axle wear
Installation Notes and Tips
Verify front right fitment by year, model, and transmission/application details before installation. Confirm axle nut thread size, spline count, and ABS tone ring configuration against the removed part. Inspect seals, hub components, and surrounding suspension hardware during replacement to help prevent repeat labor.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management practices.
| Year | Make | Model | Submodel | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Acura | EL | — | — | Front Right | Automatic; CV Axle Shaft |
| 2005 | Honda | Civic | Value Package | Automatic | Front Right | CV Axle Shaft |
| 2005 | Honda | Civic | LX | Automatic | Front Right | CV Axle Shaft |
| 2005 | Honda | Civic | GX | — | Front Right | CV Axle Shaft |
| 2005 | Honda | Civic | EX | Automatic | Front Right | CV Axle Shaft |
| 2005 | Honda | Civic | DX | Automatic | Front Right | CV Axle Shaft |
| 2004 | Acura | EL | — | — | Front Right | Automatic; CV Axle Shaft |
| 2004 | Honda | Civic | Value Package | Automatic | Front Right | CV Axle Shaft |
| 2004 | Honda | Civic | LX | Automatic | Front Right | CV Axle Shaft |
| 2004 | Honda | Civic | HX | Automatic CVT | Front Right | CV Axle Shaft |
| 2004 | Honda | Civic | GX | — | Front Right | CV Axle Shaft |
| 2004 | Honda | Civic | EX | Automatic | Front Right | CV Axle Shaft |
| 2004 | Honda | Civic | DX | Automatic | Front Right | CV Axle Shaft |
| 2003 | Acura | EL | — | — | Front Right | Automatic; CV Axle Shaft |
| 2003 | Honda | Civic | LX | Automatic | Front Right | CV Axle Shaft |
| 2003 | Honda | Civic | GX | — | Front Right | CV Axle Shaft |
| 2003 | Honda | Civic | EX | Automatic | Front Right | CV Axle Shaft |
| 2003 | Honda | Civic | DX | Automatic | Front Right | CV Axle Shaft |
| 2002 | Acura | EL | — | — | Front Right | Automatic; CV Axle Shaft |
| 2002 | Honda | Civic | LX | Automatic | Front Right | CV Axle Shaft |
| 2002 | Honda | Civic | GX | — | Front Right | CV Axle Shaft |
| 2002 | Honda | Civic | EX | Automatic | Front Right | CV Axle Shaft |
| 2002 | Honda | Civic | DX | Automatic | Front Right | CV Axle Shaft |
| 2001 | Acura | EL | — | — | Front Right | Automatic; CV Axle Shaft |
| 2001 | Honda | Civic | — | Automatic | Front Right | CV Axle Shaft |
