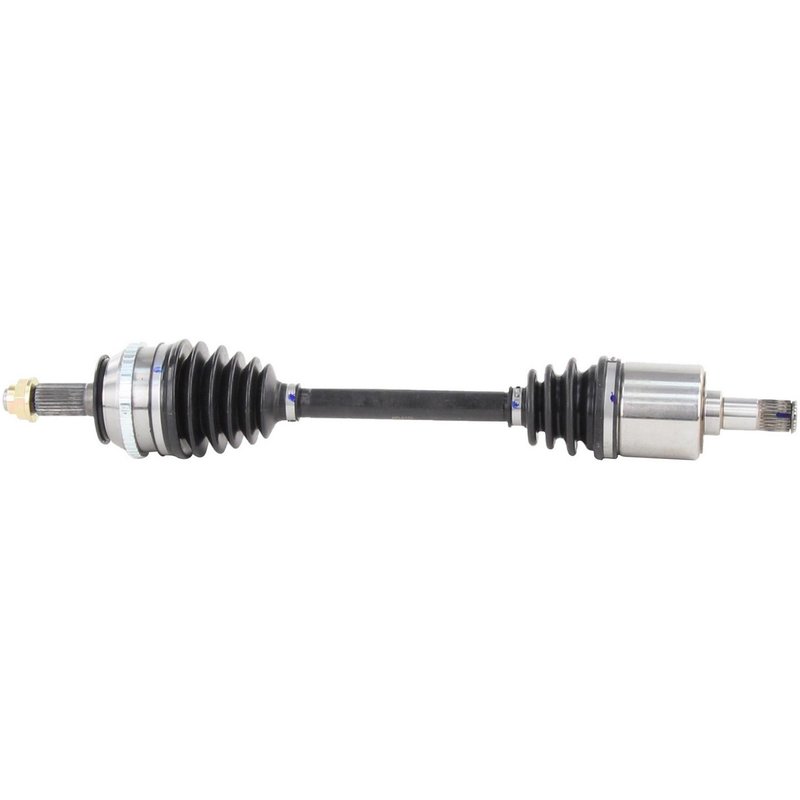

TrakMotive HO-8120 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8120 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.02 |
| Overall Compressed Length (mm) | 610 |
| Product line | CV Axle Shaft |
| Fits | Honda and Acura · 23 vehicles |
New axle shaft. Fresh replacement part for driveline and CV component service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring for ABS-equipped applications.
Cross-references Anchor 8086, Cardone New 66-4193 and Cardone Reman 60-4192 for the same application. See all 28.
CV Axle Shaft for Civic and EL
TrakMotive HO-8120 is a new CV axle shaft built for front right applications on select Honda and Acura models. It is specified for 2001-2005 Honda Civic and 2001-2004 Acura EL manual transmission applications, with OE-style dimensions and drivetrain connection points for direct replacement service.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8120
- Front right position
- New, not remanufactured
- Overall compressed length: 24.02 in. (610 mm)
- Inboard shaft connection: male
- Outboard shaft connection: conventional
- 25 inboard splines and 26 outboard splines
- Neoprene boot material
- ABS tone ring included with 50-tooth toothed ring
- Axle nut included; M22 x 1.5 thread, 31.8 mm hex size, stake lock type
Product Details
TrakMotive positions the HO-8120 within its CV Axle Shaft line for driveline and axle service. This axle is built with a male inboard joint, conventional outboard joint, and the listed spline counts to match the specified Honda Civic and Acura EL front right fitments. The included ABS tone ring and toothed ring configuration support vehicles that require ABS-related axle sensing hardware, while the note that ABS axles fit non-ABS applications unless otherwise noted provides additional application flexibility where the vehicle setup calls for it.
This part cross-references Cardone New 66-4193 and Anchor 8086 for the same application. It is a direct-fit replacement for 2001-2005 Honda Civic front right service and 2001-2004 Acura EL front right manual transmission service, making it a practical choice when replacing a worn or damaged axle on these platforms.
What It Helps Fix
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder under acceleration from axle wear
- Grease leakage from a damaged axle boot
- Excessive play in the front right driveline assembly
- ABS warning concerns related to a damaged tone ring or axle sensor interface
Installation Notes
- Verify front right fitment before installation on the vehicle.
- Confirm spline count, axle nut thread size, and compressed length against the original axle.
- Use the included axle nut where specified by the application.
- Inspect seals, hub condition, and surrounding suspension components during replacement.
- Manual transmission fitment is listed for Acura EL applications.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty and that the company is ISO 9001:1007 and TS 16949:2009 certified. Those quality system certifications support consistent manufacturing control for the HO-8120 CV axle shaft.
| Year | Make | Model | Submodel | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Honda | Civic | Value Package | Manual | Front Right | CV Axle Shaft |
| 2005 | Honda | Civic | LX | Manual | Front Right | CV Axle Shaft |
| 2005 | Honda | Civic | HX | Manual | Front Right | CV Axle Shaft |
| 2005 | Honda | Civic | EX | Manual | Front Right | CV Axle Shaft |
| 2005 | Honda | Civic | DX | Manual | Front Right | CV Axle Shaft |
| 2004 | Acura | EL | — | — | Front Right | Manual Transmission; CV Axle Shaft |
| 2004 | Honda | Civic | Value Package | Manual | Front Right | CV Axle Shaft |
| 2004 | Honda | Civic | LX | Manual | Front Right | CV Axle Shaft |
| 2004 | Honda | Civic | HX | Manual | Front Right | CV Axle Shaft |
| 2004 | Honda | Civic | EX | Manual | Front Right | CV Axle Shaft |
| 2004 | Honda | Civic | DX | Manual | Front Right | CV Axle Shaft |
| 2003 | Acura | EL | — | — | Front Right | Manual Transmission; CV Axle Shaft |
| 2003 | Honda | Civic | LX | Manual | Front Right | CV Axle Shaft |
| 2003 | Honda | Civic | HX | Manual | Front Right | CV Axle Shaft |
| 2003 | Honda | Civic | EX | Manual | Front Right | CV Axle Shaft |
| 2003 | Honda | Civic | DX | Manual | Front Right | CV Axle Shaft |
| 2002 | Acura | EL | — | — | Front Right | Manual Transmission; CV Axle Shaft |
| 2002 | Honda | Civic | LX | Manual | Front Right | CV Axle Shaft |
| 2002 | Honda | Civic | HX | Manual | Front Right | CV Axle Shaft |
| 2002 | Honda | Civic | EX | Manual | Front Right | CV Axle Shaft |
| 2002 | Honda | Civic | DX | Manual | Front Right | CV Axle Shaft |
| 2001 | Acura | EL | — | — | Front Right | Manual Transmission; CV Axle Shaft |
| 2001 | Honda | Civic | — | Manual | Front Right | CV Axle Shaft |
