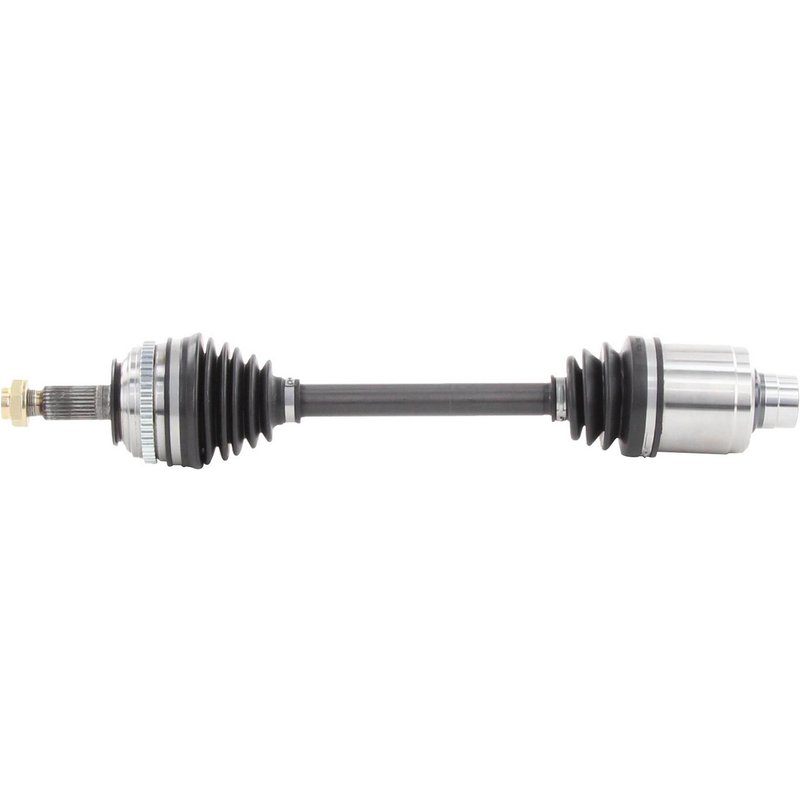

TrakMotive HO-8121 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive CV Axle Shaft HO-8121

The TrakMotive CV Axle Shaft HO-8121 is designed for reliable driveline performance in select Acura and Honda vehicles. Engineered to meet OEM specifications, this new CV axle shaft is compatible with models such as the Honda Civic, Civic del Sol, and Acura Integra.

• Compatible with Acura and Honda Civic, Civic del Sol, and Integra models
• Includes a neoprene boot for enhanced durability
• Equipped with a 50-tooth ABS ring and included tone ring
• Features a hex axle nut with stake locking type for secure installation
• Overall compressed length of 22.2 inches (564 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fitment and durability for driveline and axle components. This line emphasizes quality materials such as neoprene boots and includes essential hardware like axle nuts and ABS tone rings to ensure proper function and compatibility with vehicle ABS systems. The HO-8121 model exemplifies these standards with its detailed specifications and OEM-style construction.

Technical Specifications and Features

This CV axle shaft features a female inboard joint type with 27-2t splines and a conventional outboard joint with 26 splines. The included ABS ring has 50 teeth and a toothed design, complete with an ABS tone ring to maintain accurate wheel speed sensor readings. The axle nut is a hex type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses an M22x1.5 thread size and a stake locking mechanism to prevent loosening during operation. The neoprene boot material provides resistance to wear and environmental factors, extending the service life of the joint.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Acura Integra and Honda Civic models
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Addresses axle nut loosening issues with stake locking design
• Prevents grease leakage and contamination with durable neoprene boot

Installation Notes and Tips

Ensure compatibility by verifying vehicle make and model before installation. Use proper torque specifications for the M22x1.5 axle nut and confirm the stake locking is properly engaged to secure the nut. Inspect the ABS sensor and wiring during installation to avoid sensor errors. The overall compressed length of 22.2 inches (564 mm) should match OEM dimensions for correct fitment.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HO-8121 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Acura and Honda driveline applications.
