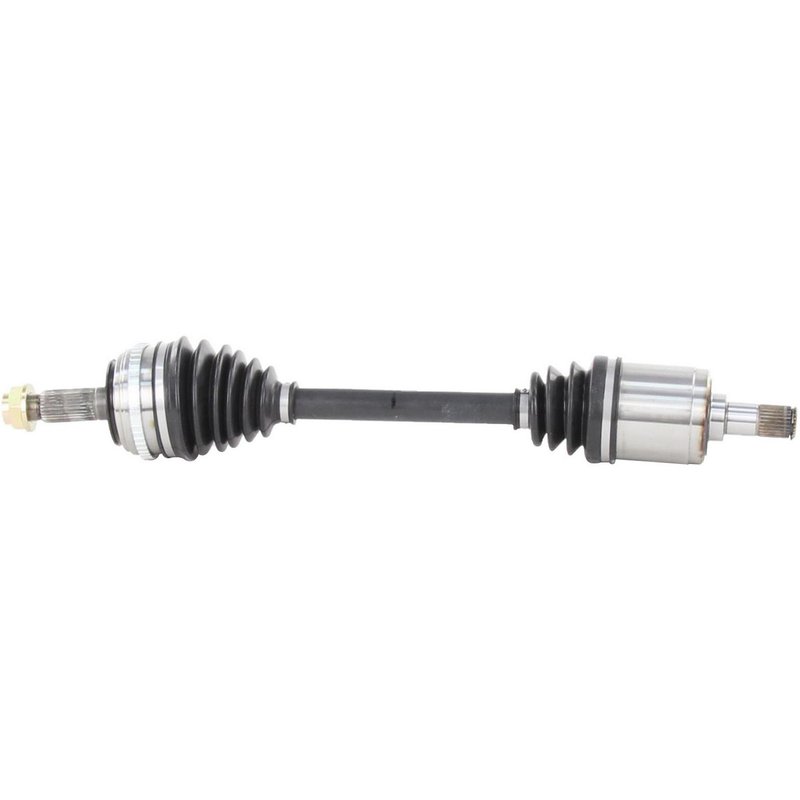

TrakMotive HO-8136 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HO-8136 for Honda CR-V

The TrakMotive CV Axle Shaft HO-8136 is designed specifically for Honda CR-V models, providing reliable driveline performance. This new CV axle shaft includes essential components such as a neoprene boot and a toothed ABS tone ring to ensure smooth operation and durability.

• Compatible with Honda CR-V vehicles
• Includes a 50-tooth ABS ring with a toothed design
• Equipped with a neoprene boot for enhanced protection
• Comes with a hex head axle nut (M24*1.5 thread size) included
• Overall compressed length of 25.24 inches (641 mm)
• Inboard joint features a male connection with 27 splines
• Outboard joint uses a conventional connection with 28 splines
• Axle nut locking type is stake for secure fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for various vehicle applications. This line emphasizes quality materials such as neoprene boots and includes ABS tone rings to maintain proper wheel speed sensor function. The HO-8136 model is part of this line, engineered to meet the specific requirements of Honda CR-V drivetrains.

Technical Description and Specifications

The HO-8136 CV axle shaft features a 50-tooth ABS ring with a toothed design, which is included to ensure accurate ABS sensor readings. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint uses a male connection style with 27 splines, while the outboard joint is conventional with 28 splines, providing a secure and precise fit. The axle nut included is a hex head type with a 1 2/5 inch (35.6 mm) hex size, 1 inch (23 mm) height, and a thread size of M24*1.5, secured by a stake locking mechanism. The overall compressed length of the axle shaft is 25.24 inches (641 mm), matching OEM specifications for proper installation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Honda CR-V
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included stake-lock axle nut

Installation Notes and Tips

Ensure compatibility with your specific Honda CR-V model year before installation. Use proper torque specifications for the M24*1.5 axle nut and verify the stake locking mechanism is properly engaged to prevent loosening. Inspect the CV boot for any damage during installation and replace if necessary. It is recommended to use OEM or equivalent tools to avoid damage to the splines or joints during assembly.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HO-8136 is a new, not remanufactured, component built to meet or exceed OEM standards. The use of high-quality neoprene boots and precision-machined splines ensures durability and reliable performance. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
