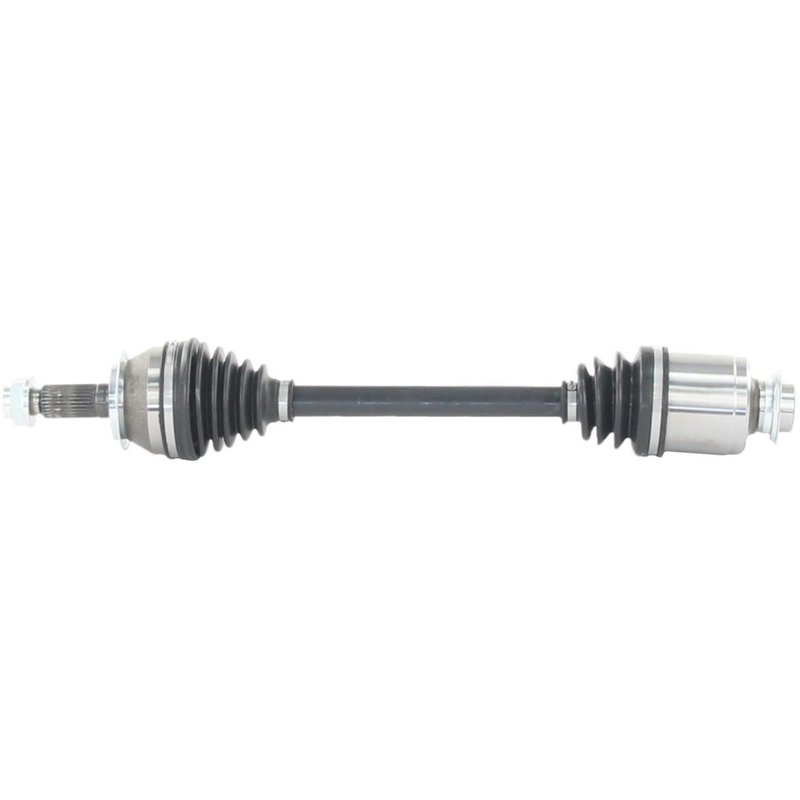

TrakMotive HO-8143 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8143 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27-2T |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.33 |
| Overall Compressed Length (mm) | 618 |
| Product line | CV Axle Shaft |
| Fits | Honda · 5 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for straightforward service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Includes axle nut. Conveniently supplied with the hardware needed for installation.
Cross-references Cardone New 66-4207, Cardone Reman 60-4207 and GSP NCV36134 for the same application. See all 21.
Honda CR-V Front Right CV Axle Shaft
TrakMotive HO-8143 is a new CV axle shaft for the front right position on select 2002-2006 Honda CR-V models. It is built with a neoprene boot, a female inboard connection, and a conventional outboard joint for direct driveline replacement service.
Key Features
- Fits 2002-2006 Honda CR-V, front right
- TrakMotive CV Axle Shaft, part number HO-8143
- New replacement axle shaft for driveline and axle service
- Neoprene boot material
- Female inboard shaft connection with conventional outboard shaft connection
- Includes axle nut with M24 x 1.5 thread size
- Hex axle nut head with stake locking type
- No ABS tone ring included
- Overall compressed length: 24.33 in. (618 mm)
Product Details
This TrakMotive CV axle shaft is specified for the front right side of the Honda CR-V and matches the listed spline and connection details for the application. HO-8143 uses a 27-2T inboard spline count and 28 outboard splines, along with a 35.6 mm axle nut hex size and 1.5 in. nut length. TrakMotive identifies this axle as a new unit and notes that ABS axles fit non-ABS applications unless otherwise noted. This part cross-references Cardone New 66-4207 and Cardone Reman 60-4207 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration caused by axle wear
- Torn or deteriorated axle boot
- Grease leakage around the axle assembly
- Driveline noise from a damaged front right axle shaft
Installation Notes
Verify the vehicle’s front right application, spline count, and axle nut thread size before installation. Confirm whether the vehicle uses ABS, since this axle does not include an ABS tone ring. Use the correct stake-style axle nut procedure during assembly and follow the vehicle service manual for torque and final inspection.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for driveline components.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Honda | CR-V | Front Right | CV Axle Shaft |
| 2005 | Honda | CR-V | Front Right | CV Axle Shaft |
| 2004 | Honda | CR-V | Front Right | CV Axle Shaft |
| 2003 | Honda | CR-V | Front Right | CV Axle Shaft |
| 2002 | Honda | CR-V | Front Right | CV Axle Shaft |
