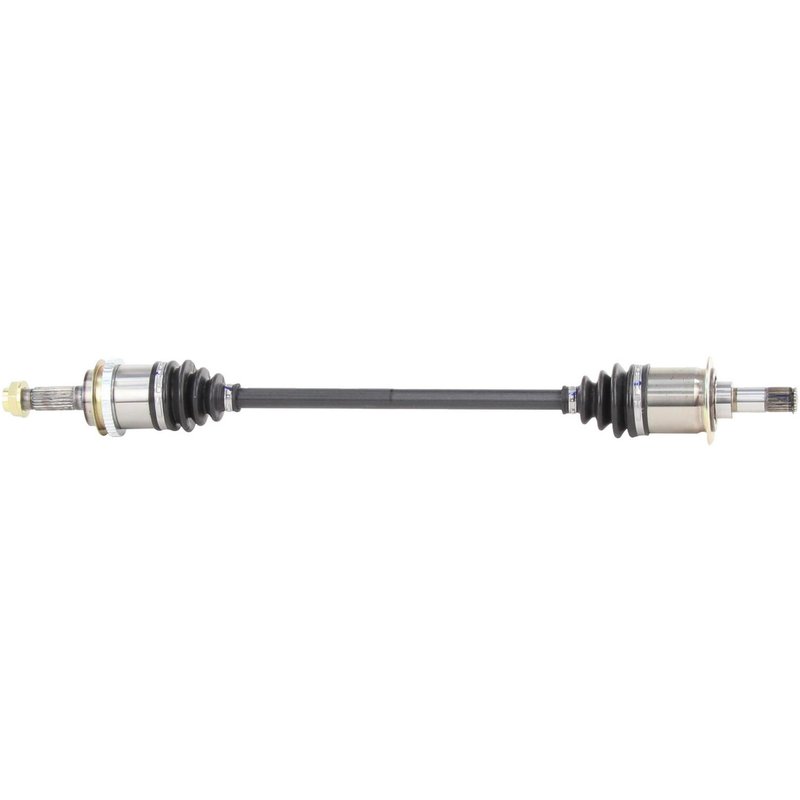

TrakMotive HO-8149 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft HO-8149 for Honda CR-V

The TrakMotive CV Axle Shaft HO-8149 is engineered specifically for Honda CR-V models, providing reliable driveline performance. This new CV axle shaft includes essential components such as a neoprene boot and a toothed ABS tone ring to ensure smooth operation and durability.

• Compatible with Honda CR-V vehicles
• Includes a 50-tooth ABS ring with a toothed design
• Equipped with a neoprene boot for enhanced protection
• Comes with a hex head axle nut (M22*1.5 thread size)
• Overall compressed length of 29.13 inches (740 mm)
• Features male inboard joint and conventional outboard joint types
• Includes stake locking axle nut for secure fitment
• New, not remanufactured, ensuring original quality

Detailed Features of the TrakMotive CV Axle Shaft

The TrakMotive CV Axle Shaft HO-8149 is designed with precision to meet the specifications required for Honda CR-V driveline systems. It features a 50-tooth ABS ring with a toothed design, which is included to maintain accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The axle nut included is a hex type with a 1 1/4 inch (31.8 mm) hex size and a stake locking mechanism, ensuring a secure and reliable installation. Both the inboard and outboard joints have 23 splines, with the inboard joint being male type and the outboard joint conventional, matching OEM standards. The overall compressed length of 29.13 inches (740 mm) fits the Honda CR-V's driveline requirements precisely.

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to meet or exceed OEM specifications. This line includes shafts with integrated ABS tone rings and durable boot materials, tailored for specific vehicle applications. The HO-8149 model exemplifies this approach by combining essential features such as a neoprene boot and a toothed ABS ring, ensuring compatibility and performance for Honda CR-V models.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Honda CR-V
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included stake locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HO-8149 on a Honda CR-V, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly aligned with the wheel speed sensor for accurate readings. Inspect the neoprene boot for any damage during installation to maintain joint protection. Using appropriate tools for the hex head axle nut (1 1/4 inch) will facilitate a secure fit.

Quality Assurance and Warranty

This CV axle shaft is new and manufactured to meet OEM standards for fit and function. The inclusion of a neoprene boot and ABS tone ring reflects attention to durability and performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability in driveline applications.
