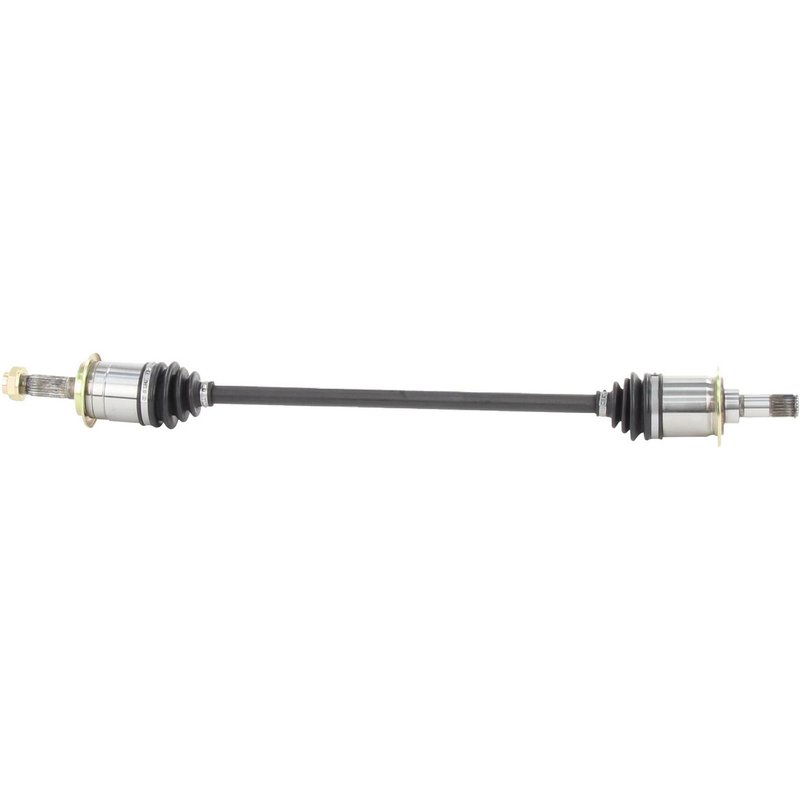

TrakMotive HO-8159 CV Axle Shaft - Rear Right
| Brand | TrakMotive HO-8159 |
|---|---|
| Position | Rear Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 23 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 31.46 |
| Overall Compressed Length (mm) | 799 |
| Product line | CV Axle Shaft |
| Fits | Honda · 5 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable joint protection.
Axle nut included. Comes ready with a hex nut and stake locking type for secure installation.
ISO certified manufacturing. Built by a company certified to ISO 9001 and TS 16949 standards.
Cross-references TrakMotive HO-8159, 42310S9AA00 and 42310SCAE21 for the same application. See all 8.
Honda CR-V Rear Right CV Axle Shaft
TrakMotive HO-8159 is a new CV axle shaft for the rear right position on select 2002-2006 Honda CR-V models. It is built for direct replacement service and includes the axle nut specified for this application.
Key Features
- Fits 2002-2006 Honda CR-V, rear right
- TrakMotive CV Axle Shaft, part number HO-8159
- New axle assembly with 23 inboard splines and 23 outboard splines
- Neoprene boot material for CV joint protection
- Male inboard shaft connection style with conventional outboard joint type
- Axle nut included; M22 x 1.5 thread, 31.8 mm hex size, stake locking type
- Overall compressed length: 799 mm (31.46 in)
- ABS tone ring not included
Product Details
TrakMotive HO-8159 is a CV axle shaft for the rear right side of the Honda CR-V, covering 2002-2006 model years. This axle is specified with a male inboard connection, spline-style outboard shaft connection, and a conventional outboard joint design. The neoprene boot helps protect the joint area, while the included axle nut supports a proper service replacement on the listed application. TrakMotive identifies this axle line as a new replacement component backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing processes.
This part cross-references Monroe Shocks & Struts (e.g., AX-1221) for the same application.
Common Repair Uses
- Restoring drivetrain operation after a worn or noisy rear CV axle
- Addressing clicking, vibration, or binding from a damaged axle assembly
- Replacing a torn boot or contaminated CV joint on the rear right side
- Correcting axle fitment issues on 2002-2006 Honda CR-V rear suspension service
- Replacing a failed axle during Honda CR-V driveline repair
Installation Notes
Verify rear right fitment before installation on the 2002-2006 Honda CR-V. Confirm spline count, axle nut thread size, and compressed length against the original part. The axle nut is included, and the application uses a stake-style locking nut. ABS tone ring is not included, so compare the original axle configuration before service.
Quality Assurance
TrakMotive HO-8159 is a new CV axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. The manufacturer states this part is covered by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Honda | CR-V | 4WD | Rear Right | CV Axle Shaft |
| 2005 | Honda | CR-V | 4WD | Rear Right | CV Axle Shaft |
| 2004 | Honda | CR-V | 4WD | Rear Right | CV Axle Shaft |
| 2003 | Honda | CR-V | 4WD | Rear Right | CV Axle Shaft |
| 2002 | Honda | CR-V | 4WD | Rear Right | CV Axle Shaft |
