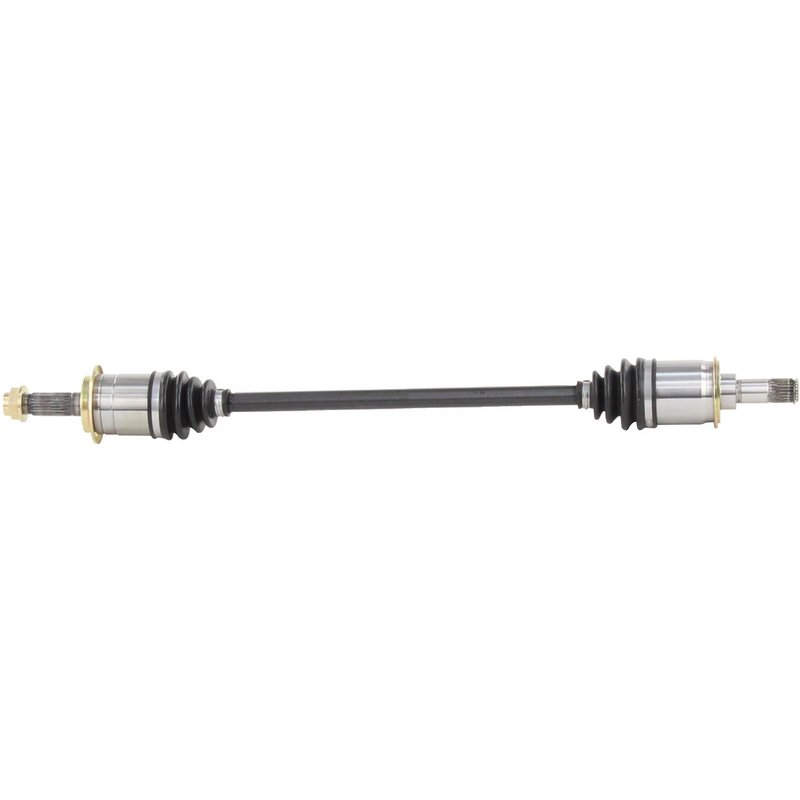

TrakMotive HO-8160 CV Axle Shaft - Rear Left
| Brand | TrakMotive HO-8160 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 23 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 29.21 |
| Overall Compressed Length (mm) | 742 |
| Product line | CV Axle Shaft |
| Fits | Honda · 5 vehicles |
New CV axle shaft. A direct replacement for worn driveline components.
Neoprene boot material. Helps resist cracking and flexes with movement.
Axle nut included. Saves time by supplying the required hardware.
Cross-references TrakMotive HO-8160, 42311S9AA00 and 42311SCAE21 for the same application. See all 8.
Honda CR-V Rear Left CV Axle Shaft
TrakMotive HO-8160 is a new CV axle shaft for the rear left position on select 2002-2006 Honda CR-V models. It is built with a neoprene boot, 23 inboard splines, 23 outboard splines, and includes the axle nut for a direct replacement on the listed application.
Key Features
- Fits 2002-2006 Honda CR-V, rear left
- TrakMotive CV Axle Shaft, part number HO-8160
- New axle assembly with conventional outboard joint type
- Male inboard joint and male inboard shaft connection style
- Neoprene boot material for driveline protection
- Overall compressed length: 29.21 in. (742 mm)
- Axle nut included; M22 x 1.5 thread, 31.8 mm hex size
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft is engineered for the rear left driveline position on the 2002-2006 Honda CR-V. HO-8160 matches the listed spline count and compressed length for the application, and it is supplied as a new replacement axle with a stake-style axle nut. TrakMotive positions this CV axle shaft line as a replacement solution for driveline and axle service, and the manufacturer notes ISO 9001:1007 and TS 16949:2009 certified production practices.
This part cross-references Monroe Shocks & Struts (e.g., AX-1220) for the same application.
Common Repair Symptoms
- Clicking or popping from the rear axle area during turns
- Vibration or shudder from the rear driveline
- Boot damage with grease leakage at the CV joint
- Excessive play or noise from a worn axle shaft assembly
- Driveline noise on a 2002-2006 Honda CR-V, rear left
Installation Notes
Verify rear left fitment before installation and confirm axle nut thread size, hex size, and spline count against the original part. Because this axle does not include an ABS tone ring, it is intended for non-ABS applications unless otherwise noted. Always inspect related seals, hubs, and mounting points during service to help ensure a proper repair on the Honda CR-V.
Quality Assurance
TrakMotive HO-8160 is a new CV axle shaft backed by a limited lifetime warranty. The manufacturer also states that ABS axles fit non-ABS applications unless otherwise noted and that the company operates under ISO 9001:1007 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Honda | CR-V | 4WD | Rear Left | CV Axle Shaft |
| 2005 | Honda | CR-V | 4WD | Rear Left | CV Axle Shaft |
| 2004 | Honda | CR-V | 4WD | Rear Left | CV Axle Shaft |
| 2003 | Honda | CR-V | 4WD | Rear Left | CV Axle Shaft |
| 2002 | Honda | CR-V | 4WD | Rear Left | CV Axle Shaft |
