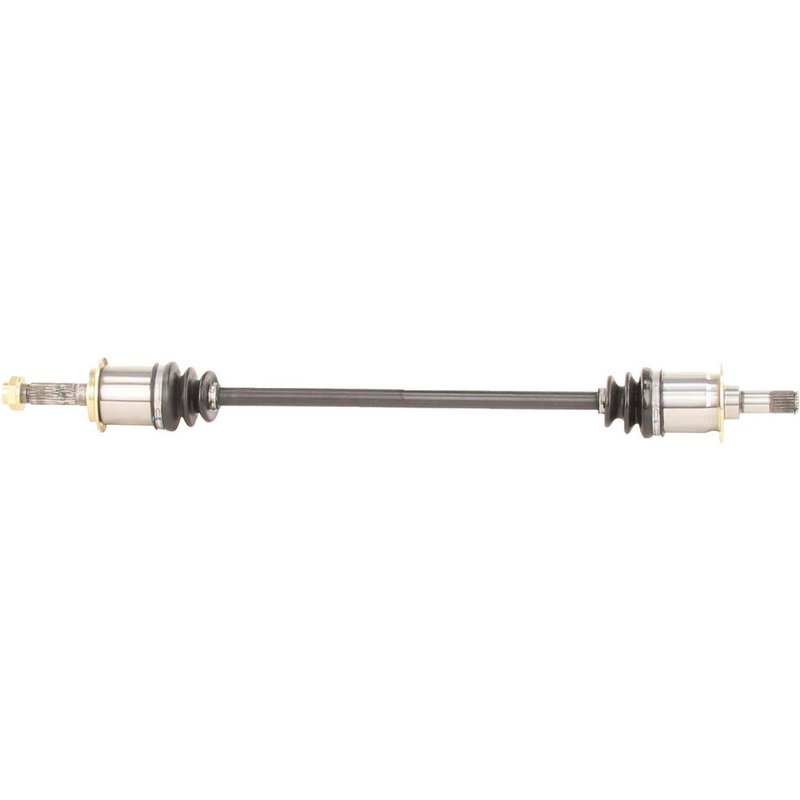

TrakMotive HO-8162 CV Axle Shaft - Rear Right
| Brand | TrakMotive HO-8162 |
|---|---|
| Position | Rear Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 23 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 31.57 |
| Overall Compressed Length (mm) | 802 |
| Product line | CV Axle Shaft |
| Fits | Honda · 9 vehicles |
New axle shaft. Built with neoprene boot material for dependable CV joint protection.
Axle nut included. Conveniently supplied with a hex nut and stake locking type.
ISO certified manufacturing. Produced by a company certified to ISO 9001 and TS 16949 standards.
Cross-references Cardone Reman 60-4216, TrakMotive HO-8162 and 3954R for the same application. See all 6.
Honda Element Rear Right CV Axle Shaft
Replace a worn rear axle with the TrakMotive CV Axle Shaft HO-8162 for the 2003-2011 Honda Element, rear right. This new axle shaft is built for direct replacement service and includes the axle nut for the application.
Key Features
- Direct-fit CV axle shaft for the rear right position
- Fits 2003-2011 Honda Element, rear right
- New construction, not remanufactured
- 23 inboard splines and 23 outboard splines
- Neoprene boot material for CV joint protection
- Conventional outboard joint design with male inboard connection
- Includes axle nut with M22 x 1.5 thread, stake locking type
- Overall compressed length: 31.57 in. (802 mm)
Product Details
The TrakMotive HO-8162 is a CV axle shaft for Honda Element rear right applications from 2003 through 2011. It is built as a new replacement axle with a conventional outboard joint, male inboard shaft connection, and a neoprene boot to help protect the joint assembly from road contamination. The axle nut is included, and the unit uses a 31.8 mm hex axle nut with M22 x 1.5 thread size. TrakMotive identifies this part number as HO-8162, and it also cross-references Cardone Reman 60-4216 for the same application.
Common Repair Uses
- Restores driveline operation when the rear axle is worn or damaged
- Addresses clicking, vibration, or binding from a failing CV joint
- Replaces a leaking or torn boot assembly on the rear right axle
- Helps correct axle noise during acceleration or turning
- Supports repair after spline wear or joint contamination
Installation Notes
Verify rear right fitment before installation on your Honda Element. Confirm spline count, axle nut thread size, and compressed length against the original axle shaft. The ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle application.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part and states ISO 9001:1007 and TS 16949:2009 certification. The HO-8162 is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Honda | Element | 4WD | Rear Right | CV Axle Shaft |
| 2010 | Honda | Element | 4WD | Rear Right | CV Axle Shaft |
| 2009 | Honda | Element | 4WD | Rear Right | CV Axle Shaft |
| 2008 | Honda | Element | 4WD | Rear Right | CV Axle Shaft |
| 2007 | Honda | Element | 4WD | Rear Right | CV Axle Shaft |
| 2006 | Honda | Element | 4WD | Rear Right | CV Axle Shaft |
| 2005 | Honda | Element | 4WD | Rear Right | CV Axle Shaft |
| 2004 | Honda | Element | 4WD | Rear Right | CV Axle Shaft |
| 2003 | Honda | Element | 4WD | Rear Right | CV Axle Shaft |
