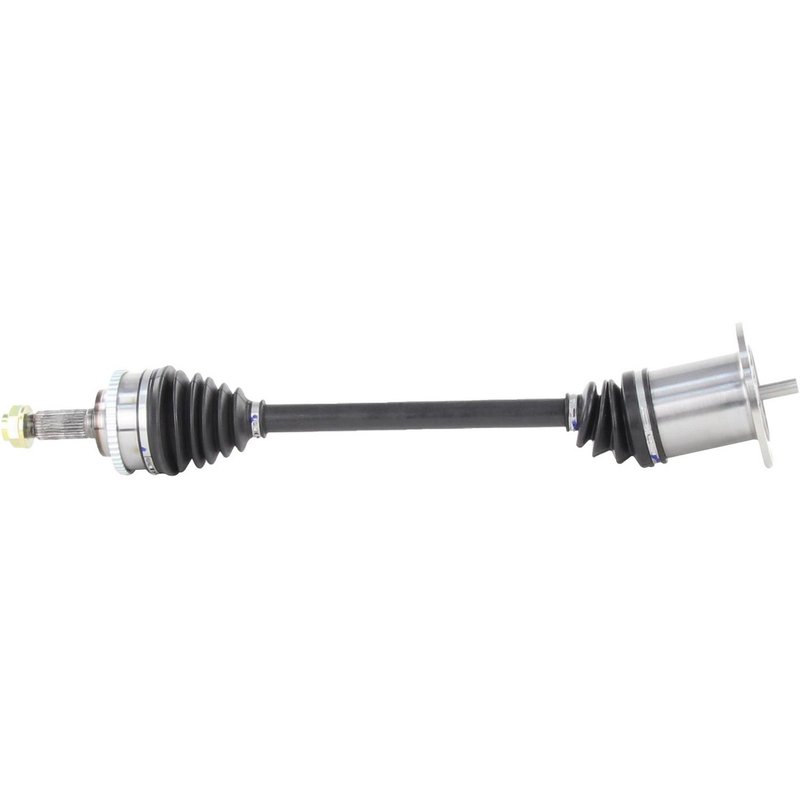

TrakMotive HO-8163 CV Axle Shaft - Rear Right
| Brand | TrakMotive HO-8163 |
|---|---|
| Position | Rear Right |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 28.5 |
| Overall Compressed Length (mm) | 724 |
| Product line | CV Axle Shaft |
| Fits | Honda · 10 vehicles |
New axle shaft. Built with a neoprene boot and conventional outboard joint.
ABS tone ring included. Toothed ring with 50 teeth for ABS-equipped applications.
Hardware included. Axle nut is included for a more complete installation.
Cross-references Cardone New 66-4201, Cardone Reman 60-4201 and TrakMotive HO-8163 for the same application. See all 10.
Honda S2000 Rear Right CV Axle Shaft
TrakMotive HO-8163 is a new CV axle shaft for the rear right position on 2000-2009 Honda S2000 models. It is built for direct replacement service with application-specific dimensions, spline counts, and ABS tone ring details that match the listed fitment.
Key Features
- Fits 2000-2009 Honda S2000, rear right
- TrakMotive CV Axle Shaft, part number HO-8163
- New axle assembly with 28 outboard splines
- Flange-style inboard joint and spline-style outboard connection
- Neoprene boot material for driveline protection
- ABS tone ring included with 50-tooth toothed ring
- Axle nut included with M24 x 1.5 thread size and stake locking type
- Overall compressed length: 28.5 in. (724 mm)
Product Details
This TrakMotive CV axle shaft is engineered for the Honda S2000 rear right application and follows the OE-style layout used on the vehicle. HO-8163 includes a flange inboard joint, conventional outboard joint, and the specified ABS tone ring setup, making it a direct-fit replacement for the listed years. The axle nut is included and sized to match the application, which helps simplify service on the Honda S2000 rear axle assembly. This part cross-references Cardone New 66-4201 and Cardone Reman 60-4201 for the same application.
Common Repair Uses
- Restores driveline function when the rear right axle is worn or damaged
- Addresses clicking, vibration, or binding from a failing CV axle shaft
- Replaces a leaking or torn axle boot assembly
- Supports proper ABS signal transfer when the tone ring is required
- Helps correct axle-related noise during acceleration or cornering
Installation Notes
Verify rear right fitment before installation on 2000-2009 Honda S2000 models. Confirm spline count, axle nut thread size, and ABS tone ring requirements against the original axle. The axle nut is included; use the correct stake-style tightening procedure and follow factory torque specifications during installation.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part and notes ISO 9001:1007 and TS 16949:2009 certified company manufacturing. The manufacturer also backs this part with a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Honda | S2000 | Rear Right | CV Axle Shaft |
| 2008 | Honda | S2000 | Rear Right | CV Axle Shaft |
| 2007 | Honda | S2000 | Rear Right | CV Axle Shaft |
| 2006 | Honda | S2000 | Rear Right | CV Axle Shaft |
| 2005 | Honda | S2000 | Rear Right | CV Axle Shaft |
| 2004 | Honda | S2000 | Rear Right | CV Axle Shaft |
| 2003 | Honda | S2000 | Rear Right | CV Axle Shaft |
| 2002 | Honda | S2000 | Rear Right | CV Axle Shaft |
| 2001 | Honda | S2000 | Rear Right | CV Axle Shaft |
| 2000 | Honda | S2000 | Rear Right | CV Axle Shaft |
