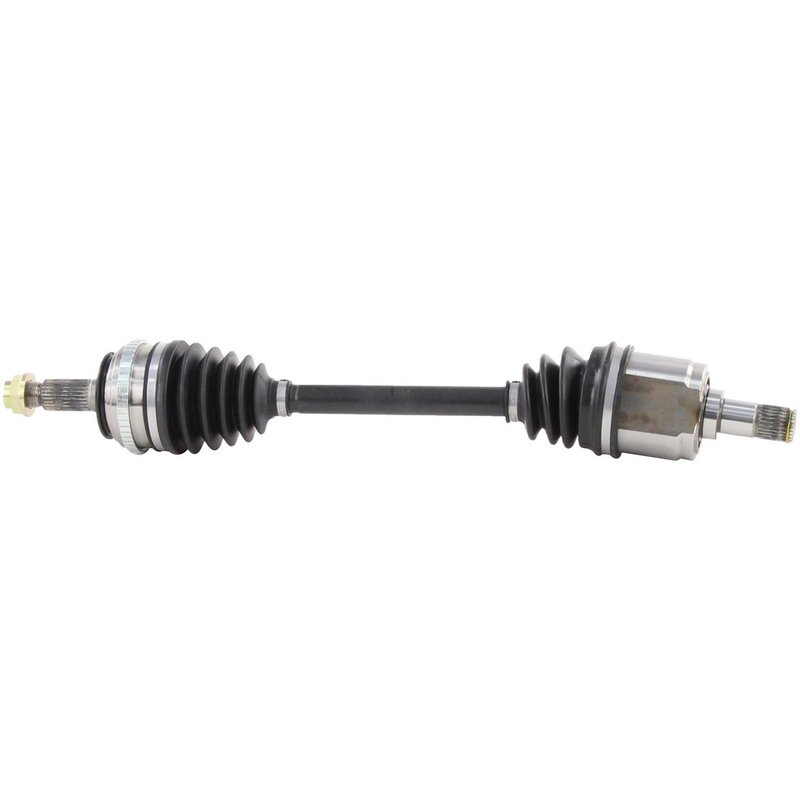

TrakMotive HO-8186 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8186 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.13 |
| Overall Compressed Length (mm) | 613 |
| Product line | CV Axle Shaft |
| Fits | Acura and Honda · 13 vehicles |
New axle shaft. Built with neoprene boot material for dependable protection.
ABS tone ring included. Toothed ring with 50 teeth for accurate signal transfer.
Axle nut included. Stake-lock hex nut with M22 x 1.5 thread size.
Cross-references Cardone New 66-4209, Cardone Reman 60-4209 and Federal Parts 8081 for the same application. See all 25.
CV Axle Shaft for Acura RSX and Honda Civic
TrakMotive HO-8186 is a new CV axle shaft for front left applications on select Acura RSX and Honda Civic models. It is built with a neoprene boot, a toothed ABS tone ring, and the correct spline and nut specifications for direct replacement service.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8186
- Fits 2002-2006 Acura RSX, front left
- Fits 2002-2005 Honda Civic, front left
- New axle assembly with conventional outboard joint type
- Male inboard shaft connection style
- 27 inboard splines and 26 outboard splines
- Neoprene boot material for driveline service
- ABS tone ring included with 50-tooth toothed ring
- Axle nut included; M22 x 1.5 thread, 31.8 mm hex size, stake locking type
- Overall compressed length: 24.13 in. (613 mm)
Product Details
TrakMotive HO-8186 is a CV axle shaft engineered for front left driveline replacement on the Acura RSX and Honda Civic applications listed above. The axle uses a male inboard connection, a conventional outboard joint, and the specified spline count to match the original driveline layout. The included ABS tone ring and axle nut support proper service on vehicles equipped for this configuration, while TrakMotive’s ISO 9001:1007 and TS 16949:2009 certified manufacturing process supports consistent part production.
This part cross-references Cardone New 66-4209 and Cardone Reman 60-4209 for the same application. TrakMotive HO-8186 is also referenced in the aftermarket under related OE-style replacement numbers for these Acura and Honda front left applications.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration caused by axle wear or imbalance
- Torn or deteriorated axle boot conditions
- ABS warning concerns related to a damaged tone ring or axle assembly
- Driveline noise from a failing front left axle shaft
Installation Notes and Tips
Verify front left fitment by year, make, model, spline count, and axle nut specifications before installation. Confirm the ABS configuration matches the vehicle, since ABS axles fit non-ABS applications unless otherwise noted. Inspect the hub, seals, and surrounding suspension components during replacement to help prevent repeat driveline noise or leakage.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The part is produced by an ISO 9001:1007 and TS 16949:2009 certified company, supporting controlled manufacturing and application-specific fitment for Acura RSX and Honda Civic front left service.
| Year | Make | Model | Submodel | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Acura | RSX | Base | — | Front Left | CV Axle Shaft |
| 2005 | Acura | RSX | Base | — | Front Left | CV Axle Shaft |
| 2005 | Honda | Civic | Si | Manual | Front Left | CV Axle Shaft |
| 2005 | Honda | Civic | Reverb | Manual | Front Left | CV Axle Shaft |
| 2004 | Acura | RSX | Base | — | Front Left | CV Axle Shaft |
| 2004 | Honda | Civic | SiR | Manual | Front Left | CV Axle Shaft |
| 2004 | Honda | Civic | Si | Manual | Front Left | CV Axle Shaft |
| 2003 | Acura | RSX | Base | — | Front Left | CV Axle Shaft |
| 2003 | Honda | Civic | SiR | Manual | Front Left | CV Axle Shaft |
| 2003 | Honda | Civic | Si | Manual | Front Left | CV Axle Shaft |
| 2002 | Acura | RSX | Base | — | Front Left | CV Axle Shaft |
| 2002 | Honda | Civic | SiR | Manual | Front Left | CV Axle Shaft |
| 2002 | Honda | Civic | Si | Manual | Front Left | CV Axle Shaft |
| No rows match your filter. | ||||||
