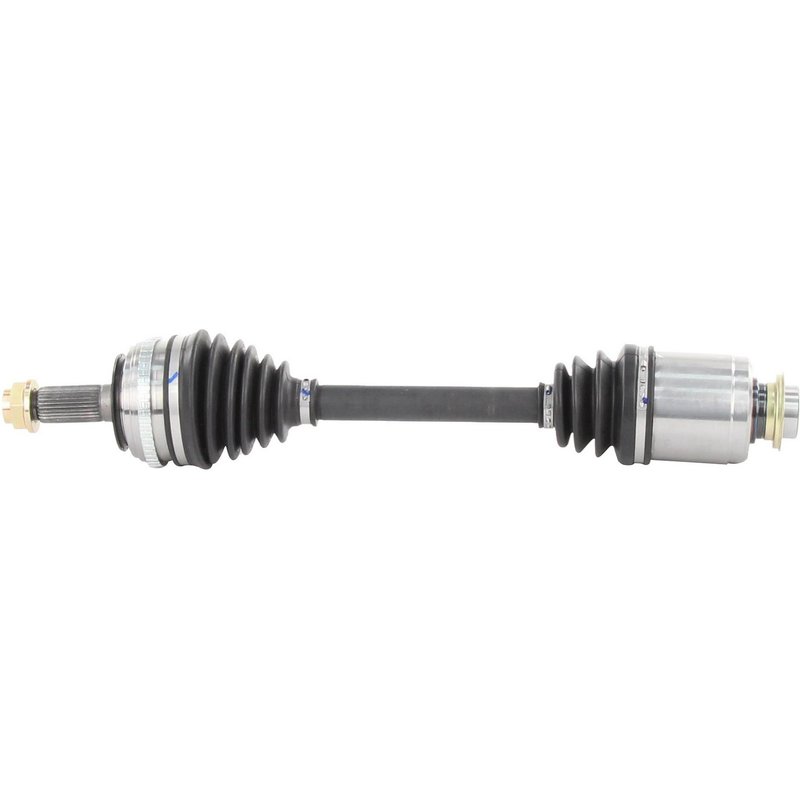

TrakMotive HO-8191 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8191 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27-2T |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.76 |
| Overall Compressed Length (mm) | 578 |
| Product line | CV Axle Shaft |
| Fits | Acura · 5 vehicles |
New axle shaft. Built as a fresh replacement, not remanufactured.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Toothed ring supports accurate wheel speed signal.
Cross-references Cardone Reman 60-4212, National 4019N and TrakMotive HO-8191 for the same application. See all 16.
TrakMotive HO-8191 CV Axle Shaft
The TrakMotive HO-8191 CV axle shaft is a new front right driveline replacement for 2002-2006 Acura RSX applications. Built for direct-fit service, it includes a toothed ABS tone ring and a neoprene boot to support consistent operation in the front axle assembly.
Key Features
- Fits 2002-2006 Acura RSX, front right
- New CV axle shaft for driveline and axle service
- ABS tone ring included with 50-tooth toothed ring design
- Neoprene boot material for the CV joint assembly
- Female inboard joint and conventional outboard joint configuration
- Axle nut included with M24 x 1.5 thread size, stake-lock design
- Overall compressed length: 22.76 in. (578 mm)
- TrakMotive part number HO-8191
Product Details
TrakMotive HO-8191 is a front right CV axle shaft for the 2002-2006 Acura RSX. It is built as a new replacement axle with a female inboard connection, conventional outboard connection, and an overall compressed length of 22.76 inches to match the specified application. The included ABS tone ring uses a 50-tooth toothed design, and the axle nut is supplied with the correct hex head, stake-lock style, and M24 x 1.5 thread specification. This part cross-references Cardone Reman 60-4212 for the same application.
TrakMotive’s CV Axle Shaft line focuses on direct replacement driveline components for passenger vehicles, with application-specific fitment and OE-style construction details. HO-8191 is listed for the Acura RSX front right position and is identified as a new unit rather than remanufactured.
What It Helps Address
- Clicking or popping noises during turns from a worn CV axle
- Vibration or shudder from a damaged axle shaft
- ABS warning concerns related to a failed tone ring
- Grease leakage from a deteriorated CV boot
- Driveline looseness caused by worn axle joints or splines
Installation Notes
Verify front right fitment before installation and confirm axle length, spline count, and ABS tone ring configuration against the original part. The axle nut is included and uses a 35.6 mm hex size with stake locking. Inspect hub, seals, and surrounding suspension components during replacement to help ensure proper operation after installation.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management practices.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Acura | RSX | Type-S | Front Right | CV Axle Shaft |
| 2005 | Acura | RSX | Type-S | Front Right | CV Axle Shaft |
| 2004 | Acura | RSX | Type-S | Front Right | CV Axle Shaft |
| 2003 | Acura | RSX | Type-S | Front Right | CV Axle Shaft |
| 2002 | Acura | RSX | Type-S | Front Right | CV Axle Shaft |
