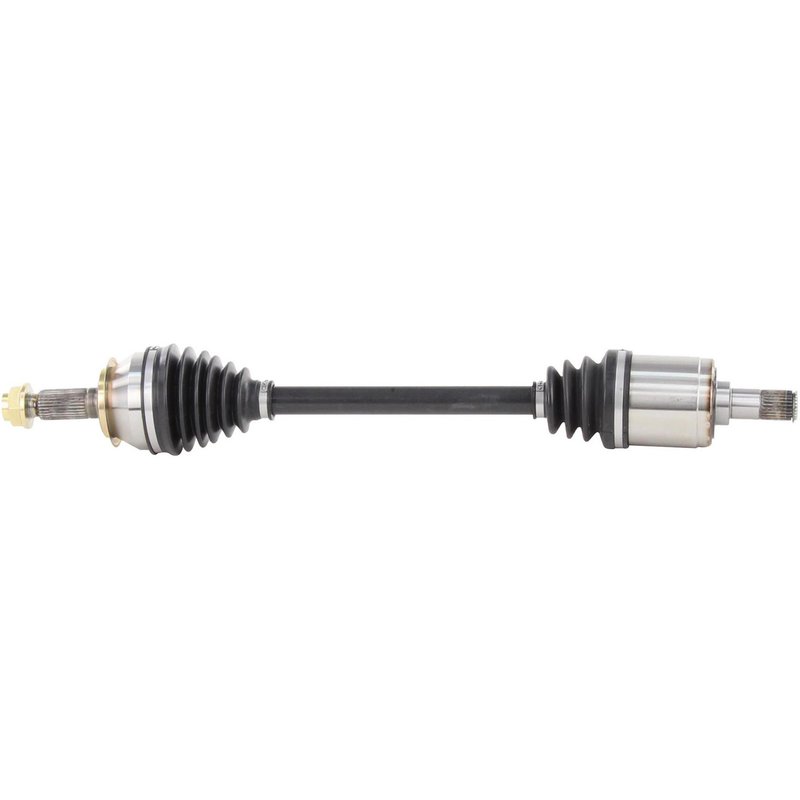

TrakMotive HO-8200 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8200 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.69 |
| Overall Compressed Length (mm) | 678 |
| Product line | CV Axle Shaft |
| Fits | Honda · 14 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for durable sealing.
Axle nut included. Comes ready with a hex nut and stake locking type.
CV axle shaft. Built as a driveline component with male and conventional connections.
Cross-references Cardone New 66-4213, Cardone Reman 60-4213 and Four Seasons 3955N for the same application. See all 18.
Honda Element Front Left CV Axle Shaft
TrakMotive HO-8200 is a new CV axle shaft for the front left position on select 2003-2011 Honda Element models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service.
Key Features
- Fits 2003-2011 Honda Element, front left
- TrakMotive CV Axle Shaft, part number HO-8200
- New axle assembly with 27 inboard splines and 28 outboard splines
- Neoprene boot material for driveline protection
- Includes axle nut with M24 x 1.5 thread size, stake locking type
- Overall compressed length: 26.69 in. (678 mm)
- No ABS tone ring included
Detailed Description
This TrakMotive CV axle shaft is specified for the front left side of the Honda Element and is built for direct replacement service on 2003-2011 applications. The HO-8200 uses a male inboard shaft connection and a conventional outboard shaft connection, along with the listed spline counts and compressed length to match the original driveline layout. TrakMotive positions this CV axle shaft within its CV Axle Shaft line for service parts that follow OE-style fitment requirements.
The axle includes the axle nut and uses a hex head nut with M24 x 1.5 thread size, 35.6 mm hex size, and stake locking type. It is a non-ABS axle assembly with no ABS tone ring included. This part cross-references Monroe Shocks & Struts (e.g., 801686) for the same application.
What This Part Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage from a damaged CV boot
- Driveline looseness caused by spline or joint wear
- Front left axle replacement needs on Honda Element models
Installation Notes and Tips
Verify front left fitment against the vehicle’s drivetrain configuration before installation. Confirm spline count, compressed length, and axle nut thread size against the removed part to ensure proper match-up. Inspect the hub, seals, and surrounding suspension components during service, and torque the axle nut to the vehicle manufacturer’s specification.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part and notes ISO 9001:1007 and TS 16949:2009 certified company manufacturing. The HO-8200 is also backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Honda | Element | LX | Front Left | CV Axle Shaft |
| 2011 | Honda | Element | EX | Front Left | CV Axle Shaft |
| 2010 | Honda | Element | LX | Front Left | CV Axle Shaft |
| 2010 | Honda | Element | EX | Front Left | CV Axle Shaft |
| 2009 | Honda | Element | LX | Front Left | CV Axle Shaft |
| 2009 | Honda | Element | EX | Front Left | CV Axle Shaft |
| 2008 | Honda | Element | LX | Front Left | CV Axle Shaft |
| 2008 | Honda | Element | EX | Front Left | CV Axle Shaft |
| 2007 | Honda | Element | LX | Front Left | CV Axle Shaft |
| 2007 | Honda | Element | EX | Front Left | CV Axle Shaft |
| 2006 | Honda | Element | — | Front Left | CV Axle Shaft |
| 2005 | Honda | Element | — | Front Left | CV Axle Shaft |
| 2004 | Honda | Element | — | Front Left | CV Axle Shaft |
| 2003 | Honda | Element | — | Front Left | CV Axle Shaft |
