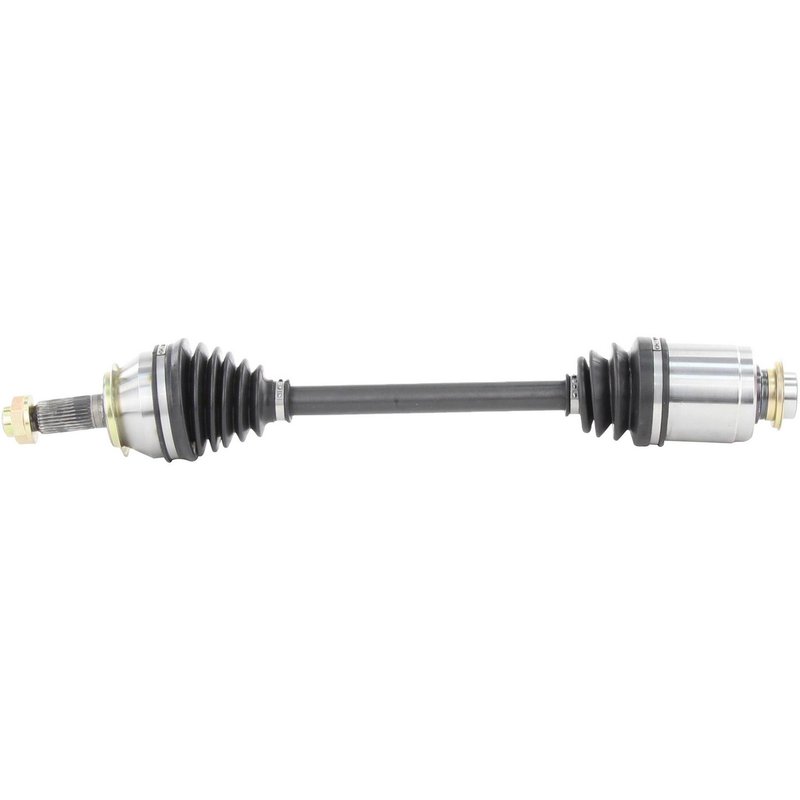

TrakMotive HO-8201 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8201 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27-2T |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.8 |
| Overall Compressed Length (mm) | 630 |
| Product line | CV Axle Shaft |
| Fits | Honda · 14 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Saves time by supplying the matching nut with the shaft.
Cross-references Cardone New 66-4214, Cardone Reman 60-4214 and Monroe Shocks & Struts 801687 for the same application. See all 18.
Honda Element Front Right CV Axle Shaft
TrakMotive HO-8201 is a new CV axle shaft for the front right position on select 2003-2011 Honda Element models. It is built for direct driveline replacement on Honda Element front right applications and includes the axle nut specified for this part.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8201
- Fits 2003-2011 Honda Element, front right
- New replacement axle shaft for driveline service
- Neoprene boot material
- Female inboard joint and female inboard shaft connection style
- Conventional outboard joint and conventional outboard shaft connection style
- No ABS tone ring included
- Axle nut included with M24 x 1.5 thread size and stake locking type
- Overall compressed length: 24.8 in. (630 mm)
Product Details
TrakMotive HO-8201 is part of the CV Axle Shaft line, a driveline and axle product range focused on replacement axle assemblies for passenger vehicles. This axle is specified for the front right side of the Honda Element and uses a 27-2T inboard spline count with 28 outboard splines. The neoprene boot helps protect the joint area, while the conventional outboard joint and female inboard connection support OE-style replacement on the listed application. This part cross-references Monroe Shocks & Struts 801687 for the same application.
Common Replacement Uses
- Replacing a worn or noisy front right CV axle on a 2003-2011 Honda Element
- Addressing clicking during turns caused by CV joint wear
- Correcting vibration or shudder from a damaged axle shaft
- Restoring driveline function after boot failure or grease loss
- Servicing a front right axle with spline or joint wear
Installation Notes
Verify front right fitment against the vehicle year and application before installation. Confirm axle nut thread size, spline count, and compressed length match the original part. Because this axle does not include an ABS tone ring, it is intended for non-ABS applications unless otherwise noted in the vehicle listing. Use proper torque procedures and stake the axle nut as required by the application.
Quality Assurance
TrakMotive states this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also identifies ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management standards.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Honda | Element | LX | Front Right | CV Axle Shaft |
| 2011 | Honda | Element | EX | Front Right | CV Axle Shaft |
| 2010 | Honda | Element | LX | Front Right | CV Axle Shaft |
| 2010 | Honda | Element | EX | Front Right | CV Axle Shaft |
| 2009 | Honda | Element | LX | Front Right | CV Axle Shaft |
| 2009 | Honda | Element | EX | Front Right | CV Axle Shaft |
| 2008 | Honda | Element | LX | Front Right | CV Axle Shaft |
| 2008 | Honda | Element | EX | Front Right | CV Axle Shaft |
| 2007 | Honda | Element | LX | Front Right | CV Axle Shaft |
| 2007 | Honda | Element | EX | Front Right | CV Axle Shaft |
| 2006 | Honda | Element | — | Front Right | CV Axle Shaft |
| 2005 | Honda | Element | — | Front Right | CV Axle Shaft |
| 2004 | Honda | Element | — | Front Right | CV Axle Shaft |
| 2003 | Honda | Element | — | Front Right | CV Axle Shaft |
