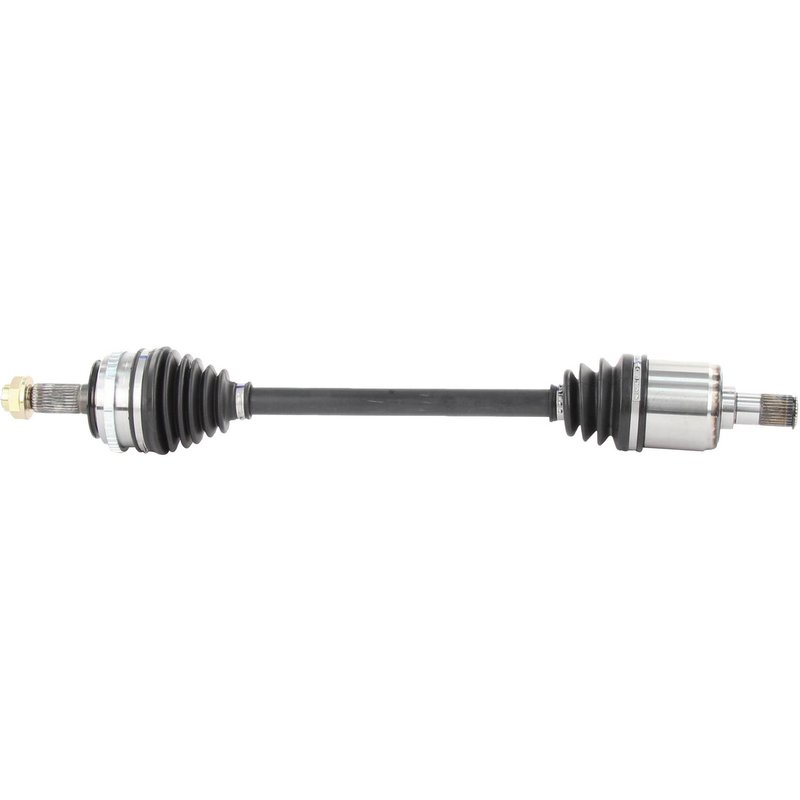

TrakMotive HO-8202 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8202 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 27.93 |
| Overall Compressed Length (mm) | 709.5 |
| Product line | CV Axle Shaft |
| Fits | Honda and Acura · 4 vehicles |
New replacement shaft. Built as a new CV axle shaft for dependable driveline service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Comes with a toothed ring for ABS-equipped applications.
Cross-references Cardone New 66-4202, Cardone Reman 60-4202 and TrakMotive HO-8202 for the same application. See all 21.
TrakMotive HO-8202 CV Axle Shaft
The TrakMotive HO-8202 CV axle shaft is a new front left driveline replacement for select Acura MDX and Honda Pilot applications. Built as a CV axle shaft for the front left position, it supports smooth power transfer while matching the vehicle-specific spline, ABS, and axle nut requirements listed below.
Key Features
- Brand: TrakMotive CV Axle Shaft line
- Part number: HO-8202
- New replacement axle shaft for the front left position
- Fits 2001-2002 Acura MDX, front left
- Fits 2003-2004 Honda Pilot, front left
- 29 inboard splines and 28 outboard splines
- Neoprene boot material
- ABS tone ring included with 50-tooth toothed ring
- Axle nut included; M24 x 1.5 thread, stake locking type
- Overall compressed length: 27.93 in. (709.5 mm)
Product Details
The TrakMotive CV Axle Shaft product line focuses on direct-fit driveline replacement parts for passenger vehicles. HO-8202 is engineered for the front left side and includes the axle nut and ABS tone ring details required for the listed applications. This axle is specified with a male inboard joint, conventional outboard joint, neoprene boot material, and the exact spline counts needed for the 2001-2002 Acura MDX and 2003-2004 Honda Pilot. This part cross-references Cardone New 66-4202 and Cardone Reman 60-4202 for the same application.
Common Problems This Part Can Address
- Clicking or popping during turns caused by a worn CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated CV boot
- ABS warning concerns related to a failed tone ring or axle sensor interface
- Driveline noise from excessive axle wear in the front left position
Installation Notes and Tips
Verify vehicle fitment by year, make, model, and front left position before installation. Confirm the axle nut thread size, spline counts, and ABS ring configuration match the original part on the vehicle. Inspect related components such as hub bearings, seals, and suspension hardware for wear before installing the new axle shaft. Torque fasteners to the vehicle manufacturer’s specifications and follow proper axle nut staking procedures where required.
Quality Assurance
TrakMotive lists this axle shaft as a new part and backs it with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for driveline components.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Honda | Pilot | Front Left | CV Axle Shaft |
| 2003 | Honda | Pilot | Front Left | CV Axle Shaft |
| 2002 | Acura | MDX | Front Left | CV Axle Shaft |
| 2001 | Acura | MDX | Front Left | CV Axle Shaft |
