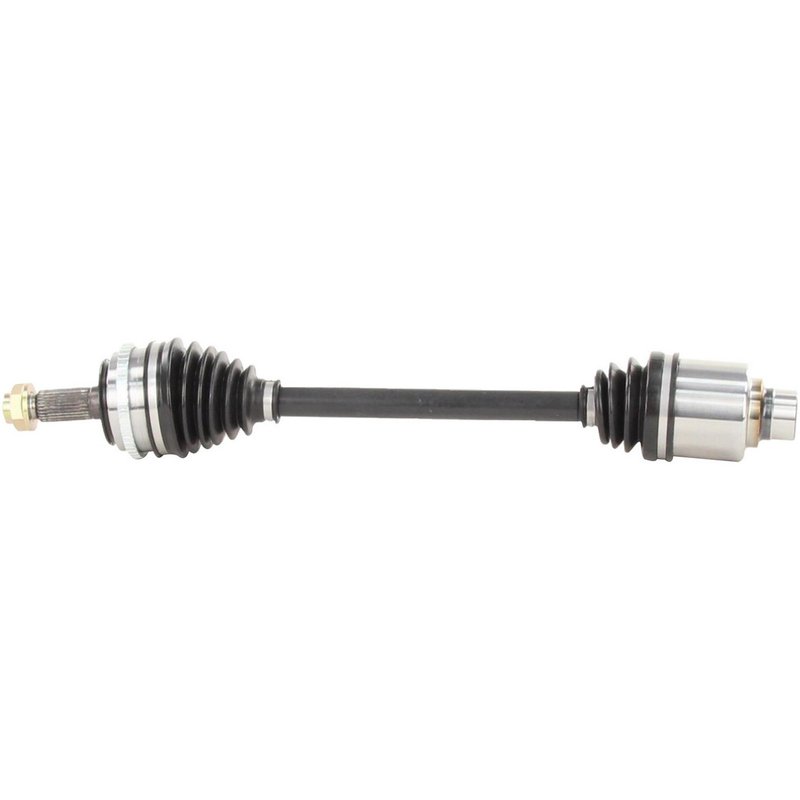

TrakMotive HO-8203 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HO-8203

The TrakMotive CV Axle Shaft HO-8203 is engineered for reliable driveline performance in Acura MDX and Honda Pilot vehicles. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Acura MDX and Honda Pilot models
• Includes a neoprene boot for enhanced joint protection
• Equipped with a 50-tooth ABS ring and included tone ring
• Features a hex head axle nut with stake locking mechanism
• Overall compressed length of 25.75 inches (654 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This CV axle shaft model HO-8203 incorporates key features such as a female inboard joint and conventional outboard joint, ensuring compatibility and smooth power transfer. The inclusion of a toothed ABS ring with 50 teeth and a tone ring supports accurate wheel speed sensor readings, critical for ABS functionality.

Technical Specifications and Features

This CV axle shaft is designed with a neoprene boot material that offers resistance to wear and environmental factors, extending the life of the joint. The axle nut included is a hex type with a 1-inch height (23 mm), 1 2/5 inch (35.6 mm) hex size, and a length of 1 1/2 inches (37.53 mm). It uses an M24*1.5 thread size and a stake locking type to secure the axle firmly in place. The inboard shaft connection is female with 29-2t splines, while the outboard shaft connection is conventional with 28 splines, ensuring proper engagement and torque transfer.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Acura MDX and Honda Pilot
• Resolves issues related to torn or leaking CV boots
• Addresses ABS sensor errors caused by faulty or missing tone rings
• Eliminates axle vibration or clicking noises during turns
• Restores proper driveline function and vehicle stability

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HO-8203, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to avoid premature failure. This part is designed for direct replacement on compatible Acura MDX and Honda Pilot models, facilitating a straightforward installation process.

Quality Assurance and Warranty

TrakMotive manufactures this CV Axle Shaft as a new component, adhering to strict quality standards to ensure durability and performance. The inclusion of OEM-style features such as the ABS tone ring and stake locking axle nut supports reliable operation. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
