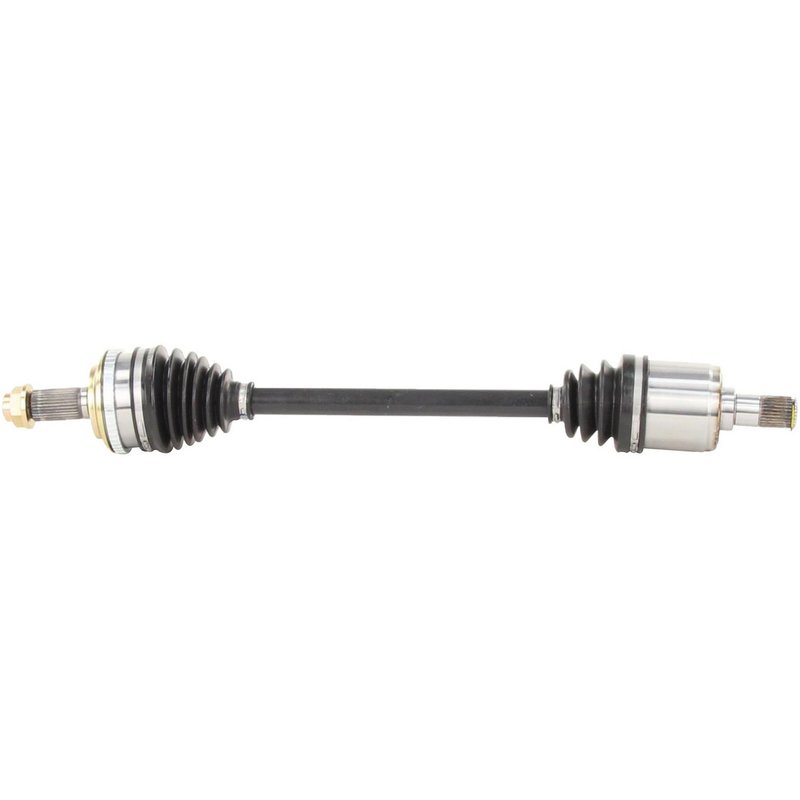

TrakMotive HO-8211 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HO-8211

The TrakMotive CV Axle Shaft HO-8211 is engineered for reliable driveline performance in Acura MDX and Honda Pilot vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures smooth power transfer and durability under various driving conditions.

• Compatible with Acura MDX and Honda Pilot models
• Includes a 50-tooth ABS ring with a toothed design for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Comes with a hex head axle nut featuring a stake locking mechanism
• Overall compressed length of 27.99 inches (711 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to restore driveline integrity. This line emphasizes compatibility with specific vehicle makes and models, such as Acura and Honda, ensuring that each axle shaft meets exacting standards for joint types, spline counts, and connection styles. The HO-8211 model features a male inboard joint and a conventional outboard joint, aligning with factory specifications for the MDX and Pilot.

Technical Specifications and Features

This CV axle shaft includes a 50-tooth ABS tone ring that is toothed and integrated into the assembly, providing reliable ABS sensor feedback. The axle nut is a hex type with a 1 1/3 inch (34.6 mm) hex size and a height of 1 inch (23 mm), secured by a stake locking method to prevent loosening. The neoprene boot material offers resistance to wear and environmental damage, extending the life of the joint. The inboard shaft connection is male with 29 splines, while the outboard shaft connection is conventional with 30 splines, ensuring proper engagement and torque transfer.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Acura MDX and Honda Pilot
• Resolves issues related to clicking or popping noises during turns
• Addresses vibration or shuddering caused by joint wear
• Fixes ABS sensor errors due to faulty or missing tone rings
• Prevents grease leaks and contamination with durable neoprene boots

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HO-8211, ensure the axle nut is torqued to manufacturer specifications and properly staked to secure the locking mechanism. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to prevent premature failure. This part is designed for direct replacement on compatible Acura MDX and Honda Pilot models, facilitating a straightforward installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HO-8211 is a new, not remanufactured, component built to meet or exceed OEM standards. It undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
