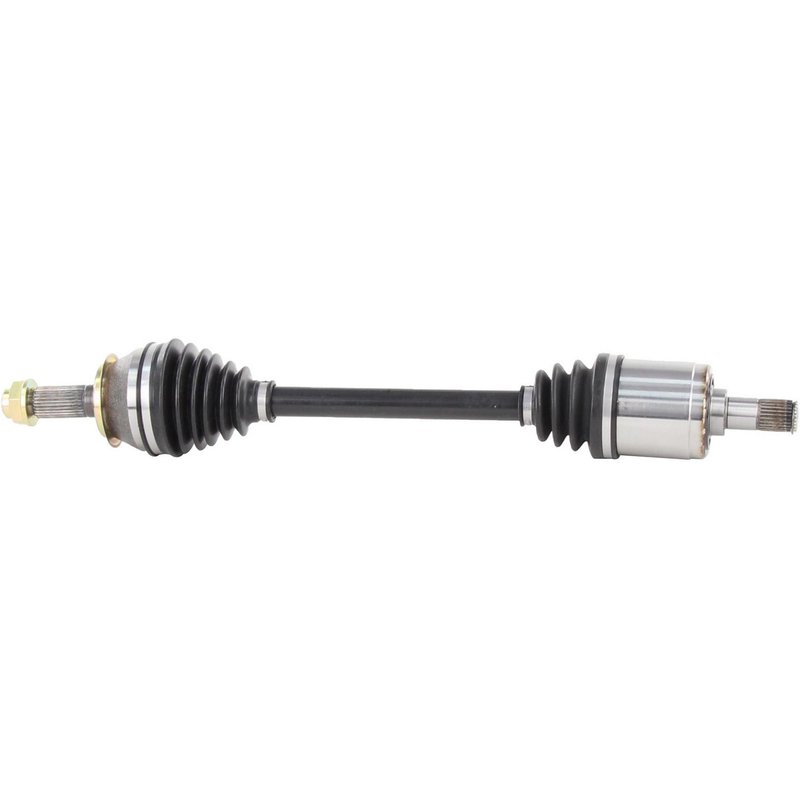

TrakMotive HO-8212 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8212 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.79 |
| Overall Compressed Length (mm) | 655 |
| Product line | CV Axle Shaft |
| Fits | Acura · 5 vehicles |
New replacement part. Built as a new CV axle shaft for dependable service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Comes with a hex nut and stake locking type.
Cross-references Cardone New 66-4242, Cardone Reman 60-4242 and Protech CV HO20519 for the same application. See all 14.
Front Left CV Axle Shaft for Acura TSX
Restore smooth power transfer and dependable front-end driveline performance with this TrakMotive CV Axle Shaft, part number HO-8212. It is built for the 2004-2008 Acura TSX front left position and includes the axle nut for a direct replacement on the specified application.
Key Features
- TrakMotive CV Axle Shaft, part number HO-8212
- Fits 2004-2008 Acura TSX, front left
- New axle assembly with neoprene boot material
- Male inboard shaft connection with conventional outboard joint type
- 27 inboard splines and 28 outboard splines
- Overall compressed length: 25.79 in. (655 mm)
- Axle nut included; hex head, M24 x 1.5 thread
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft is a direct-fit driveline replacement for the front left side of the Acura TSX. The HO-8212 is engineered as a new assembly with a neoprene boot, male inboard connection, and conventional outboard joint design to match the listed application. It cross-references Cardone New 66-4242 and Cardone Reman 60-4242 for the same application. The HO-8212 is also listed for the 2004-2008 Acura TSX front left position, making it a focused replacement choice for driveline service on this platform.
Common Issues This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration felt through the steering wheel or floor during acceleration
- Grease leakage from a damaged axle boot
- Clunking or looseness caused by axle wear
- Loss of smooth power delivery to the front wheels
Installation Notes and Tips
Verify spline count, compressed length, and axle nut thread size before installation. This axle uses a stake-style axle nut with a 35.6 mm hex size and M24 x 1.5 thread. ABS tone ring is not included, so confirm the vehicle’s ABS configuration before ordering. For best results, inspect related suspension and hub components during replacement and torque all fasteners to factory specifications.
Quality Assurance
TrakMotive identifies this CV axle shaft as a new part and notes ISO 9001:1007 and TS 16949:2009 certified company standards. The manufacturer also backs this part with a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Acura | TSX | Front Left | CV Axle Shaft |
| 2007 | Acura | TSX | Front Left | CV Axle Shaft |
| 2006 | Acura | TSX | Front Left | CV Axle Shaft |
| 2005 | Acura | TSX | Front Left | CV Axle Shaft |
| 2004 | Acura | TSX | Front Left | CV Axle Shaft |
