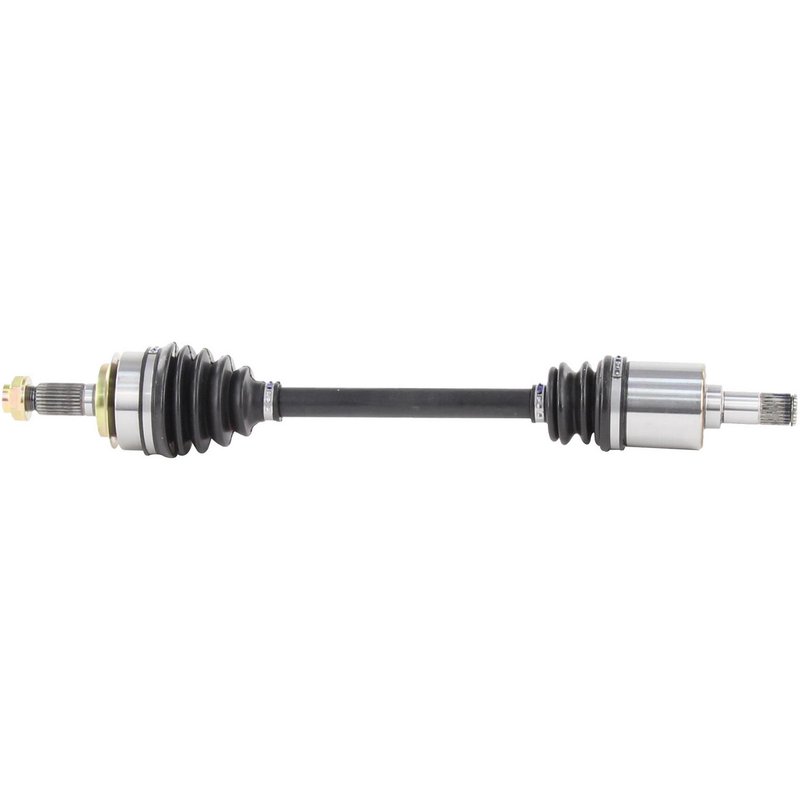

TrakMotive HO-8219 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8219 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.41 |
| Overall Compressed Length (mm) | 620 |
| Product line | CV Axle Shaft |
| Fits | Honda · 7 vehicles |
New axle shaft. Freshly manufactured for dependable driveline replacement.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Saves time by supplying the matching hardware.
Cross-references Cardone New 66-4232, Cardone Reman 60-4232 and GSP NCV36568 for the same application. See all 18.
CV Axle Shaft for Honda Civic Front Left
TrakMotive HO-8219 is a new CV axle shaft for the front left position on select Honda Civic applications. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint to support driveline operation in the 2006-2011 Honda Civic platform.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8219
- New replacement axle shaft
- Front left position
- Neoprene boot material
- Male inboard shaft connection style
- Conventional outboard shaft connection style
- Includes axle nut with stake locking type
- Axle nut thread size: M22 x 1.5
- No ABS tone ring included
- Overall compressed length: 24.41 in. (620 mm)
- 25 inboard splines and 26 outboard splines
Detailed Description
This TrakMotive CV axle shaft is engineered for front left Honda Civic service where a direct replacement axle is needed for driveline repair. The HO-8219 uses a neoprene boot for joint protection, a male inboard shaft connection, and a conventional outboard joint layout. It also includes the axle nut specified for the assembly, with a 31.8 mm hex size and M22 x 1.5 thread size. TrakMotive identifies this axle as a new part and notes that ABS axles can be used in non-ABS applications unless otherwise noted. This part cross-references Cardone New 66-4232 and GSP NCV36568 for the same application.
Vehicle Fitment
- Fits 2006-2011 Honda Civic, front left.
- Fits 2010 Honda Civic, front left, automatic.
What It Helps Repair
- Clicking or popping during turns caused by worn CV joints
- Vibration from a damaged or unbalanced axle shaft
- Grease leakage from a torn or deteriorated boot
- Driveline noise from excessive spline or joint wear
- Loss of smooth power transfer to the front wheels
Installation Notes
Verify spline count, axle length, and axle nut specifications before installation. Confirm whether the vehicle is equipped with ABS and compare the original axle configuration to the replacement part. For Honda Civic front left axle replacement, follow factory torque procedures and inspect related seals, hub components, and suspension hardware during service.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management practices.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2011 | Honda | Civic | EX | Automatic | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2010 | Honda | Civic | EX-L | — | 1.8L | L4 | Front Left | Automatic; CV Axle Shaft |
| 2010 | Honda | Civic | EX | Automatic | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2009 | Honda | Civic | — | Automatic | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2008 | Honda | Civic | — | Automatic | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2007 | Honda | Civic | — | Automatic | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2006 | Honda | Civic | — | Automatic | 1.8L | L4 | Front Left | CV Axle Shaft |
