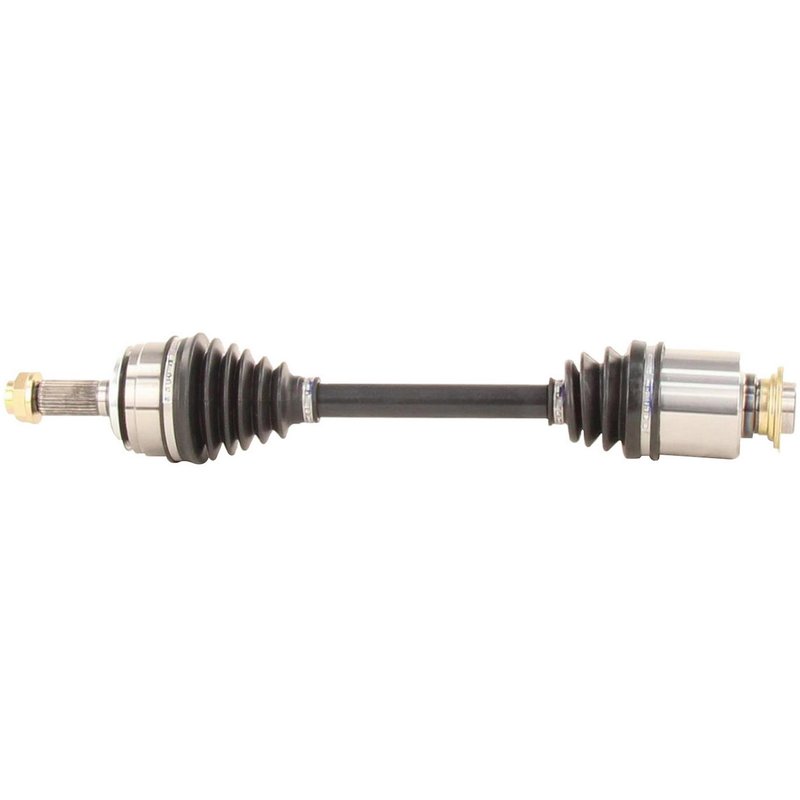

TrakMotive HO-8224 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8224 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27-2T |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.39 |
| Overall Compressed Length (mm) | 594 |
| Product line | CV Axle Shaft |
| Fits | Honda and Acura · 10 vehicles |
New axle shaft. Fresh replacement part for driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Conveniently supplied for a more complete install.
Cross-references Cardone New 66-4239, TrakMotive HO-8224 and 80-3258 for the same application. See all 16.
Honda Civic Front Right CV Axle Shaft
TrakMotive HO-8224 is a new CV axle shaft for front right applications on select Honda Civic and Acura CSX models. It is built with a neoprene boot, a female inboard connection, and a conventional outboard joint for direct driveline service on the listed vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8224
- New axle shaft for front right placement
- Neoprene boot material
- Female inboard shaft connection style
- Conventional outboard shaft connection style
- Axle nut included with stake locking type
- Axle nut thread size: M24 x 1.5
- No ABS tone ring included
- Overall compressed length: 23.39 in. (594 mm)
Product Details
TrakMotive HO-8224 is a CV axle shaft for 2006-2011 Honda Civic front right applications and 2007-2010 Acura CSX front right applications, including 2008-2010 Acura CSX models with VIN 9 at the 8th digit. The axle uses a female inboard joint, a conventional outboard joint, and a neoprene boot to support driveline operation in the specified fitments. This part cross-references Cardone New 66-4239 for the same application.
What This Axle Shaft Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration from a damaged or bent axle shaft
- Grease leakage from a torn or deteriorated boot
- Driveline noise from excessive joint wear
- Front right axle replacement needs on Honda Civic and Acura CSX models
Installation Notes
Verify front right fitment, axle nut thread size, and spline count before installation. Confirm whether the vehicle is equipped for the listed application, especially on Acura CSX models with VIN 9 at the 8th digit. Inspect related hub, seal, and suspension components during service to help prevent repeat driveline issues.
Quality Assurance
TrakMotive identifies this axle shaft as a new part and states that its CV axle products are backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2011 | Honda | Civic | — | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2010 | Acura | CSX | Type-S | — | — | Front Right | VIN 9 (8th Digit); CV Axle Shaft |
| 2010 | Honda | Civic | — | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2009 | Acura | CSX | Type-S | — | — | Front Right | VIN 9 (8th Digit); CV Axle Shaft |
| 2009 | Honda | Civic | — | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2008 | Acura | CSX | Type-S | — | — | Front Right | VIN 9 (8th Digit); CV Axle Shaft |
| 2008 | Honda | Civic | — | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2007 | Acura | CSX | Type-S | — | — | Front Right | CV Axle Shaft |
| 2007 | Honda | Civic | — | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2006 | Honda | Civic | — | 2.0L | L4 | Front Right | CV Axle Shaft |
