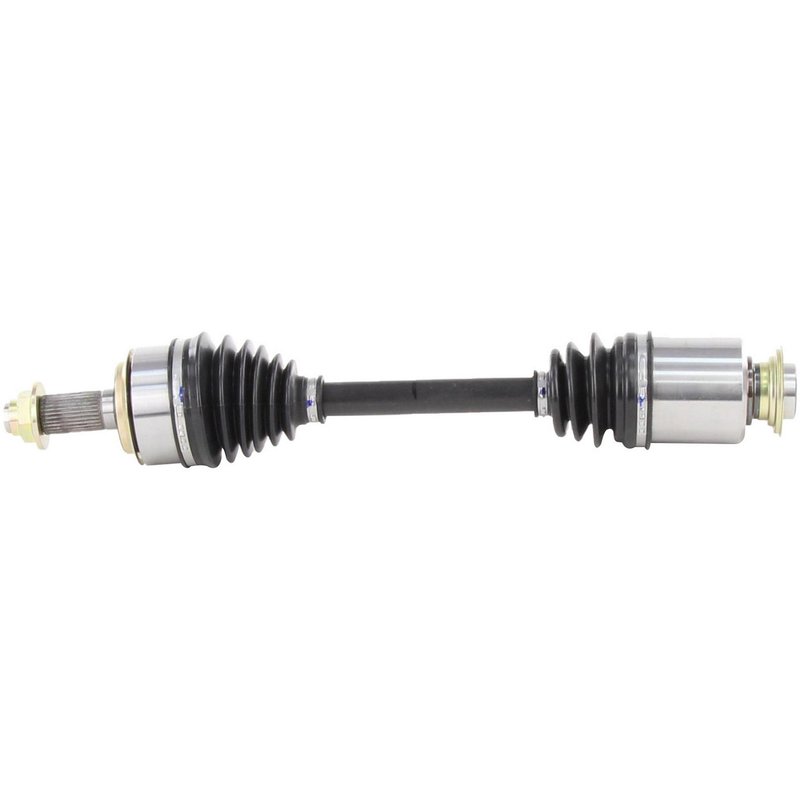

TrakMotive HO-8227 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HO-8227 for Acura RDX

The TrakMotive CV Axle Shaft HO-8227 is designed specifically for Acura RDX models, providing reliable driveline performance. This new CV axle shaft ensures proper power transfer from the transmission to the wheels, maintaining smooth vehicle operation.

• Compatible with Acura RDX vehicles
• New, not remanufactured, for consistent quality
• Includes axle nut with stake locking type
• Neoprene boot material for durability and protection
• Overall compressed length of 22.13 inches (562 mm)
• Hex head axle nut with M26*1.5 thread size
• Female inboard joint and conventional outboard joint types

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components engineered for precise fitment and durability. This line includes shafts with neoprene boots to resist wear and contamination, and features both female inboard shaft connections and conventional outboard joints to match factory specifications. The HO-8227 part exemplifies this line’s commitment to quality and compatibility with Acura RDX driveline systems.

Technical Specifications and Features

The HO-8227 CV axle shaft features a neoprene boot that offers resistance to environmental elements, extending the life of the joint. The inboard joint uses a female connection style with 29-2t splines, while the outboard joint is conventional with 30 splines, ensuring proper engagement and torque transfer. The included axle nut is a hex head type, measuring 1 1/3 inches (34.6 mm) across the flats, with a height of 1 inch (23 mm) and a length of 1 4/7 inches (40 mm). It uses a stake locking mechanism and has an M26*1.5 thread size, providing secure fastening during installation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Acura RDX
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration or shuddering issues related to axle imbalance
• Prevents grease leaks by maintaining boot integrity
• Restores proper driveline function after axle shaft failure

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HO-8227 on an Acura RDX, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Inspect the axle shaft splines for damage before installation to guarantee a secure fit. The neoprene boot should be checked for any tears or punctures during assembly to maintain joint protection. It is recommended to use appropriate tools for hex head axle nut removal and installation to avoid rounding off the nut.

Quality Assurance and Warranty

This CV axle shaft is a new component manufactured to meet OEM standards for fit and function. TrakMotive provides quality assurance through rigorous testing and material selection. While specific warranty details are not provided here, new parts typically come with a limited warranty covering defects in materials and workmanship. Always verify warranty terms with the supplier or manufacturer.
