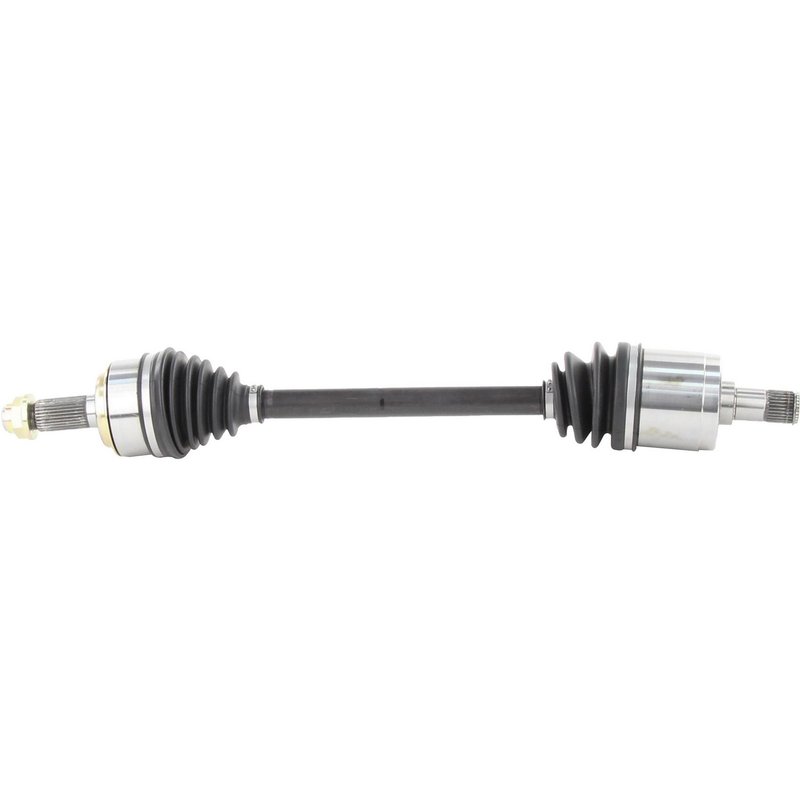

TrakMotive HO-8230 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8230 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 27.6 |
| Overall Compressed Length (mm) | 701 |
| Product line | CV Axle Shaft |
| Fits | Honda · 2 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Comes ready with the hardware needed for installation.
Cross-references Cardone New 66-4224, Cardone Reman 60-4224 and TrakMotive HO-8230 for the same application. See all 14.
Honda Odyssey Front Left CV Axle Shaft
TrakMotive HO-8230 is a new CV axle shaft for the front left position on 2005-2006 Honda Odyssey models. Built for direct driveline replacement, it includes the axle nut and uses a conventional outboard joint with a male inboard connection.
Key Features
- Fits 2005-2006 Honda Odyssey, front left
- TrakMotive CV Axle Shaft, part number HO-8230
- New axle assembly for driveline and axle service
- Male inboard shaft connection with 29 inboard splines
- Conventional outboard joint with 30 outboard splines
- Neoprene boot material for axle boot protection
- Axle nut included; hex head, stake locking type, M26 x 1.5 thread
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft is built for the front left side of the 2005-2006 Honda Odyssey and matches the listed OE-style fitment for those applications. The HO-8230 uses a male inboard shaft connection, a conventional outboard joint, and a 27.6-inch compressed overall length to support proper driveline geometry. It also includes a neoprene boot and axle nut for service replacement work. This part cross-references Cardone New 66-4224 for the same application.
Common Repair Applications
- Front axle noise or vibration during acceleration
- Clicking or popping from the front left driveline area during turns
- Damaged CV boot or grease loss at the axle assembly
- Worn splines or joint wear affecting power transfer
- Replacement after axle shaft failure on a 2005-2006 Honda Odyssey
Installation Notes
Verify front left fitment before installation and confirm axle nut thread size, spline count, and compressed length against the original part. Inspect the hub, seals, and surrounding suspension components during replacement, and torque the axle nut to the vehicle manufacturer’s specification. Because this axle does not include an ABS tone ring, confirm the vehicle’s ABS configuration before ordering.
Quality Assurance
TrakMotive identifies this as a new CV axle shaft backed by a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management practices.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Honda | Odyssey | Front Left | CV Axle Shaft |
| 2005 | Honda | Odyssey | Front Left | CV Axle Shaft |
