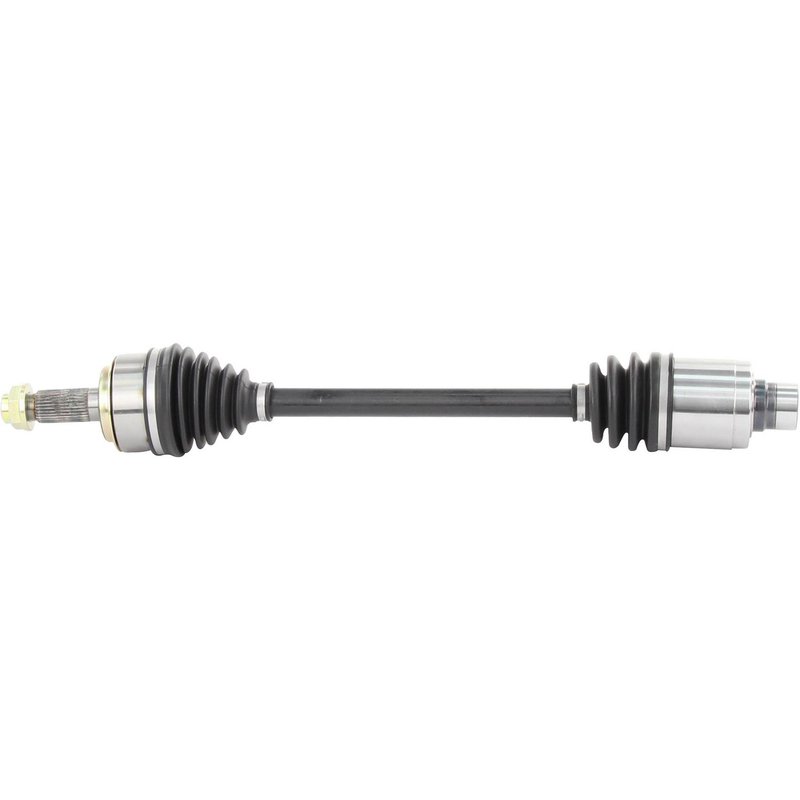

TrakMotive HO-8231 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8231 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29-2T |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 27.01 |
| Overall Compressed Length (mm) | 686 |
| Product line | CV Axle Shaft |
| Fits | Honda · 4 vehicles |
New assembly. Ready for a straightforward replacement with no remanufactured parts.
Neoprene boot. Helps protect the CV joint from dirt and moisture.
Includes axle nut. Conveniently supplied with the hardware needed for installation.
Cross-references Cardone Reman 60-4225, TrakMotive HO-8231 and 80-4806 for the same application. See all 13.
Honda Odyssey Front Right CV Axle Shaft
TrakMotive HO-8231 is a new CV axle shaft for the front right position on select 2007-2010 Honda Odyssey models. It is built with a neoprene boot, a female inboard connection, and a conventional outboard joint for direct driveline replacement service.
Key Features
- Fits 2007-2010 Honda Odyssey, front right
- TrakMotive CV Axle Shaft, part number HO-8231
- New axle assembly with 27.01 in. overall compressed length
- Neoprene boot material for driveline protection
- Female inboard shaft connection with conventional outboard shaft connection
- Axle nut included; hex head, stake-lock style, M26 x 1.5 thread
- No ABS tone ring included
- ISO 9001:1007 and TS 16949:2009 certified manufacturing
Product Details
HO-8231 is a TrakMotive CV axle shaft for the front right side of the Honda Odyssey. It uses 29-2T inboard splines and 30 outboard splines, with a 34.6 mm axle nut hex size and 40 mm nut length. The axle is supplied new, not remanufactured, and is built for applications that require a conventional outboard joint and female inboard connection. This part cross-references Cardone Reman 60-4225 for the same application.
What This Axle Helps Address
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration caused by axle wear
- Torn or leaking CV boots that expose the joint to contamination
- Excessive driveline play in the front right axle assembly
- Loss of smooth power transfer to the wheel
Installation Notes and Tips
Verify front right fitment before installation on 2007-2010 Honda Odyssey vehicles. Confirm spline count, axle nut thread size, and compressed length against the original axle. Replace the axle nut during service if required by the vehicle procedure, and torque all fasteners to factory specifications. Because this axle does not include an ABS tone ring, confirm the vehicle’s ABS configuration before ordering.
Quality Assurance
TrakMotive manufactures this CV axle shaft in an ISO 9001:1007 and TS 16949:2009 certified facility. The HO-8231 is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Honda | Odyssey | Front Right | CV Axle Shaft |
| 2009 | Honda | Odyssey | Front Right | CV Axle Shaft |
| 2008 | Honda | Odyssey | Front Right | CV Axle Shaft |
| 2007 | Honda | Odyssey | Front Right | CV Axle Shaft |
