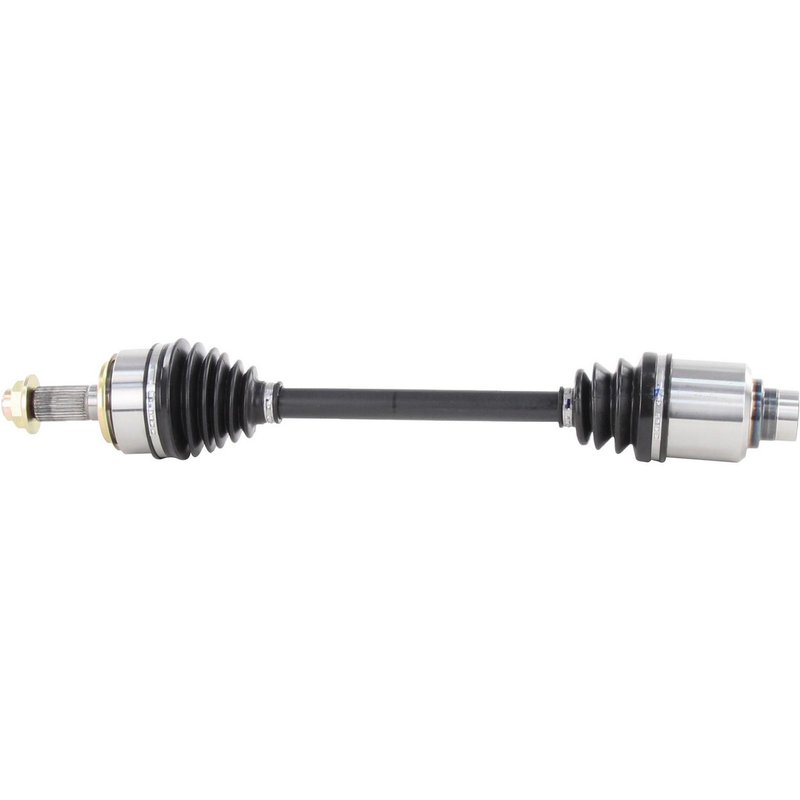

TrakMotive HO-8235 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8235 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29-2T |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.92 |
| Overall Compressed Length (mm) | 633 |
| Product line | CV Axle Shaft |
| Fits | Acura · 7 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for dependable driveline service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Conveniently supplied with a hex nut and stake locking type.
Cross-references Cardone New 66-4266, TrakMotive HO-8235 and 80-3248 for the same application. See all 11.
TrakMotive HO-8235 CV Axle Shaft
The TrakMotive HO-8235 CV axle shaft is a new front right driveline replacement for select Acura applications. It is built with a neoprene boot, a female inboard connection, and a conventional outboard joint for direct service on the specified vehicles.
Compatible with 2009-2011 Acura TL front right and 2005-2008 Acura RL front right, this CV axle shaft is a fitment-specific replacement for common front-end driveline service needs. The HO-8235 also includes the axle nut and uses a stake-style locking design with M26 x 1.5 thread size.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8235
- New replacement axle shaft
- Front right position
- Neoprene boot material
- Female inboard joint and female inboard shaft connection
- Conventional outboard joint with spline shaft connection
- Axle nut included; hex head, stake locking type
- No ABS tone ring included
- Overall compressed length: 24.92 in. (633 mm)
Product Details
TrakMotive HO-8235 is a CV axle shaft for Acura TL and Acura RL front right applications where the original axle has worn splines, joint play, or boot failure. The axle is configured with 29-2T inboard splines and 30 outboard splines, and it measures 24.92 inches compressed length for the listed fitments. TrakMotive identifies this part as a new unit, and the brand notes that ABS axles fit non-ABS applications unless otherwise noted.
This part cross-references Cardone New 66-4266 for the same application. The HO-8235 is also listed among interchange references for related OE and aftermarket numbers, making it a practical search match when sourcing a replacement CV axle shaft for Acura TL or Acura RL front right service.
Common Repair Uses
- Front-end clicking or popping during turns
- Vibration from a worn or damaged axle shaft
- Torn CV boot with grease loss
- Excessive play in the axle joint
- Replacement after spline or joint wear
Installation Notes
Verify vehicle year, model, and front right position before installation. Confirm axle nut thread size, spline count, and compressed length against the original part to ensure proper fit on the Acura TL or Acura RL application. Inspect related suspension and hub components during service, and follow factory torque procedures for the axle nut and fasteners.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The company states that it is ISO 9001:1007 and TS 16949:2009 certified, supporting controlled manufacturing and product consistency for driveline replacement parts.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2011 | Acura | TL | FWD | 3.5L | V6 | Front Right | Outer Assembly; CV Axle Shaft |
| 2010 | Acura | TL | FWD | 3.5L | V6 | Front Right | Outer Assembly; CV Axle Shaft |
| 2009 | Acura | TL | FWD | 3.5L | V6 | Front Right | Outer Assembly; CV Axle Shaft |
| 2008 | Acura | RL | AWD | 3.5L | V6 | Front Right | Outer Assembly; CV Axle Shaft |
| 2007 | Acura | RL | AWD | 3.5L | V6 | Front Right | Outer Assembly; CV Axle Shaft |
| 2006 | Acura | RL | AWD | 3.5L | V6 | Front Right | Outer Assembly; CV Axle Shaft |
| 2005 | Acura | RL | AWD | 3.5L | V6 | Front Right | Outer Assembly; CV Axle Shaft |
