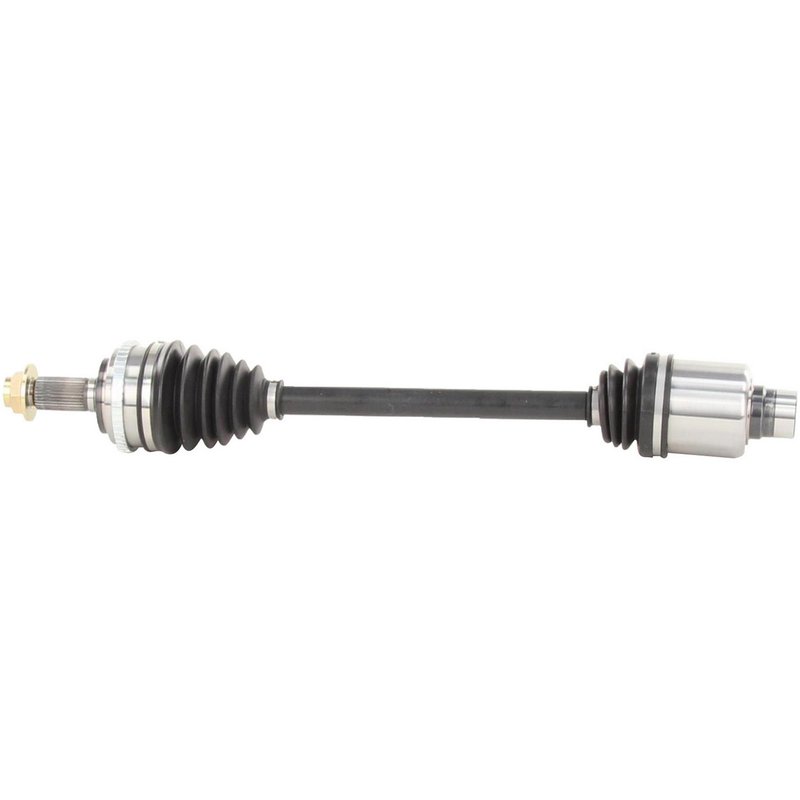

TrakMotive HO-8237 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8237 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29-2T |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.65 |
| Overall Compressed Length (mm) | 677 |
| Product line | CV Axle Shaft |
| Fits | Honda · 1 vehicle |
New axle shaft. Built with neoprene boot material for dependable CV protection.
ABS tone ring included. Toothed ring with 50 teeth for integrated wheel-speed sensing.
Axle nut included. Hex nut with stake locking for secure installation.
Cross-references Cardone New 66-4241, Cardone Reman 60-4241 and Four Seasons 3988N for the same application. See all 14.
Honda Pilot Front Right CV Axle Shaft
TrakMotive HO-8237 is a new CV axle shaft for the front right position on the 2005 Honda Pilot. It is built for direct driveline replacement on this application, with fitment details that match the vehicle’s axle and ABS requirements.
Key Features
- Fits 2005 Honda Pilot, front right
- New CV axle shaft for driveline and axle service
- ABS tone ring included with 50-tooth toothed ring
- Neoprene boot material for joint protection
- Female inboard connection with conventional outboard joint
- Includes axle nut with M26 x 1.5 thread, stake locking type
- Overall compressed length: 26.65 in. (677 mm)
- TrakMotive HO-8237
Product Details
TrakMotive HO-8237 is a CV axle shaft for the front right side of the 2005 Honda Pilot. The axle uses a female inboard shaft connection, a conventional outboard shaft connection, and a 29-2T inboard spline count with 30 outboard splines. It also includes an ABS tone ring with a toothed 50-tooth design, making it appropriate for ABS-equipped service where specified. TrakMotive HO-8237 is part of the CV Axle Shaft line and is built as a new replacement unit rather than a remanufactured assembly.
This part cross-references Cardone New 66-4241 and Four Seasons 3988N for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Torn boot or grease loss at the axle shaft
- ABS warning concerns tied to a damaged tone ring area
- Driveline noise from a worn front right axle assembly
Installation Notes
Verify spline count, axle length, nut thread size, and ABS tone ring configuration before installation. The axle nut is included and uses an M26 x 1.5 thread with a stake-style locking design. Confirm the vehicle’s front right application and compare the removed axle to HO-8237 before assembly. For best results, inspect related hub, bearing, and seal surfaces during service.
Quality Assurance
TrakMotive states that this CV axle shaft is produced by an ISO 9001:1007 and TS 16949:2009 certified company. It is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Honda | Pilot | Front Right | CV Axle Shaft |
