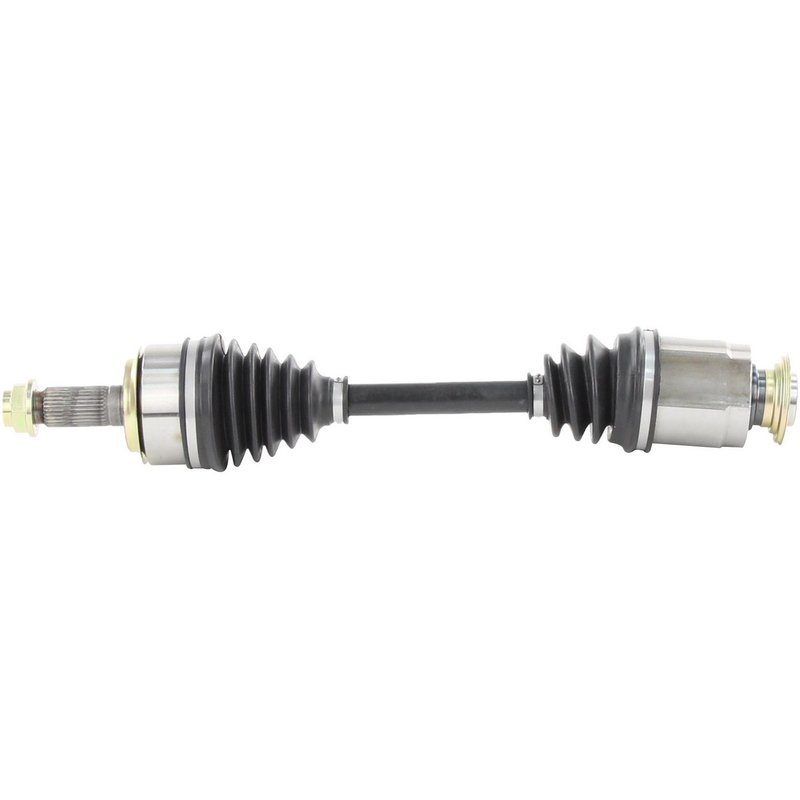

TrakMotive HO-8240 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8240 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27-2T |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.17 |
| Overall Compressed Length (mm) | 563 |
| Product line | CV Axle Shaft |
| Fits | Honda · 5 vehicles |
New replacement part. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Comes with the hardware needed for installation.
Cross-references Cardone New 66-4257, Four Seasons 3947N and TrakMotive HO-8240 for the same application. See all 12.
Honda CR-V Front Right CV Axle Shaft
TrakMotive HO-8240 is a new CV axle shaft for the front right position on select 2007-2011 Honda CR-V models. It is built with a neoprene boot, a female inboard connection, and a conventional outboard joint for direct driveline service on the specified application.
Key Features
- Fits 2007-2011 Honda CR-V, front right
- TrakMotive CV Axle Shaft, part number HO-8240
- New axle assembly with 22.17 in. overall compressed length
- Neoprene boot material for driveline protection
- Female inboard shaft connection with 27-2T inboard splines
- Conventional outboard joint with 30 outboard splines
- Includes axle nut with M26 x 1.5 thread size, 34.6 mm hex size, and stake locking type
- No ABS tone ring included
Product Details
TrakMotive HO-8240 is a front right CV axle shaft for the Honda CR-V, engineered for the 2007-2011 model years listed in the fitment data. The axle uses a female inboard joint and a conventional outboard joint, with a compressed length of 563 mm (22.17 in.) to match the specified application. The included axle nut features a hex head, stake locking design, and M26 x 1.5 thread size. TrakMotive identifies this axle as a new replacement part and notes that ABS axles fit non-ABS applications unless otherwise noted. This part cross-references Cardone New 66-4257 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration from a damaged axle shaft
- Torn boot or grease loss at the CV joint
- Excessive play in the front right driveline assembly
- Noise from a failing axle on a 2007-2011 Honda CR-V
Installation Notes
Verify front right fitment before installation on the 2007-2011 Honda CR-V. Confirm spline count, axle length, and axle nut thread size against the original part. Inspect the hub, seals, and surrounding suspension components during replacement, and follow the vehicle service procedure for axle nut staking and torque specifications.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for driveline components.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2011 | Honda | CR-V | Front Right | CV Axle Shaft |
| 2010 | Honda | CR-V | Front Right | CV Axle Shaft |
| 2009 | Honda | CR-V | Front Right | CV Axle Shaft |
| 2008 | Honda | CR-V | Front Right | CV Axle Shaft |
| 2007 | Honda | CR-V | Front Right | CV Axle Shaft |
