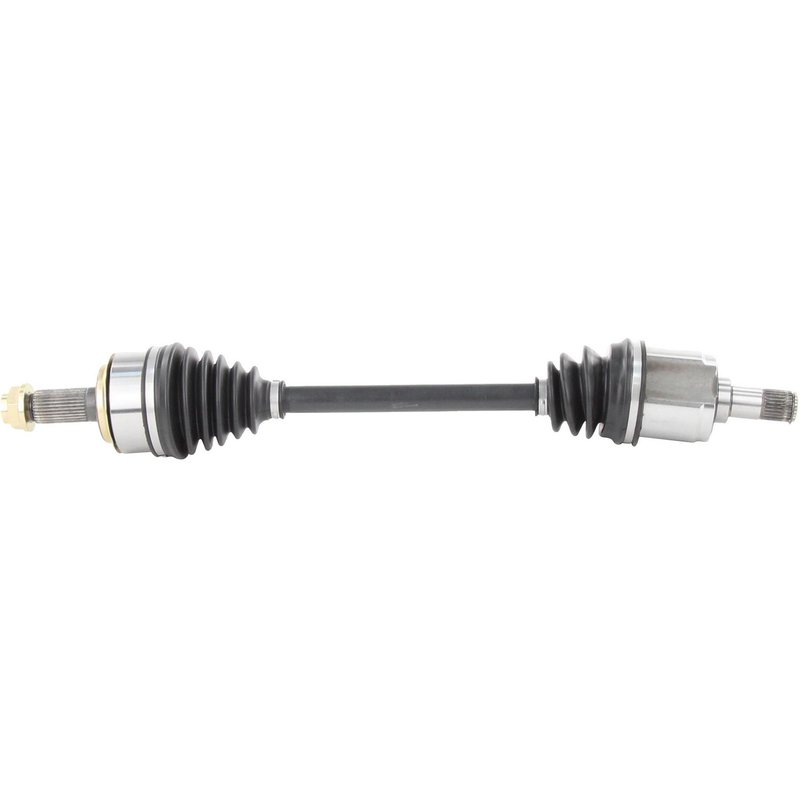

TrakMotive HO-8243 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HO-8243

The TrakMotive CV Axle Shaft HO-8243 is designed for reliable driveline performance in Acura and Honda vehicles, specifically the Accord and TSX models. This new CV axle shaft provides a precise fit and durable construction to maintain smooth power transfer from the transmission to the wheels.

• Compatible with Acura Accord and Honda TSX models
• Includes axle nut with stake locking type for secure installation
• Neoprene boot material for enhanced durability and protection
• Overall compressed length of 26.69 inches (678 mm)
• Hex head axle nut with 1 1/3 inch (34.6 mm) hex size
• Male inboard joint type with 27 splines and conventional outboard joint with 30 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components engineered for direct fitment. This line emphasizes precise spline counts and connection styles to ensure compatibility with specific vehicle drivetrains. The HO-8243 model features a neoprene boot and a stake-type locking axle nut, reflecting the line's attention to durability and secure assembly.

Technical Specifications and Features

The HO-8243 CV axle shaft is a new replacement part designed with a male inboard joint and conventional outboard joint, providing reliable rotational power transfer. The axle nut included is a hex head type measuring 1 inch in height and 1 4/7 inches in length, with an M26*1.5 thread size and stake locking mechanism to prevent loosening. The neoprene boot material offers resistance to wear and environmental factors, extending the service life of the joint. The shaft's overall compressed length is 26.69 inches (678 mm), ensuring proper fitment within the driveline assembly.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Acura Accord and Honda TSX
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses grease leakage caused by torn or degraded CV boots
• Fixes axle shaft failure due to spline wear or joint damage
• Improves driveline stability and power transfer efficiency

Installation Notes and Tips

When installing the TrakMotive HO-8243 CV axle shaft, ensure the stake locking axle nut is properly secured to prevent loosening during operation. Verify the spline counts on both inboard (27 splines) and outboard (30 splines) joints match the vehicle specifications. Use appropriate torque settings for the hex head axle nut (34.6 mm) and inspect the neoprene boot for any damage before installation. Proper alignment and lubrication of the joints will help maintain driveline performance.

Quality Assurance and Warranty

This CV axle shaft is a new, direct replacement part manufactured to meet OEM specifications for Acura and Honda vehicles. The use of durable neoprene boot material and a stake locking axle nut contributes to long-term reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry standards for quality and fitment.
