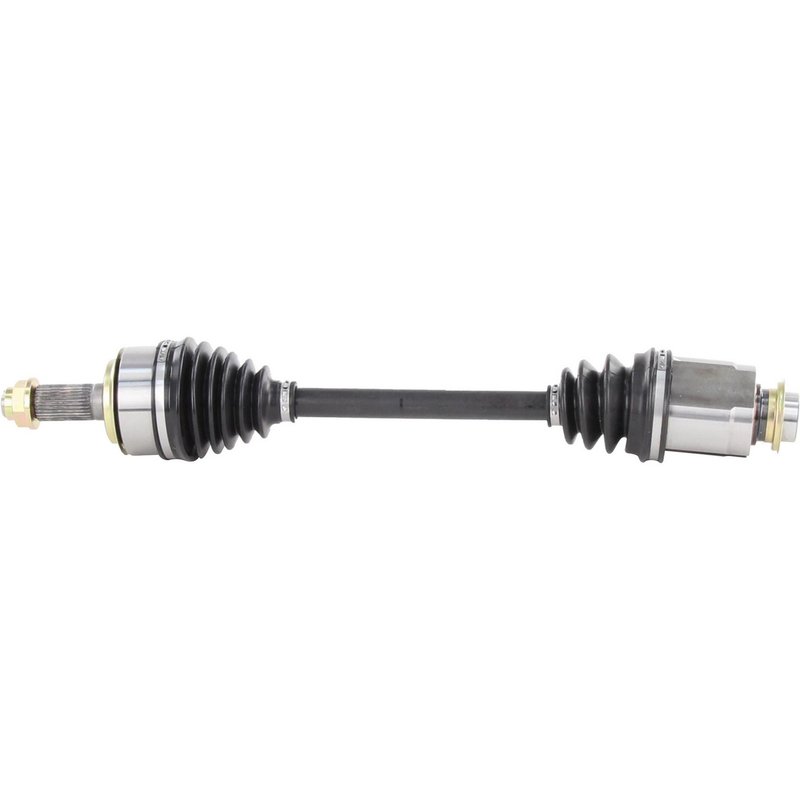

TrakMotive HO-8244 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8244 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27-2T |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.33 |
| Overall Compressed Length (mm) | 618 |
| Product line | CV Axle Shaft |
| Fits | Honda · 5 vehicles |
New CV axle shaft. Built as a direct replacement for driveline and CV component applications.
Neoprene boot. Helps resist wear while keeping the joint protected.
Includes axle nut. Conveniently supplied with the hardware needed for installation.
Cross-references Cardone New 66-4255, TrakMotive HO-8244 and 80-3268 for the same application. See all 17.
Honda Accord Front Right CV Axle Shaft
Restore driveline performance on your 2008-2012 Honda Accord with the TrakMotive HO-8244 CV axle shaft. This new front right axle is built for direct replacement service and is specified for applications with a conventional outboard joint and female inboard connection.
Key Features
- Fits 2008-2012 Honda Accord, front right
- TrakMotive CV Axle Shaft, part number HO-8244
- New axle assembly for driveline service
- Neoprene boot material for joint protection
- Includes axle nut with M26 x 1.5 thread size
- Hex axle nut head with stake locking type
- 27-2T inboard splines and 30 outboard splines
- Overall compressed length: 24.33 in. (618 mm)
Product Details
The TrakMotive CV axle shaft HO-8244 is engineered for the front right position on 2008-2012 Honda Accord models. It uses a female inboard shaft connection and a conventional outboard joint, with a neoprene boot to help protect the CV joints during normal operation. The axle is supplied new and includes the axle nut specified for this application. This part cross-references Cardone New 66-4255 for the same application.
Common Repair Uses
- Front-end vibration during acceleration
- Clicking or popping from the front right axle area during turns
- Worn CV joint noise under load
- Torn boot or grease loss at the axle assembly
- Driveline wear affecting smooth power transfer
Installation Notes
Verify spline count, compressed length, and axle nut thread size before installation. Confirm front right placement on the vehicle and inspect related hub, seal, and suspension components during service. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing.
Quality Assurance
TrakMotive lists this CV axle shaft under a limited lifetime warranty and identifies the product line as ISO 9001:1007 and TS 16949:2009 certified manufacturing.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2012 | Honda | Accord | Automatic | 3.5L | V6 | Front Right | CV Axle Shaft |
| 2011 | Honda | Accord | Automatic | 3.5L | V6 | Front Right | CV Axle Shaft |
| 2010 | Honda | Accord | Automatic | 3.5L | V6 | Front Right | CV Axle Shaft |
| 2009 | Honda | Accord | Automatic | 3.5L | V6 | Front Right | CV Axle Shaft |
| 2008 | Honda | Accord | Automatic | 3.5L | V6 | Front Right | CV Axle Shaft |
