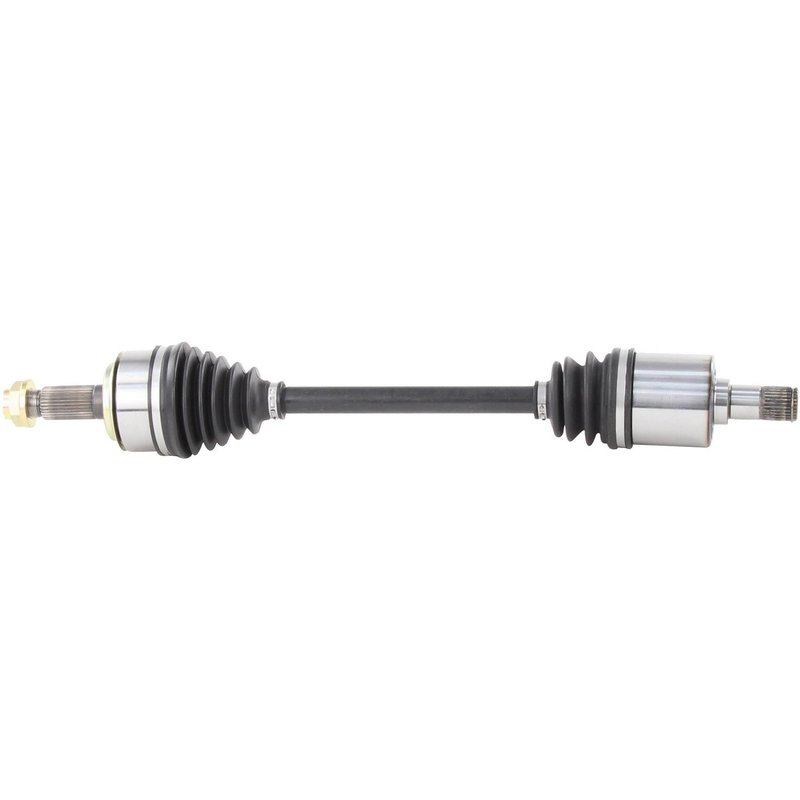

TrakMotive HO-8248 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8248 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.46 |
| Overall Compressed Length (mm) | 672 |
| Product line | CV Axle Shaft |
| Fits | Acura · 4 vehicles |
New replacement part. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot. Helps resist wear while keeping the joint protected and flexible.
Axle nut included. Comes with a hex nut and stake locking type for easier installation.
Cross-references TrakMotive HO-8248, 80-3247 and 4020N for the same application. See all 8.
TrakMotive HO-8248 CV Axle Shaft for Acura RL
TrakMotive HO-8248 is a new CV axle shaft for the front left position on select 2005-2008 Acura RL models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the Acura RL front left axle application.
Key Features
- Fits 2005-2008 Acura RL, front left
- TrakMotive CV Axle Shaft, part number HO-8248
- New axle assembly with 29 inboard splines and 30 outboard splines
- Neoprene boot material for driveline protection
- Includes axle nut with M26 x 1.5 thread size, hex head, and stake locking type
- Overall compressed length: 26.46 in. (672 mm)
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft is engineered for the front left side of the 2005, 2006, 2007, and 2008 Acura RL. The HO-8248 uses a male inboard shaft connection and a conventional outboard joint, with 29 inboard splines and 30 outboard splines for the specified application. TrakMotive positions this axle shaft within its CV Axle Shaft line for driveline and axle replacement service, and the part is backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Restores front left axle function on a 2005-2008 Acura RL
- Addresses clicking or popping noises during turns caused by worn CV joints
- Helps correct vibration from a worn or damaged axle shaft
- Replaces a boot or joint assembly with excessive wear or grease loss
- Supports repair of driveline noise, shudder, or axle play
Installation Notes
Verify spline count, axle length, and axle nut thread size before installation. This axle includes an axle nut with a stake-style locking design; follow the vehicle service procedure for proper torque and staking. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing.
Quality Assurance
TrakMotive HO-8248 is a new replacement CV axle shaft manufactured by an ISO 9001:1007 and TS 16949:2009 certified company. The part is covered by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Acura | RL | Front Left | CV Axle Shaft |
| 2007 | Acura | RL | Front Left | CV Axle Shaft |
| 2006 | Acura | RL | Front Left | CV Axle Shaft |
| 2005 | Acura | RL | Front Left | CV Axle Shaft |
