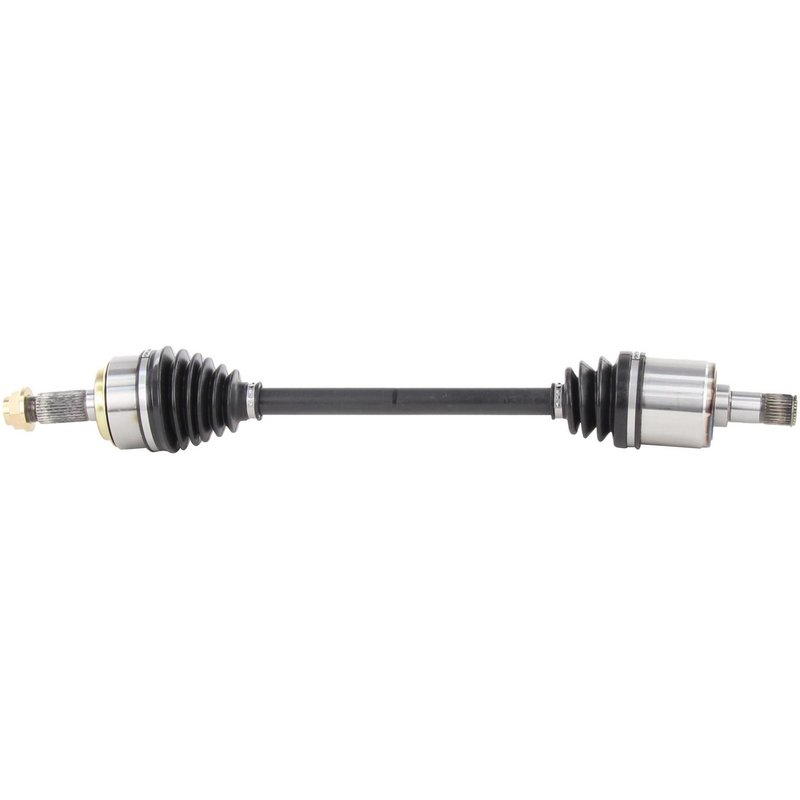

TrakMotive HO-8250 CV Axle Shaft - Front Left

Honda Ridgeline Front Left CV Axle Shaft

TrakMotive HO-8250 is a new front left CV axle shaft for the 2006-2014 Honda Ridgeline. It is built for direct replacement service on the front driveline and uses a neoprene boot, a hex axle nut, and a conventional outboard joint for a straightforward OE-style application.

Key Features

• Fits 2006-2014 Honda Ridgeline, front left
• TrakMotive CV Axle Shaft, part number HO-8250
• New axle assembly with 28.43 in. overall compressed length
• 29 inboard splines and 30 outboard splines
• Neoprene boot material for driveline protection
• Male inboard shaft connection style
• Conventional outboard joint type
• Axle nut included; M26 x 1.5 thread, stake-locking type
• No ABS tone ring included

Product Details

This TrakMotive CV axle shaft is made for the front left position on Honda Ridgeline models from 2006 through 2014. HO-8250 measures 722 mm (28.43 in.) compressed length and uses a male inboard connection with a conventional outboard shaft connection, matching the needs of the listed application. The axle nut is included and specified with a 34.6 mm hex size, 40 mm length, and stake-style locking design. TrakMotive identifies this part as a new unit and notes that ABS axles fit non-ABS applications unless otherwise noted.

TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles and light-duty applications. HO-8250 is a direct-fit option for Honda Ridgeline front axle service when the original shaft is worn, noisy, or damaged.

This part cross-references Cardone Reman 60-4226 for the same application.

Common Problems This Part Can Address

• Clicking or popping during turns from a worn CV joint
• Vibration under acceleration caused by axle wear
• Torn or deteriorated axle boot allowing grease loss
• Excessive driveline play from damaged splines or joints
• Front left axle failure on a Honda Ridgeline

Installation Notes and Tips

Verify the front left position, spline count, and axle nut specifications before installation. Inspect the hub, seals, and surrounding suspension components for wear before fitting the new axle shaft. Because this application uses a stake-locking axle nut, follow the vehicle service procedure for proper tightening and staking.

Quality Assurance

TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and that the company is ISO 9001:1007 and TS 16949:2009 certified. Those certifications support controlled manufacturing and quality management for replacement driveline parts.
