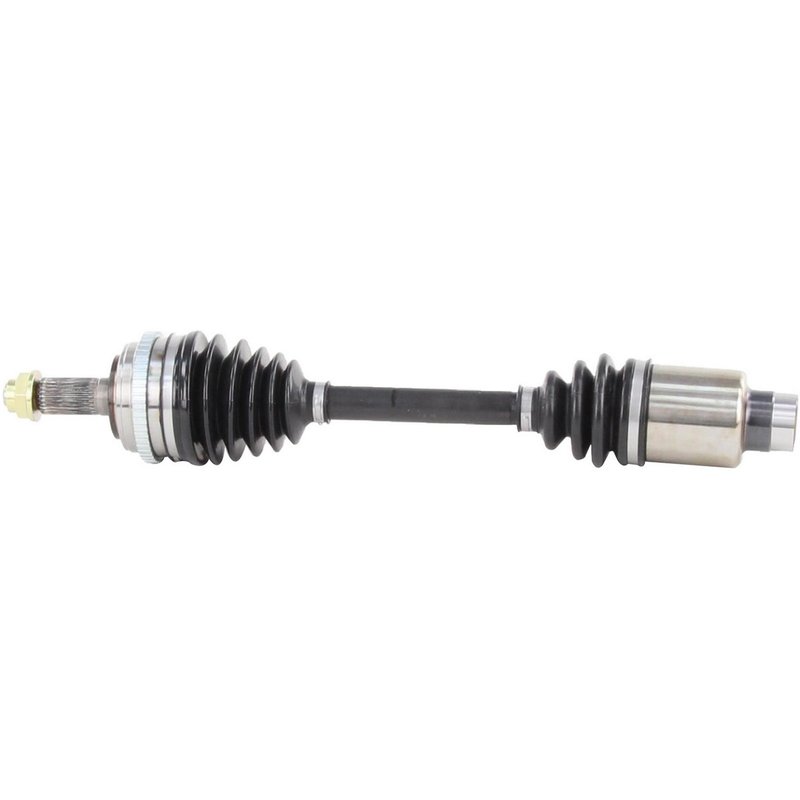

TrakMotive HO-8280 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8280 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27-2T |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 20.83 |
| Overall Compressed Length (mm) | 529 |
| Product line | CV Axle Shaft |
| Fits | Honda · 6 vehicles |
New axle shaft. Fresh replacement part for driveline and CV component service.
Neoprene boot material. Helps resist wear while protecting the joint assembly.
ABS tone ring included. Toothed ring is built in for compatible ABS applications.
Cross-references Cardone New 66-4231, Cardone Reman 60-4231 and TrakMotive HO-8280 for the same application. See all 10.
Honda Civic Front Right CV Axle Shaft
TrakMotive HO-8280 is a new CV axle shaft for the front right position on select 2003-2005 Honda Civic models. It is built for direct driveline replacement on vehicles with the listed fitment and includes the axle nut and ABS tone ring details needed for the application.
Key Features
- Fits 2003-2005 Honda Civic, front right
- TrakMotive CV Axle Shaft, part number HO-8280
- New replacement axle for driveline and axle service
- Neoprene boot material for CV joint protection
- Female inboard joint and spline outboard shaft connection
- Conventional outboard joint type
- ABS tone ring included with 50-tooth toothed ring
- Axle nut included with M22 x 1.5 thread, 31.8 mm hex size, and stake locking type
- Overall compressed length: 20.83 in. (529 mm)
Product Details
TrakMotive HO-8280 is a CV axle shaft for the front right side of the 2003-2005 Honda Civic. The axle is configured with a female inboard connection, a spline-style outboard connection, and a conventional outboard joint design. It also includes a toothed ABS tone ring with 50 teeth, making it a direct-fit driveline component for the specified Civic applications. This part cross-references Cardone New 66-4231 and Cardone Reman 60-4231 for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a torn CV boot
- Noise from the front right driveline area
- ABS-related concerns when the tone ring is damaged or missing
Installation Notes
Verify the vehicle’s front right application, spline count, and axle nut specifications before installation. Confirm ABS and non-ABS configuration details against the vehicle and existing axle, since ABS axles fit non-ABS applications unless otherwise noted. Use the correct axle nut torque procedure and stake the nut as required for the M22 x 1.5 locking design.
Quality Assurance
TrakMotive identifies this axle shaft as a new part and states that its products are backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Submodel | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Honda | Civic | Hybrid | Manual | Front Right | CV Axle Shaft |
| 2005 | Honda | Civic | Hybrid | Automatic CVT | Front Right | CV Axle Shaft |
| 2004 | Honda | Civic | Hybrid | Manual | Front Right | CV Axle Shaft |
| 2004 | Honda | Civic | Hybrid | Automatic CVT | Front Right | CV Axle Shaft |
| 2003 | Honda | Civic | Hybrid | Manual | Front Right | CV Axle Shaft |
| 2003 | Honda | Civic | Hybrid | Automatic CVT | Front Right | CV Axle Shaft |
