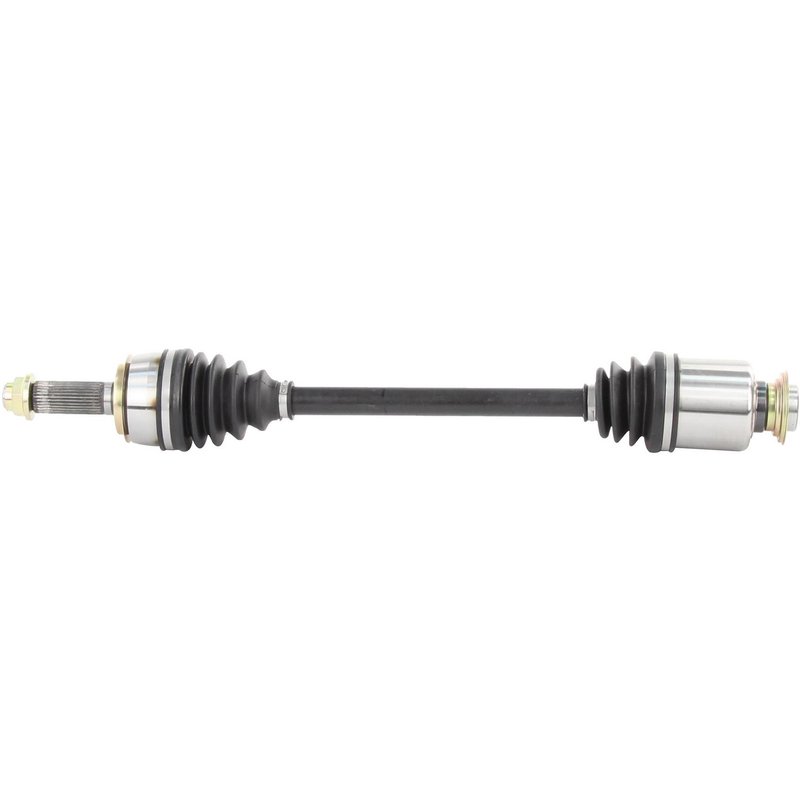

TrakMotive HO-8344 CV Axle Shaft - Front Right
| Brand | TrakMotive HO-8344 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29-2 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 27.36 |
| Overall Compressed Length (mm) | 695 |
| Product line | CV Axle Shaft |
| Fits | Honda · 6 vehicles |
New replacement part. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Comes with the hardware needed for installation.
Cross-references Cardone New 66-4262, Cardone Reman 60-4262 and TrakMotive HO-8344 for the same application. See all 12.
Honda Pilot Front Right CV Axle Shaft
Restore driveline performance with the TrakMotive CV Axle Shaft HO-8344 for the front right position on select Honda Pilot models. This new axle is built for 2009-2011 Honda Pilot applications and includes the axle nut for a more complete replacement.
Key Features
- Direct replacement CV axle shaft for the front right side
- Fits 2009-2011 Honda Pilot, front right
- New construction with a neoprene boot
- Female inboard joint and conventional outboard joint design
- ABS tone ring not included
- Axle nut included with M26 x 1.5 thread size and stake locking type
- Overall compressed length: 27.36 in. (695 mm)
- TrakMotive HO-8344 cross-references Cardone New 66-4262 and Cardone Reman 60-4262 for the same application
Detailed Description
The TrakMotive HO-8344 CV axle shaft is engineered for the front right position on the 2009-2011 Honda Pilot. It features a female inboard connection, a conventional outboard joint, and 29-2 inboard splines with 30 outboard splines for application-specific fitment. The neoprene boot helps protect the joint assembly, while the included axle nut supports a proper service replacement. TrakMotive identifies this axle as a new part, and the company states its products are manufactured under ISO 9001:1007 and TS 16949:2009 certified processes.
Common Repair Uses
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Excessive play or noise from a worn front axle assembly
- Replacement after axle shaft damage or corrosion
Installation Notes and Tips
Verify front right fitment before installation on your Honda Pilot. Confirm axle nut thread size, spline count, and compressed length against the original part to ensure correct application. Because ABS tone ring is not included, compare the vehicle’s original axle configuration before service. Always follow factory torque procedures and replace any worn related components during axle service.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified manufacturing processes for consistent production control.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Honda | Pilot | FWD | Front Right | CV Axle Shaft |
| 2011 | Honda | Pilot | AWD | Front Right | CV Axle Shaft |
| 2010 | Honda | Pilot | FWD | Front Right | CV Axle Shaft |
| 2010 | Honda | Pilot | AWD | Front Right | CV Axle Shaft |
| 2009 | Honda | Pilot | FWD | Front Right | CV Axle Shaft |
| 2009 | Honda | Pilot | AWD | Front Right | CV Axle Shaft |
