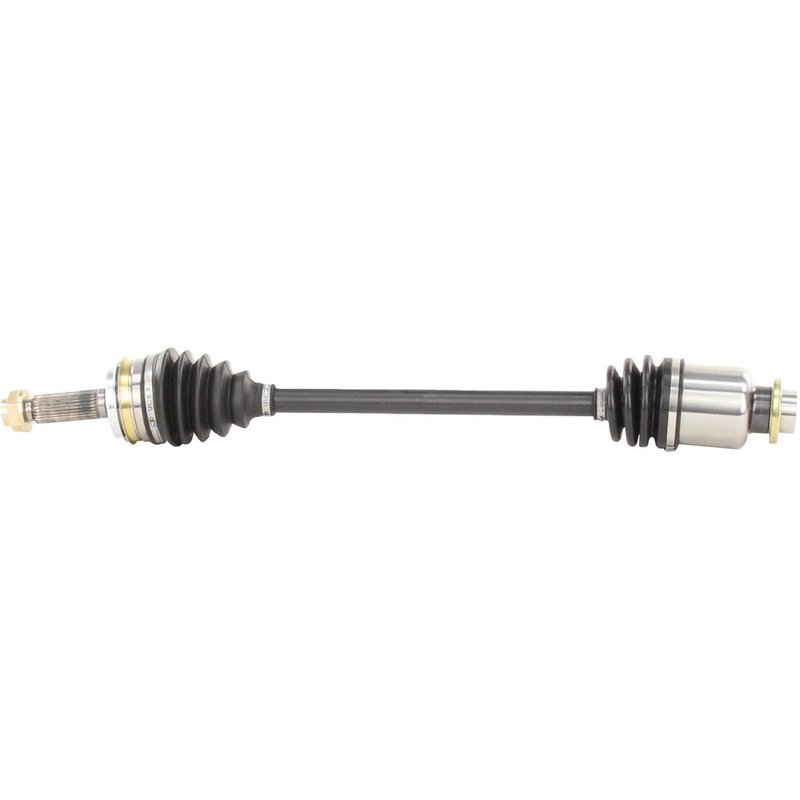

TrakMotive HO-8345 CV Axle Shaft - Rear Right
| Brand | TrakMotive HO-8345 |
|---|---|
| Position | Rear Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29-2 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 28.39 |
| Overall Compressed Length (mm) | 721 |
| Product line | CV Axle Shaft |
| Fits | Honda · 7 vehicles |
New CV axle shaft. Fresh replacement part for driveline service.
Neoprene boot material. Helps resist wear in demanding conditions.
Axle nut included. Conveniently supplied for a complete install.
Cross-references Cardone Reman 60-4282, TrakMotive HO-8345 and 42310SZAA01 for the same application. See all 5.
TrakMotive HO-8345 CV Axle Shaft for Honda Pilot
TrakMotive HO-8345 is a new CV axle shaft for the rear right position on select 2009-2015 Honda Pilot models. Built for driveline service on the Honda Pilot, this axle includes the axle nut and uses a neoprene boot for durable joint protection.
Key Features
- Fits 2009-2015 Honda Pilot, rear right
- New CV axle shaft for driveline and axle repair
- Neoprene boot material for joint coverage
- Female inboard shaft connection style
- Conventional outboard joint and shaft connection style
- Axle nut included with M24 x 1.5 thread size
- No ABS tone ring included
- Overall compressed length: 28.39 in. (721 mm)
Product Details
This TrakMotive CV axle shaft, part number HO-8345, is specified for the rear right side of the Honda Pilot across the 2009-2015 model years. It features 29-2 inboard splines and 28 outboard splines, a hex axle nut head type, and a stake-style locking nut design. The axle is built as a new replacement and is listed with no ABS tone ring included. TrakMotive HO-8345 is also referenced by OE part numbers 42310SZAA01, 42310SZAA02, and 42310SZAA03 for the same application.
Common Repair Uses
- Restores drivetrain connection at the rear right wheel
- Addresses clicking, vibration, or binding from a worn CV axle
- Replaces a damaged axle boot or failed axle assembly
- Supports repair after spline, joint, or shaft wear
- Helps correct axle-related noise during acceleration or turning
Installation Notes
Verify rear right fitment before ordering, since this axle is specific to 2009-2015 Honda Pilot applications. Confirm spline count, axle nut thread size, and overall compressed length during installation. The axle nut is included; use the correct stake-style tightening procedure and follow vehicle service specifications for torque and final assembly.
Quality Assurance
TrakMotive lists this CV axle shaft under a limited lifetime warranty and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2015 | Honda | Pilot | AWD | Rear Right | CV Axle Shaft |
| 2014 | Honda | Pilot | AWD | Rear Right | CV Axle Shaft |
| 2013 | Honda | Pilot | AWD | Rear Right | CV Axle Shaft |
| 2012 | Honda | Pilot | AWD | Rear Right | CV Axle Shaft |
| 2011 | Honda | Pilot | AWD | Rear Right | CV Axle Shaft |
| 2010 | Honda | Pilot | AWD | Rear Right | CV Axle Shaft |
| 2009 | Honda | Pilot | AWD | Rear Right | CV Axle Shaft |
