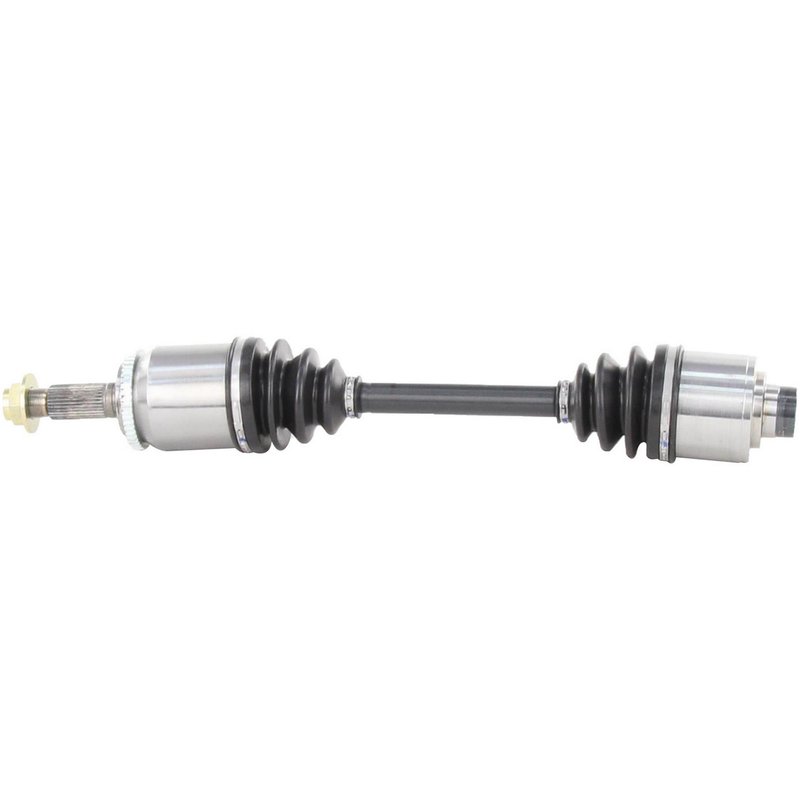

TrakMotive HO-8362 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft HO-8362 for Acura NSX

The TrakMotive CV Axle Shaft HO-8362 is engineered specifically for the Acura NSX, providing reliable driveline performance. This new CV axle shaft is designed to meet precise fitment requirements and ensure smooth power transfer from the transmission to the wheels.

• Compatible with Acura NSX models
• Includes a neoprene boot for durability and protection
• Equipped with a 50-tooth ABS ring and included tone ring
• Hex head axle nut with stake locking type included
• Overall compressed length of 26.5 inches (673 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed for precise fit and function. This line emphasizes durability with features such as neoprene boots and integrated ABS tone rings, ensuring compatibility with vehicle ABS systems. The HO-8362 model exemplifies this approach by combining robust materials and exact specifications tailored for the Acura NSX.

Technical Specifications and Features

This CV axle shaft features a female inboard joint type with 31 splines and a conventional outboard joint with 30 splines, ensuring secure shaft connections. The included ABS ring has 50 teeth and a toothed design, with the tone ring included to maintain accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/3 inches (34.6 mm) across flats, 1 inch (23 mm) in height, and 1 4/7 inches (40 mm) in length, with an M26*1.5 thread size and stake locking mechanism for secure installation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Acura NSX
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HO-8362, verify compatibility with your Acura NSX model year. Use proper torque specifications for the M26*1.5 axle nut and ensure the stake locking type is correctly engaged to prevent loosening. Inspect the neoprene boot for any damage during installation to maintain joint protection. It is recommended to replace axle nuts with the included new hardware to ensure secure fitment.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HO-8362 is a new, not remanufactured, component designed to meet OEM standards for fit and function. The inclusion of a neoprene boot and ABS tone ring supports long-term durability and sensor compatibility. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
