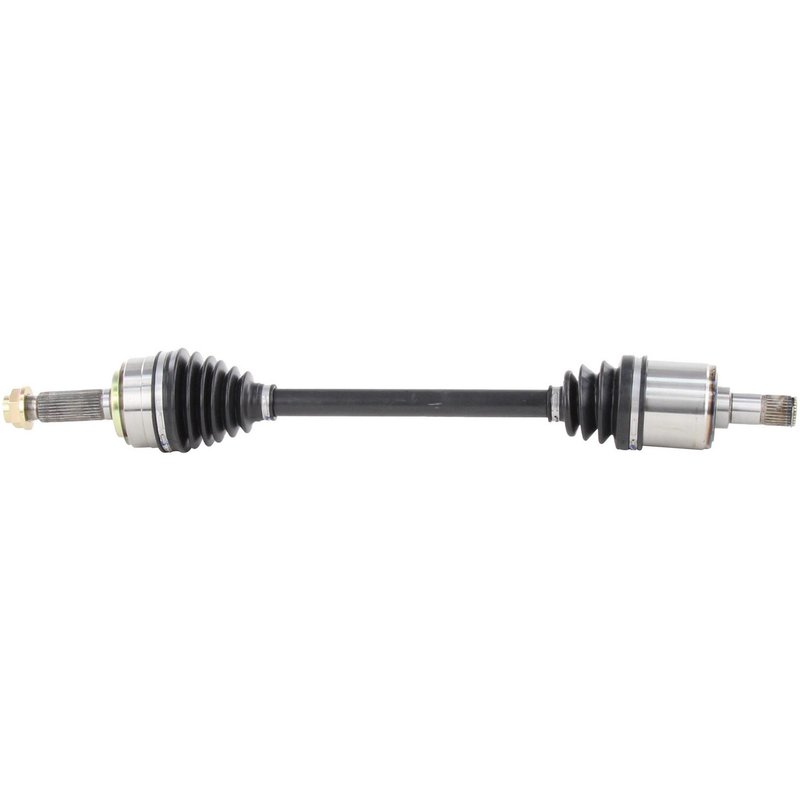

TrakMotive HO-8402 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HO-8402 for Acura MDX

The TrakMotive CV Axle Shaft HO-8402 is designed specifically for Acura MDX models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Acura MDX vehicles
• Includes axle nut with stake locking type
• Neoprene boot material for enhanced durability
• Hex head axle nut measuring 1 1/3 inches (34.6 mm)
• Overall compressed length of 28.9 inches (734 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components engineered for precise fit and function. This line includes new CV axle shafts built to meet OEM specifications, featuring durable neoprene boots and reliable joint designs. The HO-8402 model exemplifies this line by offering a male inboard joint and conventional outboard joint, ensuring smooth power transfer and long service life.

Technical Specifications and Features

The HO-8402 CV axle shaft features a neoprene boot that resists wear and environmental damage. It includes a hex head axle nut with a stake locking type to secure the assembly firmly. The axle nut measures 1 inch in height (23 mm) and 1 4/7 inches (40 mm) in length, with an M26x1.5 thread size. The inboard joint is a male type with 29 splines, while the outboard joint is conventional with 30 splines. The overall compressed length of the shaft is 28.9 inches (734 mm), designed to fit Acura MDX driveline configurations precisely.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Acura MDX
• Resolves clicking or popping noises during turns
• Fixes vibration issues caused by axle shaft imbalance
• Addresses grease leakage from torn or damaged boots
• Restores driveline stability and smooth power delivery

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HO-8402, ensure the axle nut is properly torqued to manufacturer specifications and secured using the stake locking method. Inspect the neoprene boot for any damage before installation. Proper alignment of the male inboard joint and conventional outboard joint is critical for optimal driveline performance. It is recommended to use appropriate tools for hex head axle nut removal and installation to avoid damage.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive provides quality assurance through rigorous manufacturing processes. While specific warranty details are not provided, the product is designed for durability and reliable performance in Acura MDX vehicles.
