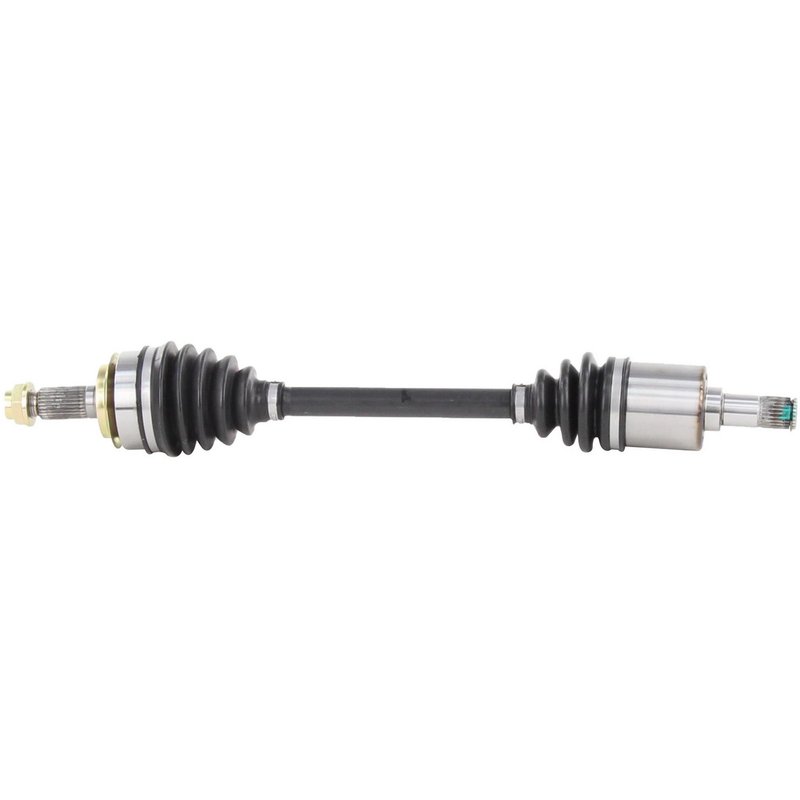

TrakMotive HO-8410 CV Axle Shaft - Front Left

Honda Civic Front Left CV Axle Shaft

Restore driveline performance with this TrakMotive CV axle shaft for the front left position on select Honda Civic models. TrakMotive HO-8410 is a new axle assembly built for direct replacement service on 2012-2015 Honda Civic applications.

The TrakMotive CV Axle Shaft line focuses on replacement driveline components with application-specific fitment and OE-style construction details. HO-8410 follows that approach with the correct spline counts, axle nut specification, and compressed length for the listed Civic fitment.

Key Features

• Brand: TrakMotive
• Part number: HO-8410
• Front left CV axle shaft for 2012-2015 Honda Civic
• New replacement axle shaft
• Inboard joint type: male
• Outboard joint type: conventional
• Boot material: neoprene
• Axle nut included with stake locking type
• Axle nut thread size: M22 x 1.5
• Overall compressed length: 24.11 in. (612.5 mm)
• 25 inboard splines and 26 outboard splines
• ABS tone ring not included

Detailed Description

TrakMotive HO-8410 is a front left CV axle shaft for the Honda Civic, engineered for 2012-2015 model years. It uses a male inboard connection, a conventional outboard joint, and a neoprene boot to support consistent driveline operation in the specified application. The axle nut is included and uses an M22 x 1.5 thread with a stake-style locking design. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Use HO-8410 when replacing a worn or damaged front left axle on a 2012-2015 Honda Civic and when the vehicle calls for the listed spline counts and compressed length. The part number HO-8410 is also useful for buyers searching for a Honda Civic front left CV axle shaft replacement with direct-fit dimensions.

What It Helps Fix

• Clicking or popping during turns from a worn CV joint
• Vibration during acceleration caused by axle wear
• Grease leakage from a damaged axle boot
• Noise from a failing front left driveline shaft
• Loss of smooth power transfer to the wheel

Installation Notes and Tips

Confirm front left fitment before ordering and verify axle nut thread size, spline counts, and compressed length against the vehicle’s original part. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring. Use proper torque procedures and follow the vehicle service manual during installation.

Quality Assurance

TrakMotive states this axle shaft is backed by a limited lifetime warranty. The manufacturer also identifies its facility as ISO 9001:1007 and TS 16949:2009 certified, supporting controlled production standards for driveline replacement parts.
