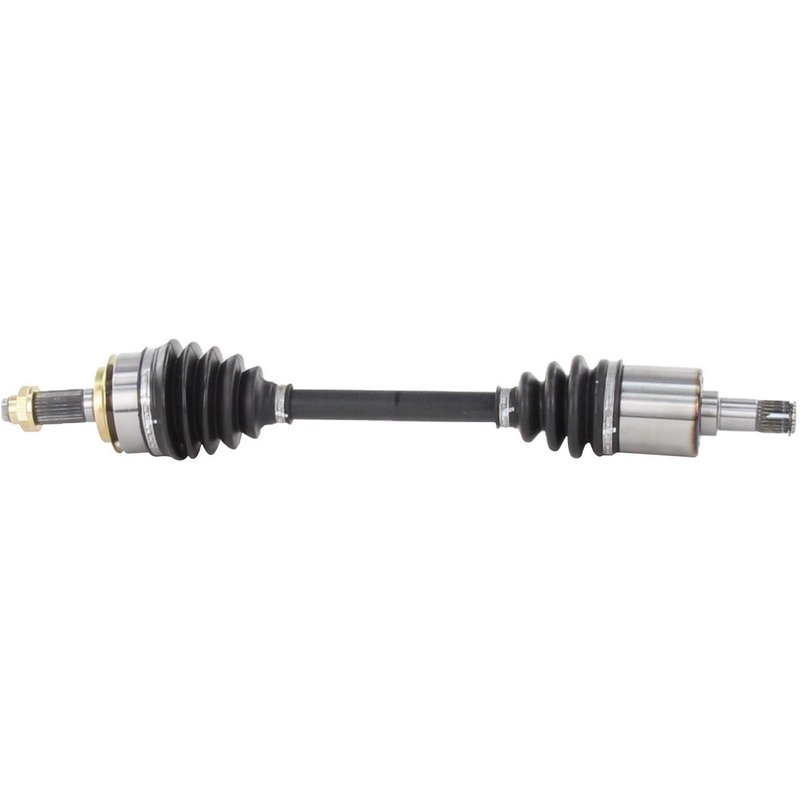

TrakMotive HO-8414 CV Axle Shaft - Front Left
| Brand | TrakMotive HO-8414 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.33 |
| Overall Compressed Length (mm) | 592.5 |
| Product line | CV Axle Shaft |
| Fits | Acura and Honda · 2 vehicles |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot. Helps resist wear and keep grease contained.
Axle nut included. Ready for a complete installation.
Cross-references TrakMotive HO-8414, 44306TR2A50 and 44306TR2A51 for the same application. See all 6.
CV Axle Shaft for Honda Civic and Acura ILX
TrakMotive HO-8414 is a new CV axle shaft built for front left applications on select Honda and Acura vehicles. It is engineered with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline replacement service.
This CV axle shaft fits 2012 Honda Civic, front left, and 2013 Acura ILX, front left. It includes the axle nut and is built to match the specified spline and length requirements for the listed applications.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HO-8414
- New replacement axle shaft
- Front left position
- Neoprene boot material
- Male inboard shaft connection style
- Conventional outboard shaft connection style
- Axle nut included with M22 x 1.5 thread size
- 31.8 mm axle nut hex size
- 25 inboard splines and 26 outboard splines
- Overall compressed length: 23.33 in (592.5 mm)
Product Details
TrakMotive HO-8414 is part of the CV Axle Shaft line for driveline and axle service. The axle is configured for the front left side and uses a male inboard joint with a conventional outboard joint, making it a direct-fit replacement for the listed Honda Civic and Acura ILX applications. The axle nut is included, and the unit is built to the stated spline count and compressed length for proper fitment. This part cross-references OE-style numbers such as 44306TR2A50 and HO10593 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration during acceleration caused by a damaged axle shaft
- Torn or leaking CV boot conditions that expose the joint to contamination
- Excessive driveline play from worn splines or joint wear
- Front axle failure on the driver-side front position
Installation Notes and Tips
Verify the vehicle’s front left application, spline count, axle nut thread size, and compressed length before installation. Inspect the hub, seals, and surrounding suspension components for wear, and replace any damaged hardware or seals as needed during axle service. Confirm ABS and non-ABS requirements against the vehicle build, since ABS axles can fit non-ABS applications unless otherwise noted.
Quality Assurance
TrakMotive states that this axle shaft is produced by an ISO 9001:1007 and TS 16949:2009 certified company. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2013 | Acura | ILX | Hybrid | — | — | — | Front Left | CV Axle Shaft |
| 2012 | Honda | Civic | Hybrid | Automatic CVT | 1.5L | L4 | Front Left | CV Axle Shaft |
